Disassembly Diagram
3-1
3-1

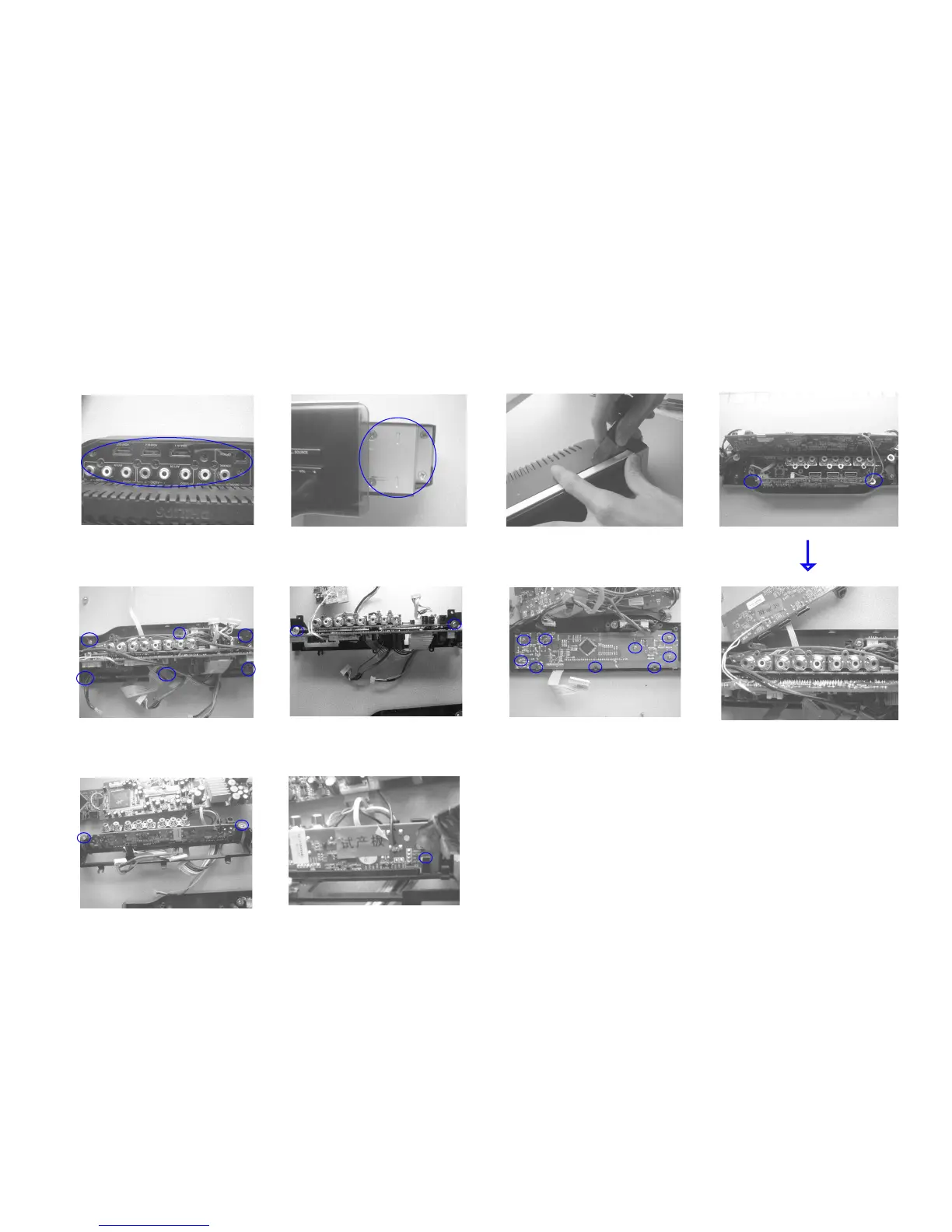

1.Loosen these Screws 2.Loosen these Screws(both sides) 3.Use thin screwdriver to unclench clasp
9.unclench clasp
5.Loosen these screws to remove Main Board
7.Loosen these screws to remove Display Board
6.Loosen these screws to remove Decoder Board
8.Loosen these screws to remove Output Board
4.Loosen these screws to remove HDMI board
