Philips HTB3510 Service Manual

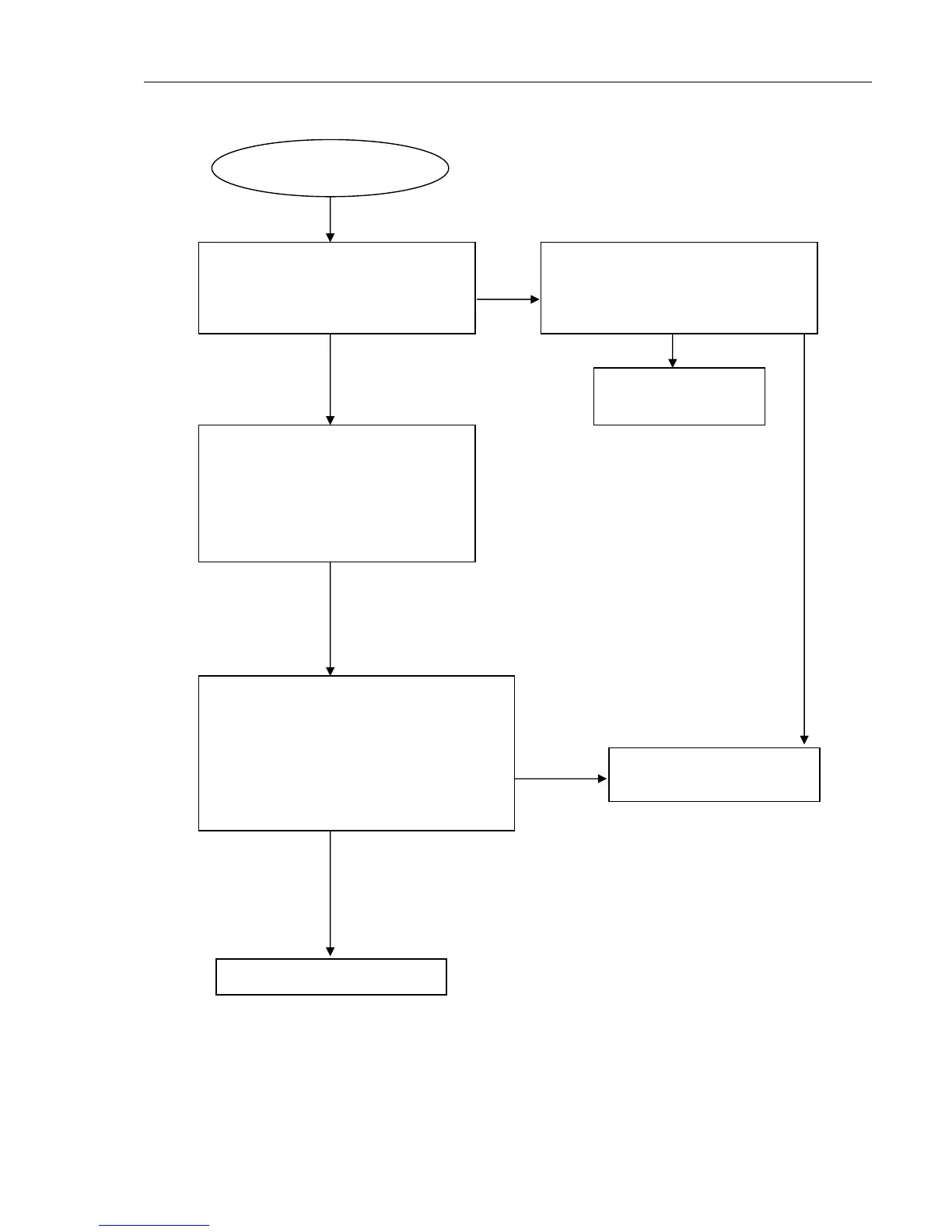

5-4 Trouble shooting Chart
No audio output
No audio output
Go
No
Yes
Yes
Yes
Replace Amplifier Board
No
Replace U8 on Main Board or
replace Main Board
Yes
Refer to CON502 on
Power Board
No
Check voltage +34V for whether normal or
not at on Amplifier Board
Check the 24Pin FFC connection XP13 on
Main Board and XP1 on Amplifier Board
whether right or not between Main Board
and Amplifier Board
Check the control signal whether right or
not at the U8 Pin6, Pin7 on Main Board
and the signal at the XP13 Pin1,2,3,4,5,7
Check XP4 Pin1 5V on Main Board
whether normal or not

Philips HTB3510 Specifications

General

Number of satellite speakers	4
Satellite speakers RMS power	532 W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker woofer diameter (imperial)	3 \
Center speaker type	1-way
Subwoofer type	Passive subwoofer
Subwoofer frequency range	20 - 150 Hz
Subwoofer driver diameter (imperial)	1 \
FM radio	Yes
Supported radio bands	FM
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	105 W
MP3 bit rates	32 - 320 Kbit/s
Audio decoders	DTS, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
RMS rated power	1000 W
Audio output channels	5.1 channels
Audio formats supported	AAC, FLAC, MKA, MP3, OGG, WAV, WMA
Total Harmonic Distortion (THD)	30 %
Package depth	327 mm
Package width	394 mm
Package height	596 mm
Package weight	11220 g
Built-in HDD	No
Channels quantity	40 channels
Image formats supported	GIF, JPG, PNG
Disc types supported	BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	SVCD, VCD
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Video formats supported	AVCHD, AVI, DIVX, DIVX HD, H.264, ISO, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG, WMV, WMV9
Product color	Black
Playback modes	Rotation, Zoom
Wi-Fi	-
Consumer Electronics Control (CEC)	EasyLink
Cables included	AC
HDMI in	0
USB version	2.0
HDMI version	1.4
Number of HDMI outputs	1

Weight and Dimensions

Main unit weight	266 g
Subwoofer weight	3660 g
Center speaker weight	650 g
Main unit dimensions (WxDxH)	435 x 286.5 x 56.3 mm
Subwoofer dimensions (WxDxH)	178 x 343 x 300 mm
Front speaker dimensions (WxDxH)	90 x 82 x 185 mm
Center speaker dimensions (WxDxH)	223 x 80 x 100 mm
