Philips HTB3510 Service Manual

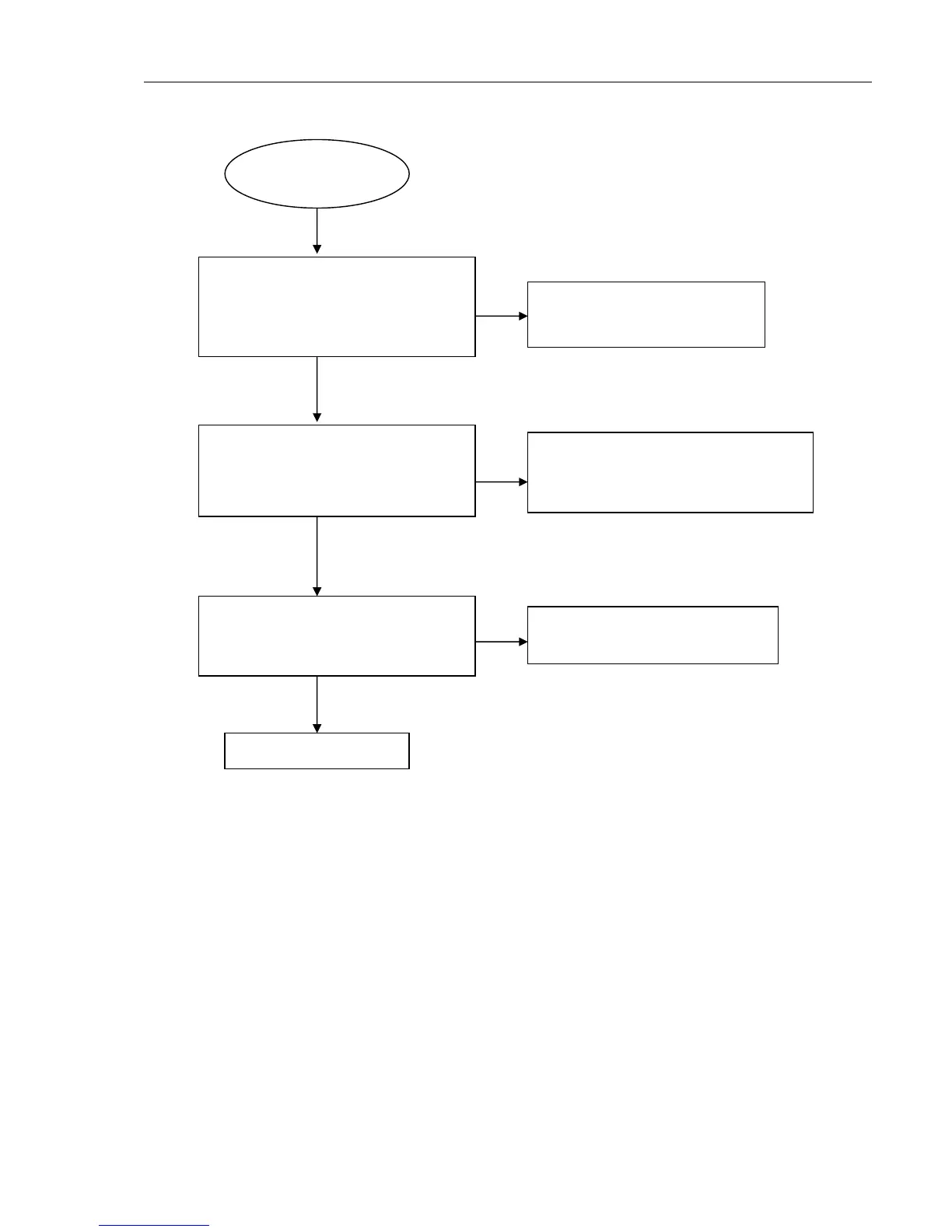

5-11 Trouble shooting Chart
Karaoke in does not work
Karaoke in does
not work
Go
No
Refer to Main Board XP9
Yes
Check the cable between XP9 and XP15
No
Replace U18
Check Main Board U26
Yes
Yes
No
Check signal at XP15 PIN18:MIC_in
signal from front board normal or not
Check Main Board U18 74HC4052 PIN5,
PIN14 L/R signal input right or not
Check U18 74HC4052 whether broken
or
not

Philips HTB3510 Specifications

General

Number of satellite speakers	4
Satellite speakers RMS power	532 W
Satellite speaker frequency range	150 - 20000 Hz
Satellite speaker woofer diameter (imperial)	3 \
Center speaker type	1-way
Subwoofer type	Passive subwoofer
Subwoofer frequency range	20 - 150 Hz
Subwoofer driver diameter (imperial)	1 \
FM radio	Yes
Supported radio bands	FM
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	105 W
MP3 bit rates	32 - 320 Kbit/s
Audio decoders	DTS, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
RMS rated power	1000 W
Audio output channels	5.1 channels
Audio formats supported	AAC, FLAC, MKA, MP3, OGG, WAV, WMA
Total Harmonic Distortion (THD)	30 %
Package depth	327 mm
Package width	394 mm
Package height	596 mm
Package weight	11220 g
Built-in HDD	No
Channels quantity	40 channels
Image formats supported	GIF, JPG, PNG
Disc types supported	BD, BD-R, BD-RE, CD, CD-R, CD-RW, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Playback disc formats	SVCD, VCD
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Video formats supported	AVCHD, AVI, DIVX, DIVX HD, H.264, ISO, MP4, MPEG, MPEG1, MPEG2, MPEG4, MPG, WMV, WMV9
Product color	Black
Playback modes	Rotation, Zoom
Wi-Fi	-
Consumer Electronics Control (CEC)	EasyLink
Cables included	AC
HDMI in	0
USB version	2.0
HDMI version	1.4
Number of HDMI outputs	1

Weight and Dimensions

Main unit weight	266 g
Subwoofer weight	3660 g
Center speaker weight	650 g
Main unit dimensions (WxDxH)	435 x 286.5 x 56.3 mm
Subwoofer dimensions (WxDxH)	178 x 343 x 300 mm
Front speaker dimensions (WxDxH)	90 x 82 x 185 mm
Center speaker dimensions (WxDxH)	223 x 80 x 100 mm
