7
Side connectors
a (USB)
Audio, video or picture input from a USB
storage device.
b MP3 LINK
Audio input from an MP3 player.
Connect to the TV
Connect your home theater directly to a TV
through one of the following connectors (from
highest to basic quality video):
a HDMI
b Composite video
Option 1: Connect to the TV through
HDMI
Note
• If the HDTV has a DVI connector, connect
using an HDMI/DVI adapter.
• If the TV supports EasyLink HDMI CEC,
control the home theater and TV with one
remote control (see ‘Use Philips EasyLink’ on
page 14).
4 Connect your home
theater
This section helps you connect your home theater
to a TV and other devices. The basic connections of
the home theater with its accessories are provided
in the Quick Start. For a comprehensive interactive
guide, see www.connectivityguide.philips.com.
Note
• Refer to the type plate at the back or bottom of
the product for identication and supply ratings.
• Before you make or change any connections,
ensure that all devices are disconnected from
the power outlet.

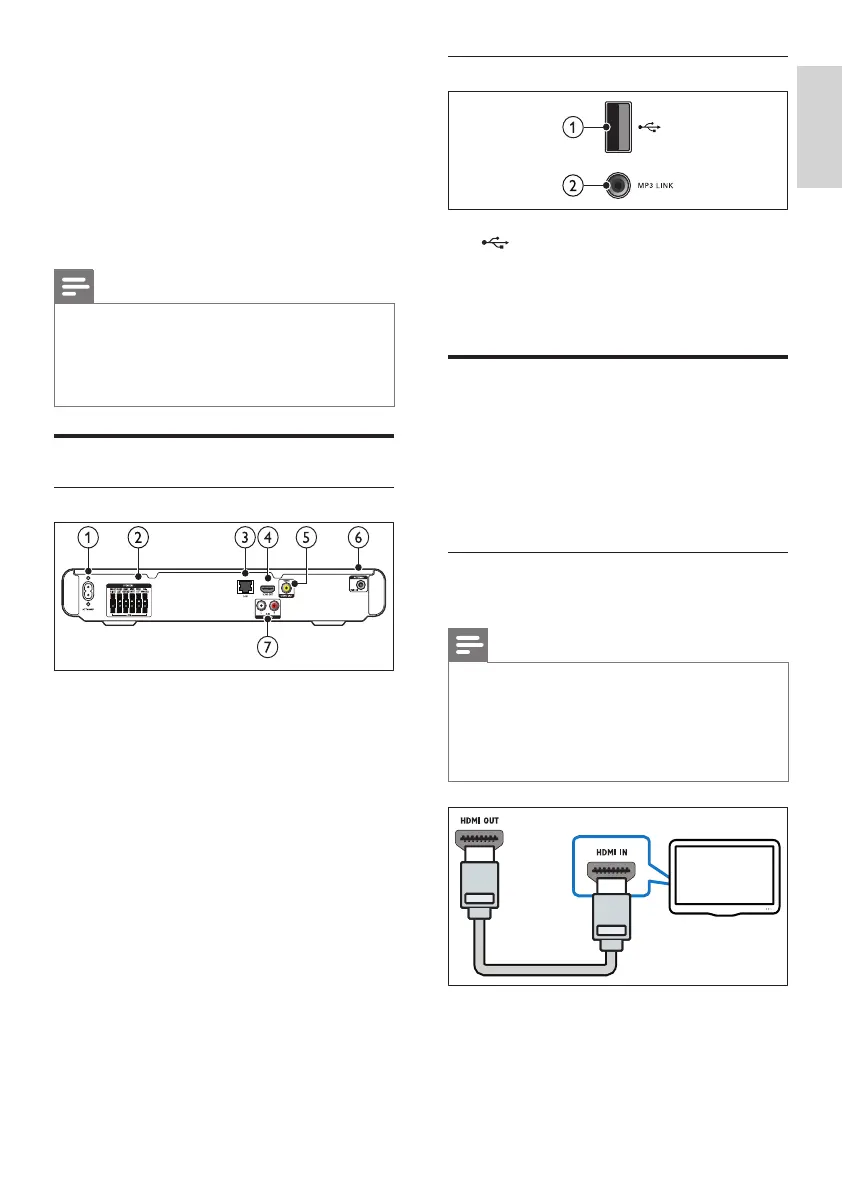

Connectors
Back connectors
a AC MAINS~
Connects to the power supply.
b SPEAKERS
Connects to the supplied speakers and
subwoofer.
c LAN
Connects to the LAN input on a broadband
modem or router.
d HDMI OUT
Connects to the HDMI input on the TV.
e VIDEO OUT
Connects to the composite video input on
the TV.
f FM ANTENNA
Connects the FM antenna for radio
reception.
g AUDIO IN
Connects to the analog audio output on the
TV or an analog device.
En glish
