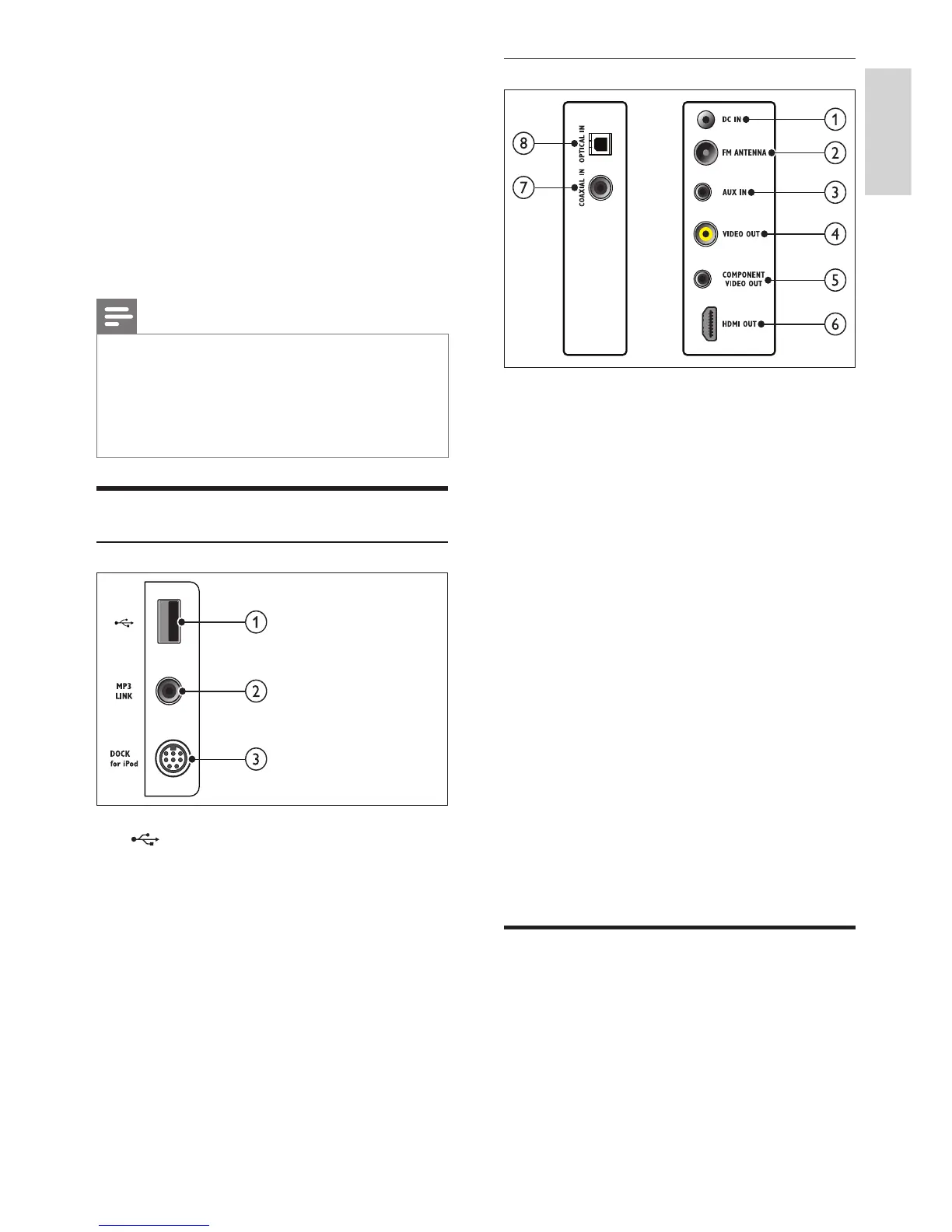

Back connectors
a DC IN
Connects to the AC-DC adapter. (Model:
PHILIPS G721DA-270250)
b FM ANTENNA
Connects the FM antenna for radio
reception.
c AUX IN
Connects to the analog audio output on the
TV or an analog device.
d VIDEO OUT
Connects to the composite video input on
the TV.
e COMPONENT VIDEO OUT
Connects to the component video input on
the TV.
f HDMI OUT
Connects to the HDMI input on the TV.
g COAXIAL IN
Connects to the coaxial audio output on
the TV or a digital device.
h OPTICAL IN
Connects to the optical audio output on
the TV or a digital device.
Connect to the TV
Connect your home theater directly to a TV
through one of the following connectors (from
highest to basic quality video):
a HDMI
b Component video
c Composite video
4 Connect your home
theater
This section helps you connect your home theater
to a TV and other devices. The basic connections
of the home theater with its accessories are
provided in the Quick Start. For a comprehensive
interactive guide, see www.connectivityguide.
philips.com.
Note
Refer to the type plate at the back or bottom •
of the product for identication and supply
ratings.
Before you make or change any connections,
•
ensure that all devices are disconnected from
the power outlet.
Connectors
Side connectors
a (USB)
Audio, video or picture input from a USB
storage device.
b MP3 LINK
Audio input from an MP3 player.
c DOCK for iPod
Connects to a Philips Dock for iPod/iPhone.
(Model:
PHILIPS DCK3060, sold separately)
