A General Description of the IntelliVue Smart-hopping Core Access Point
IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 1-3
A General Description of the IntelliVue Smart-hopping Core Access Point
The IntelliVue Smart-hopping Core Access Point (AP), Model ITS4843B, ITS4843C,
and ITS4843D (Radiohead) (Figure 1-2), provides an air-link to transmit and receive
data between IntelliVue Smart-hopping IntelliVue Patient Monitors and the Philips
IntelliVue Information Center via the IntelliVue Smart-hopping infrastructure.

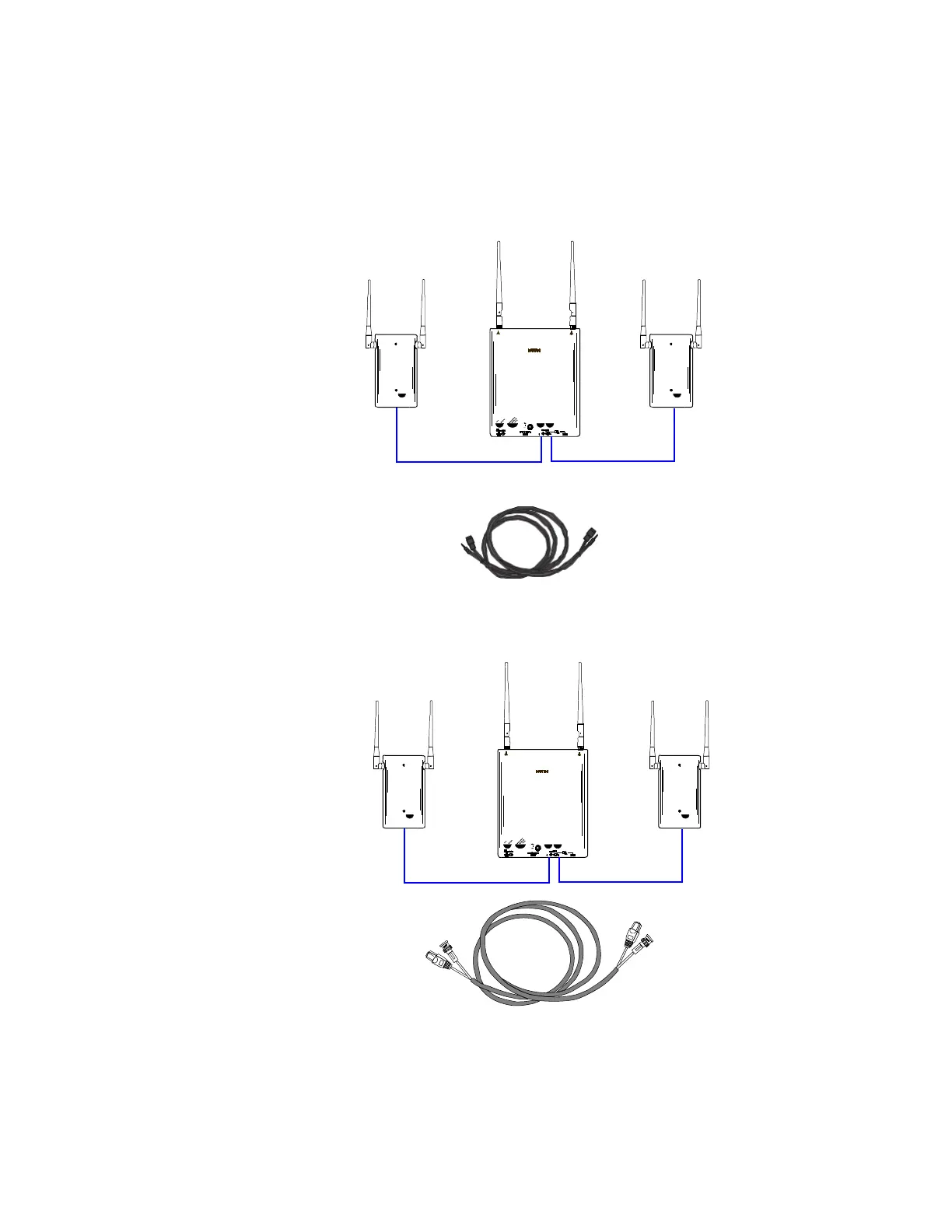

Figure 1-2: IntelliVue Smart-hopping Core Access Point
Core AP
Remote
Antenna
Remote
Antenna
74 ft. UTP and Coaxial
Cable Bundle
ITS4843D IntelliVue Smart-hopping Core Access Point with ITS4846B Remote Antennas
ITS4843B/C IntelliVue Smart-hopping Core Access Point with ITS4846A Remote Antennas
Core AP
Remote
Antenna
Remote
Antenna
74 ft. Fiber and Ferrule
Cable Bundle
