Chapter 1: Overview
Management Interfaces
The Access Point supports the full range of management interfaces via the
IntelliVue Smart-hopping Access Point Controller (APC). These interfaces also
enable you to view the status of the Access Point including the following
information:
• System configuration such as firmware version
• Connection information such as numbers of packets received and transmitted,
and number of errors
• Wave data information such as total number of seconds of data sent and lost
The AP statistics can be read by remote devices (e.g., an IntelliVue Database
Server), using the Scaleable Node Address Protocol (SNAP).
The following status items can be displayed using the APC web interface:
•AP Name
• Physical Address
• Partnered AP Controller
•IP Address
•Subnet Mask
• Default Gateway
•AP Type
Connectors and Status Indicators (ITS4834D)
Figure 1-3 shows the ITS4843D and Figure 1-4 shows the ITS4843B/C controls and
connectors on the 1.4 GHz IntelliVue Smart-hopping Core AP and Remote Antenna

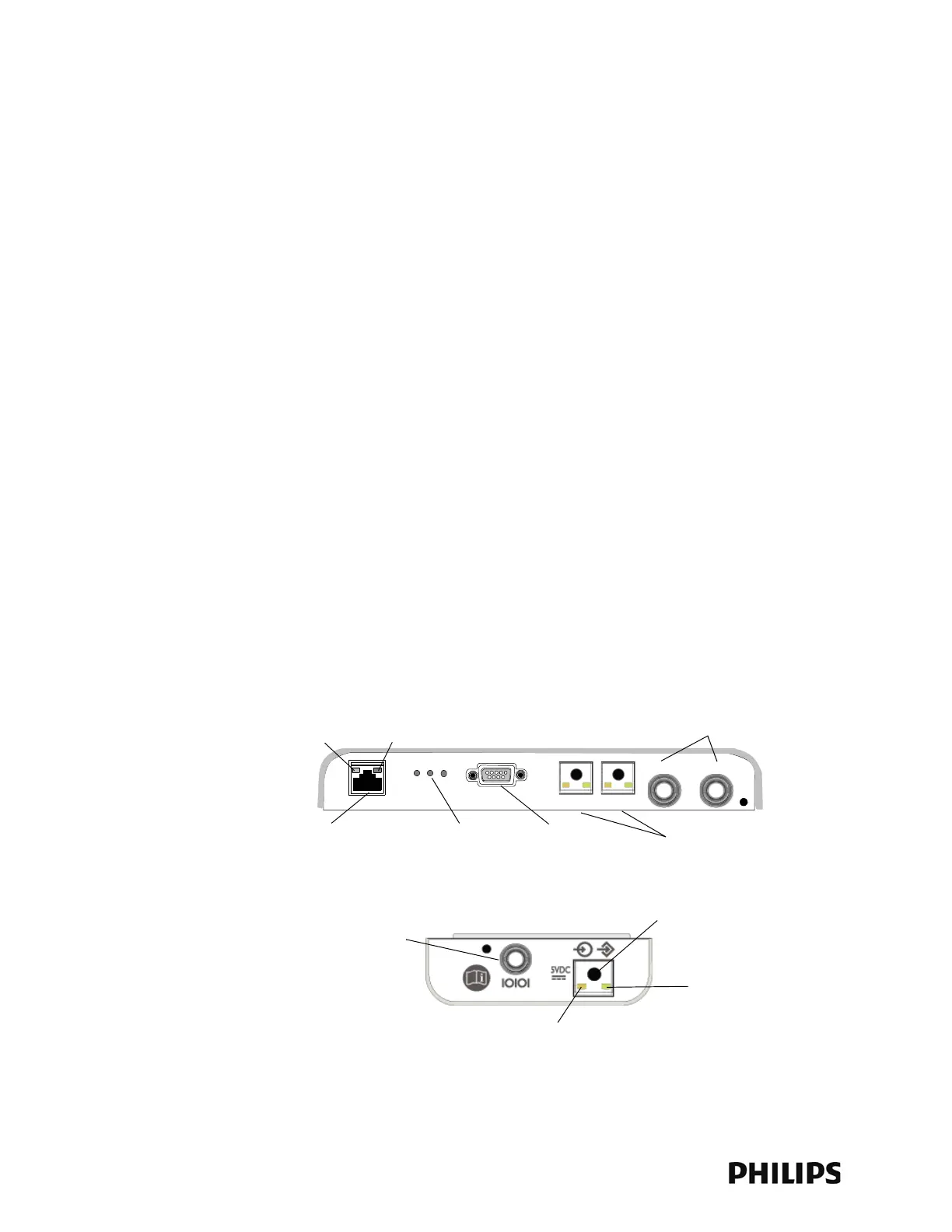

Figure 1-3: ITS4843D 1.4 GHz IntelliVue Smart-hopping Core AP and Remote Antenna
Controls and Connectors
Ethernet Interface to
IntelliVue Smart-hopping
Sync Unit
IntelliVue Smart-
hopping Core Access
Point
IntelliVue Smart-hopping
Remote Antenna
Power/Sync, Radio,
and Network
Status LEDs
Serial Port
Fiber Cable Connectors
to Remote Antennas (2 & 1)
with RA Status LEDs
Ferrule Cable Connector
to IntelliVue Smart-hopping
Core Access Point
Ferrule Cable Connectors
to Remote Antennas (2 & 1)
Fiber Cable Connector
to IntelliVue Smart-hopping
Core AP
Link LED
Activity LED
Connection LED
(Green)
Power LED
(Yellow)
RA 2 RA 1
RA 2 RA 1
