EN 3LC4.3E AA 1.
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW ot
1.2.2 Rear Connections

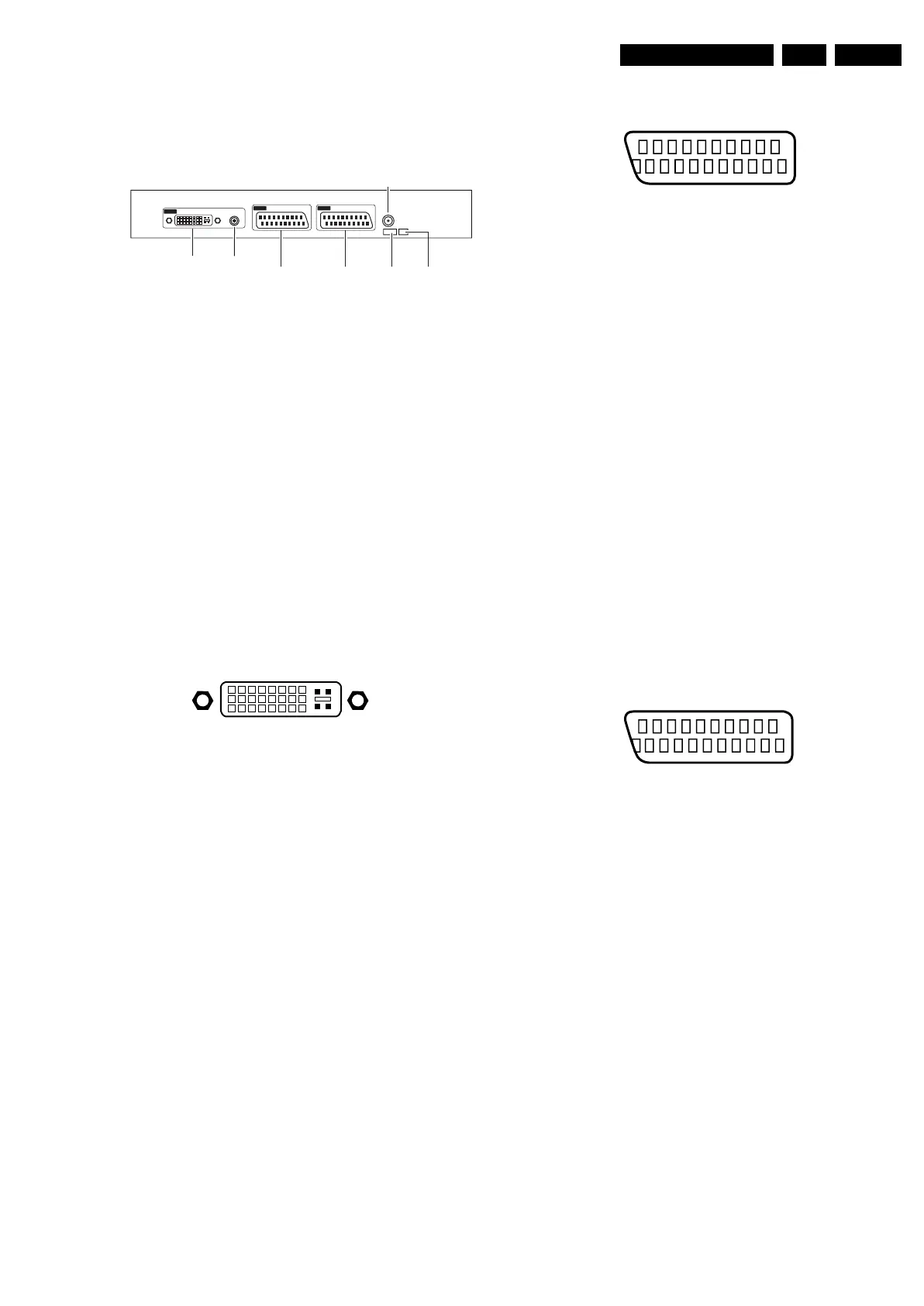

Figure 1-2 Rear I/O
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
Mini Jack: PC-Audio - In
1 - Ground Gnd H
2 - Audio L 0.5 V
RMS
/ 10 kohm j
3 - Audio R 0.5 V
RMS
/ 10 kohm j
Service connector (ComPair)
1 - SDA-S I
2
C Data (0 - 5 V) jk
2 - SCL-S I
2
C Clock (0 - 5 V) j
3 - Ground Gnd H
Service connector (UART)
1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j
DVI-I: Digital/Analogue Video - In
Figure 1-3 DVI-I connector
1-D2- j
2-D2+ j
3 - Shield Gnd H
4-D4- j
5-D4+ j
6 - DDC_SCL DDC clock k
7 - DDC_SDA DDC data jk
8 - V-sync 0 - 5 V j
9-D1- j
10 - D1+ j
11 - Shield Gnd H
12 - D3- j
13 - D3+ j
14 - +5V j
15 - Ground Gnd H
16 - HPD Hot Plug Detect j
17 - D0- j
18 - D0+ j
19 - Shield Gnd H
20 - D5- j
21 - D5+ j
22 - Shield Gnd H
23 - CLK+ j
24 - CLK- j
C1 - Video Red 0.7 V
PP
/ 75 ohm j
C2 - Video Green 0.7 V
PP
/ 75 ohm j
C3 - Video Blue 0.7 V
PP
/ 75 ohm j
C4 - H-sync 0 - 5 V j
C5 - Ground Gnd H
EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 1-4 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Gnd H
15 - Video Red 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video Terr. CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS/Y 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
EXT2: Video Y/C - in, CVBS - In/Out, Audio - In/Out
Figure 1-5 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7-n.c.
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - n.c.
12 - n.c.
13 - Ground Red Gnd H
14 - Ground Gnd H
15 - YC/C - in 0.7 V
PP
/ 75 ohm j
16 - n.c.
17 - Ground Video Gnd H
18 - Ground Gnd H
19 - Video Mon. CVBS 1 V
PP
/ 75 ohm k
20 - YC/Y - in 0.7 V
PP
/ 75 ohm j
21 - Shield Gnd H
18
916
17
24
C5
C1 C2
C3 C4
EXT 2 EXT 1
DVI
AUDIO
F_15270_001.eps
120505
DVIDVI-I
Audio In
EXT 2 UART I
2
CEXT 1
ComPair
AERIAL IN
1 8
916
17
24
C5
C1 C2
C3 C4
E_06532_004.eps
050404
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
