EN 2 LC4.3E AA1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD, IPS
Screen size :
- 26PF4310/10 : 26” (66 cm), 15:9
- 26PF5320/10 : 26” (66 cm), 16:9
- 32PF5320/10 : 32” (82 cm), 16:9
- 32PF7320/10 : 32” (82 cm), 16:9
Resolution (HxV pixels) :
- 26PF4310/10 : 1280 x 768
- 26PF5320/10 : 1366 x 768
- 32PF5320/10 : 1366 x 768
- 32PF7320/10 : 1366 x 768
Contrast ratio :
- 26PF4310/10 : 500:1
- 26PF5320/10 : 600:1
- 32PF5320/10 : 600:1
- 32PF7320/10 : 600:1
Light output (cd/m
2
):
- 26PF4310/10 : 400
- 26PF5320/10 : 500
- 32PF5320/10 : 500
- 32PF7320/10 : 500
Response time (ms) :
- 26PF4310/10 : 16
- 26PF5320/10 : 16
- 32PF5320/10 : 18
- 32PF7320/10 : 18
Viewing angle (HxV degrees) :
- 26PF4310/10 : 176x176
- 26PF5320/10 : 178x178
- 32PF5320/10 : 176x176
- 32PF7320/10 : 176x176
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Video playback :
- 26PF4310/10 : PAL B/G; SECAM L/L’
- 26PF5320/10, :
- 32PF5320/10, :
- 32PF7320/10: : NTSC M/N 3.58, 4.43
: PAL B/G
: SECAM L/L’
Supported computer formats : VGA (640x480)
: MAC (640x480)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 1920x1080i - 2fH
Presets/channels : 100 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
1.1.2 Sound
Sound systems : FM-mono
: FM-stereo B/G
: NICAM B/G, D/K, I, L
: AV Stereo
Maximum power (W
RMS
):
- 26PF4310/10 : 2 x 5
- 26PF5320/10 : 2 x 5
- 32PF5320/10 : 2 x 15
- 32PF7320/10 : 2 x 15
1.1.3 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 95 - 240
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption
- Normal operation (W) : ≈ 96
- Stand-by (W) : < 1
Dimensions (WxHxD cm) :
- 26PF4310/10 : 79.2 x 43.1 x 24.2
- 26PF5320/10 : 80.45 x 47.7 x 22.2
- 32PF5320/10 : 92.4 x 55.0 x 22.2
- 32PF7320/10 : 92.4 x 55.0 x 22.2
Weight (kg) :
- 26PF4310/10 : 15
- 26PF5320/10 : 16
- 32PF5320/10 : 18.2
- 32PF7320/10 : 18.2
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side I/O connections

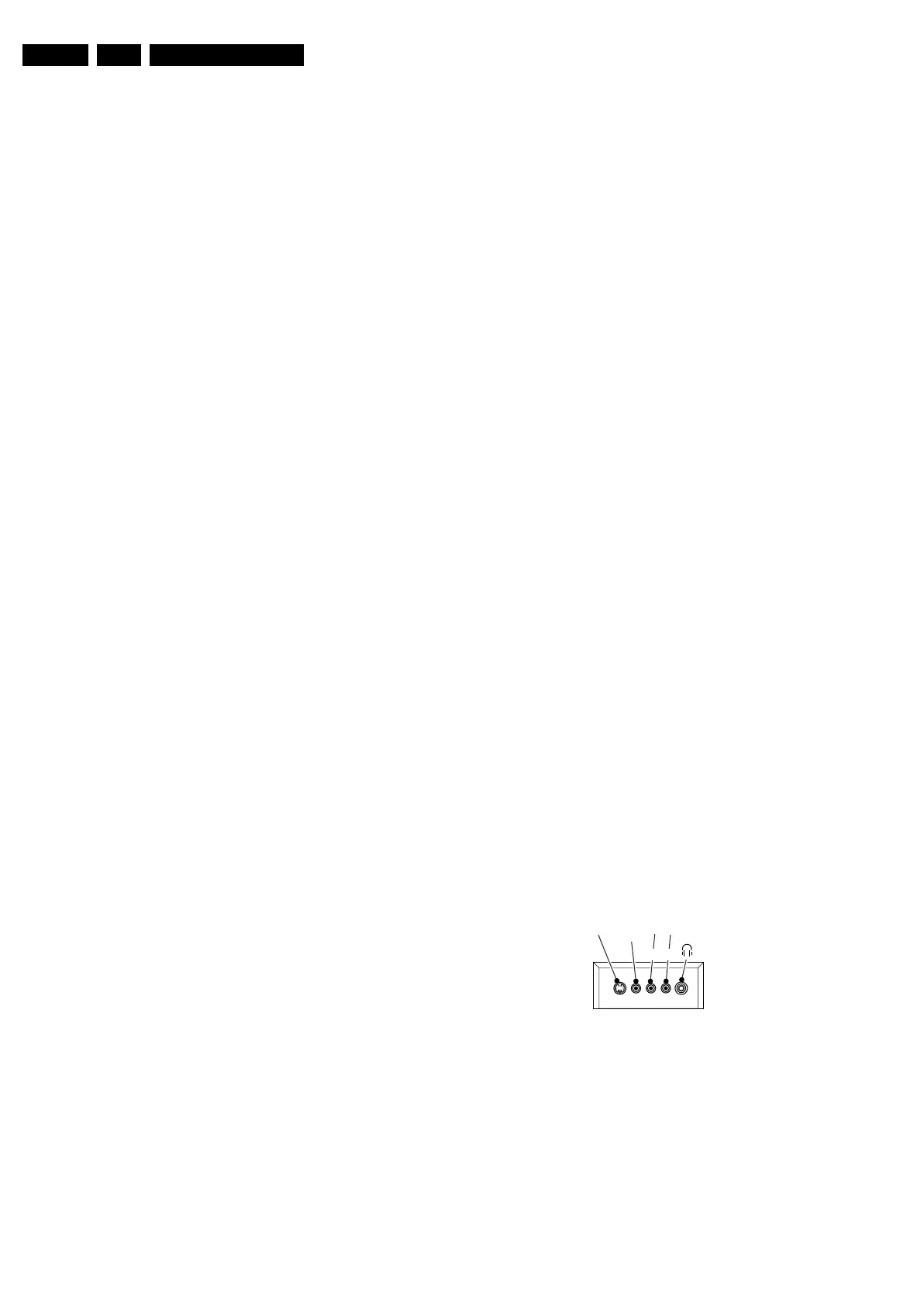

Figure 1-1 Side I/O connections
SVHS (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
LR
AudioS-Video Video
E_14710_005.eps
210404
