EN 96LC4.3E AA 7.
Circuit Diagrams and PWB Layouts

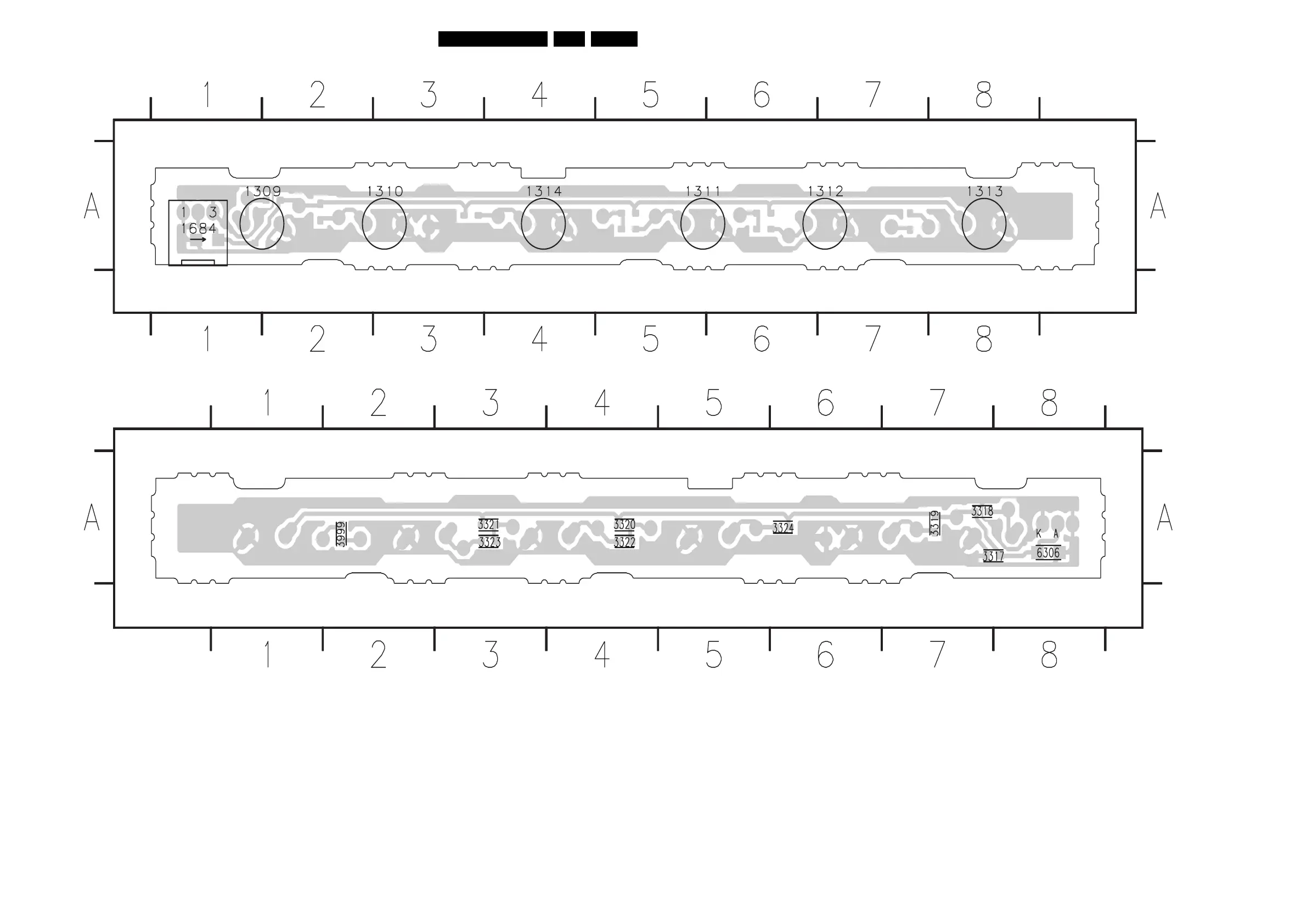

Layout Keyboard Control Panel (Top Side)
Layout Keyboard Control Panel (Bottom Side)
3139 123 5974.1
F_15390_032.eps
210605
1309 A1
1310 A3
1311 A5
1312 A7
1313 A8
1314 A4
1684 A1
3139 123 5974.1
F_15390_033.eps
210605
3317 A7
3318 A7
3319 A7
3320 A4
3321 A3
3322 A4
3323 A3
3324 A6
3999 A2
6306 A8
