236
LX3700/22-Por new
Português
Apresentação Funcional
APRESENTAÇÃO FUNCIONAL
1 MW/FM ANTENNA
ligue à antena de quadro MW ou antena FM.
2 AUDIO IN-AUX
ligue às saídas áudio analógicas de um televisor ou
videogravador.
3 AUDIO OUT
ligue às entradas áudio analógicas de um dispositivo
de gravação externo ou amplificador.
4 WOOFER LINE OUT
ligue a um subwoofer activo.
5 DIGITAL OUT-OPTICAL
ligue a um equipamento áudio com entrada áudio
óptica-digital.
6 DIGITAL OUT-COAXIAL
ligue a um equipamento áudio com entrada áudio
digital-coaxial.
7 DIGITAL IN
Ligação a partir de um equipamento áudio com saída
áudio digital.
8 SPEAKERS
ligue às colunas frontais, central e surround.
9 A/V SCART OUT
ligue a um televisor com entrada SCART.
0 S-VIDEO OUT
ligue a um televisor com entrada S-vídeo.
! VIDEO OUT
ligue a um televisor com entrada de vídeo.
@ Cabo Eléctrico
ligue a uma tomada de c.a. padrão
Atenção: Não toque nos pinos internos das tomadas no painel traseiro. A descarga electrostática pode
provocar danos permanentes ao aparelho.
2
A/V SCART OUT
AC MAINS~
AUDIO IN
AUX
AUDIO OUT
WOOFER
LINE OUT
S-VIDEO
VIDEO OUT
VIDEO
MW
ANTENNA
(8 )
SPEAKERS
FR SLSR SWCFL
OUT
OPTICAL COAXIAL
DIGITAL
IN
FM (75 )
1234567 8
90!@

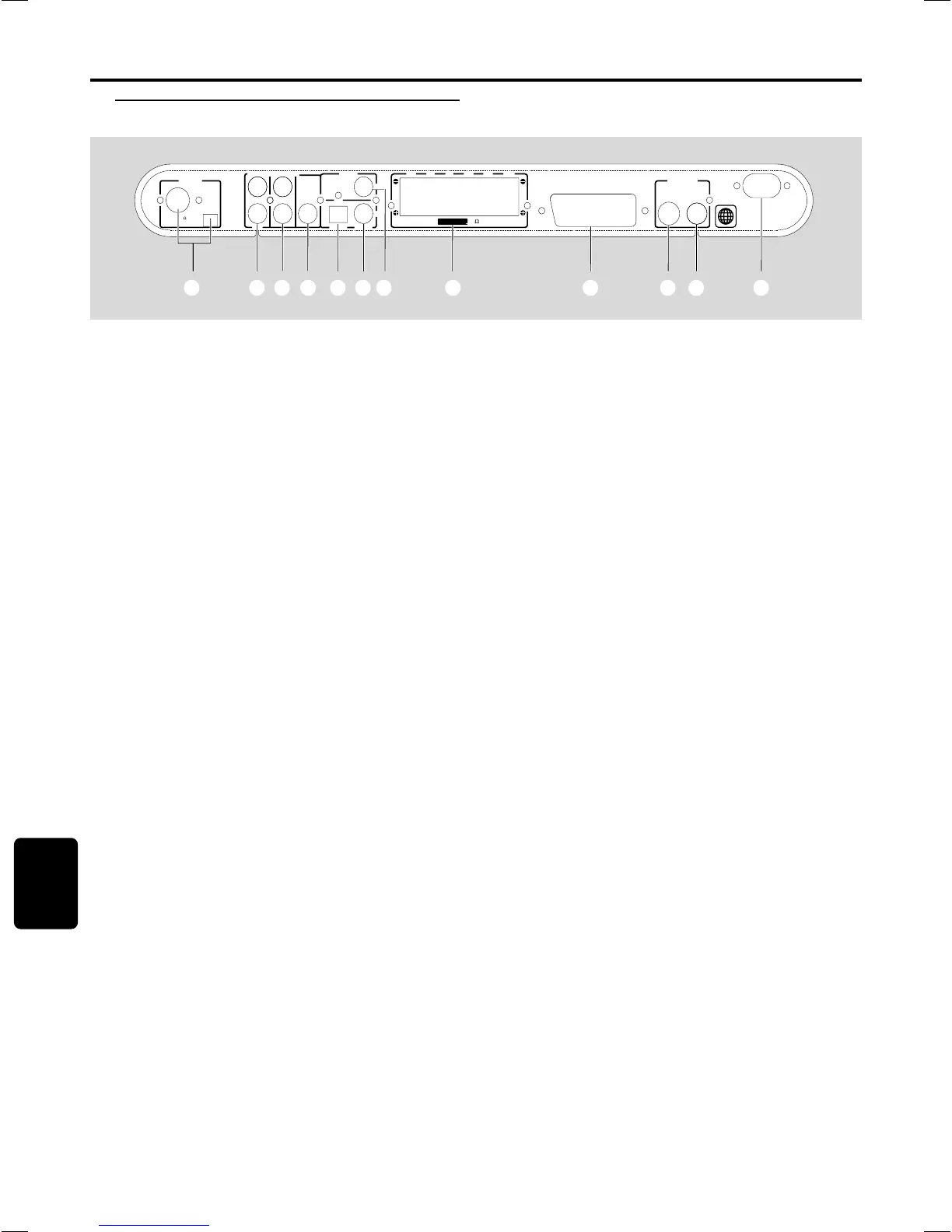

Painéis Frontal e Traseiro
