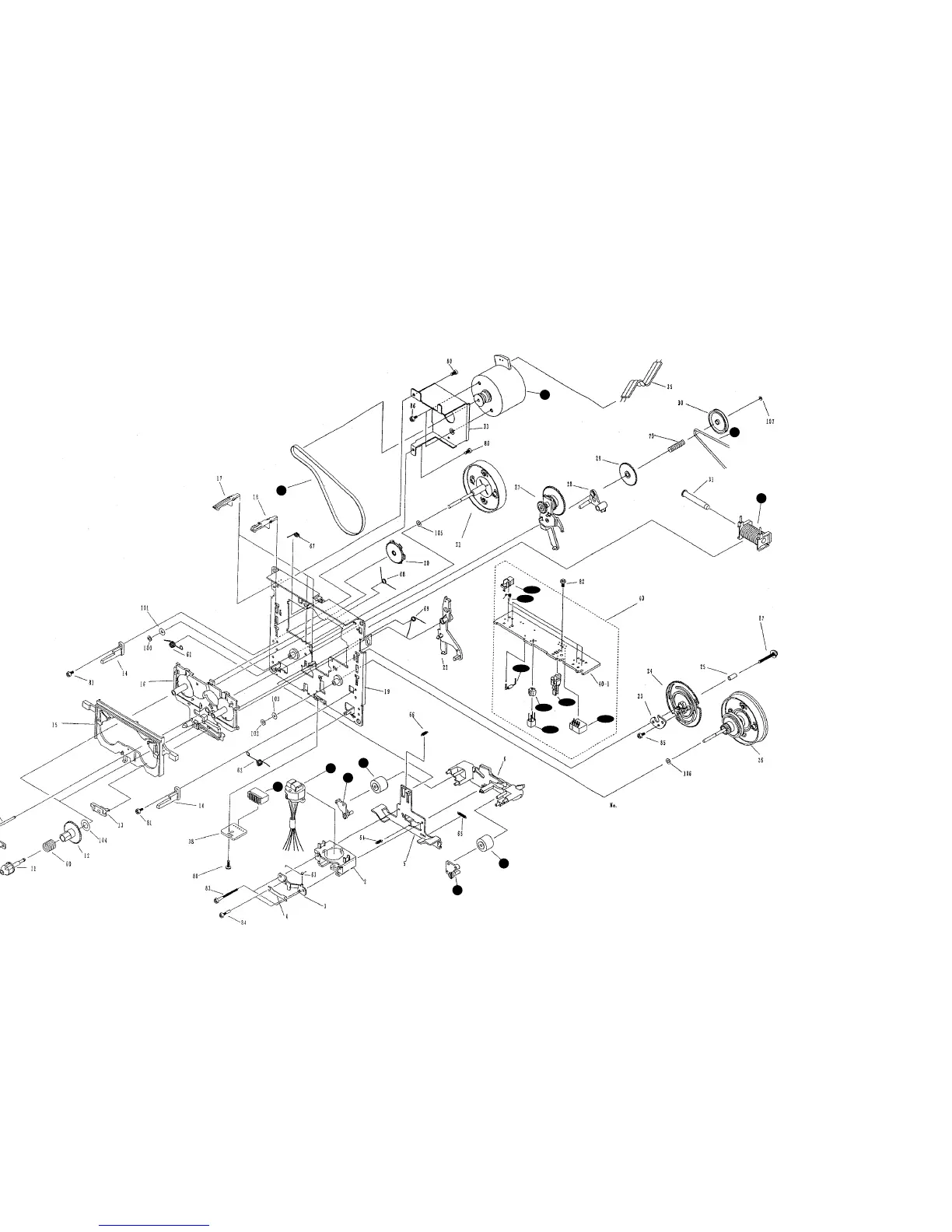

Philips MC-200 - Exploded View Diagram - ETF8 Tape Deck

13 - 3 13 - 3
1 9965 000 10041 Rec/Pb Head Assembly 40-8 9965 000 10052 Spring-Switch
7 9965 000 10042 Pinch Roller Bracket R 61 9965 000 10053 Spring
8 9965 000 10043 Pinch Roller Bracket L 62 9965 000 10054 Spring
9 9965 000 10044 Pinch Roller
32 9965 000 10045 ASSEMBLY BOBBIN
34 9965 000 10046 Motor Assembly
Note: Only these parts mentioned in the list are
36 9965 000 07441 Belt-SR
normal service parts.
37 9965 000 07442 Belt-FR
39 9965 000 10047 Housing
40-2 9965 000 10048 Housing
40-3 9965 000 10049 Mode Switch
40-4 4822 116 83883 470R 5% 0,5W
40-5 9965 000 10050 Spacer
40-6 9965 000 10051 Photo Interrupter SG211V
40-7 9965 000 07443 Box Switch
36
3436
37
32
39
1
8
9
7
9
40-7
40-8
40-2
40-3
40-4
40-5
40-6
EXPLODED VIEW DIAGRAM - ETF8 TAPE DECK
