Philips MCD107 - Mechanical Partslist

9 - 2

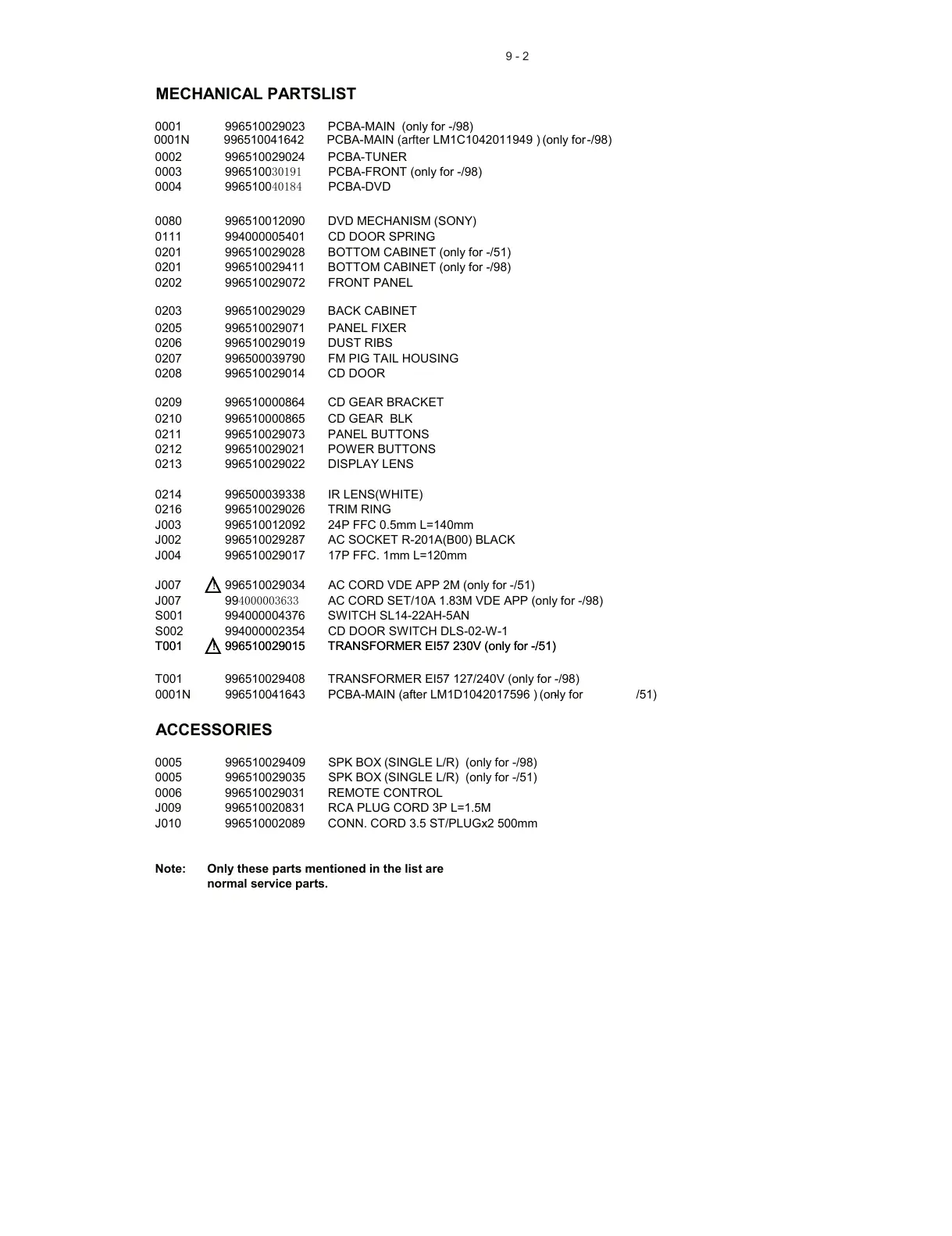

MECHANICAL PARTSLIST
0001 996510029023 PCBA-MAIN (only for -/98)
0002 996510029024 PCBA-TUNER
0003 996510030191 PCBA-FRONT (only for -/98)
0004 996510040184 PCBA-DVD
0080 996510012090 DVD MECHANISM (SONY)
0111 994000005401 CD DOOR SPRING
0201 996510029028 BOTTOM CABINET (only for -/51)
0201 996510029411 BOTTOM CABINET (only for -/98)
0202 996510029072 FRONT PANEL
0203 996510029029 BACK CABINET
0205 996510029071 PANEL FIXER
0206 996510029019 DUST RIBS
0207 996500039790 FM PIG TAIL HOUSING
0208 996510029014 CD DOOR
0209 996510000864 CD GEAR BRACKET
0210 996510000865 CD GEAR BLK
0211 996510029073 PANEL BUTTONS
0212 996510029021 POWER BUTTONS
0213 996510029022 DISPLAY LENS
0214 996500039338 IR LENS(WHITE)
0216 996510029026 TRIM RING
J003 996510012092 24P FFC 0.5mm L=140mm
J002 996510029287 AC SOCKET R-201A(B00) BLACK
J004 996510029017 17P FFC. 1mm L=120mm
J007
!
996510029034 AC CORD VDE APP 2M (only for -/51)
J007 994000003633 AC CORD SET/10A 1.83M VDE APP (only for -/98)
S001 994000004376 SWITCH SL14-22AH-5AN
S002 994000002354 CD DOOR SWITCH DLS-02-W-1
T001
!
996510029015 TRANSFORMER EI57 230V (only for -/51)T001
!
996510029015 TRANSFORMER EI57 230V (only for -/51)
T001 996510029408 TRANSFORMER EI57 127/240V (only for -/98)
ACCESSORIES
0005 996510029409 SPK BOX (SINGLE L/R) (only for -/98)
0005 996510029035 SPK BOX (SINGLE L/R) (only for -/51)
0006 996510029031 REMOTE CONTROL
J009 996510020831 RCA PLUG CORD 3P L=1.5M
J010 996510002089 CONN. CORD 3.5 ST/PLUGx2 500mm
Note: Only these parts mentioned in the list are
normal service parts.
0001N 996510041642 PCBA-MAIN (arfter LM1C1042011949 ) (only for -/98)
0001N 996510041643 PCBA-MAIN (after LM1D1042017596 ) (only for- /51)
