Philips MCD107 - Electrical Partslist

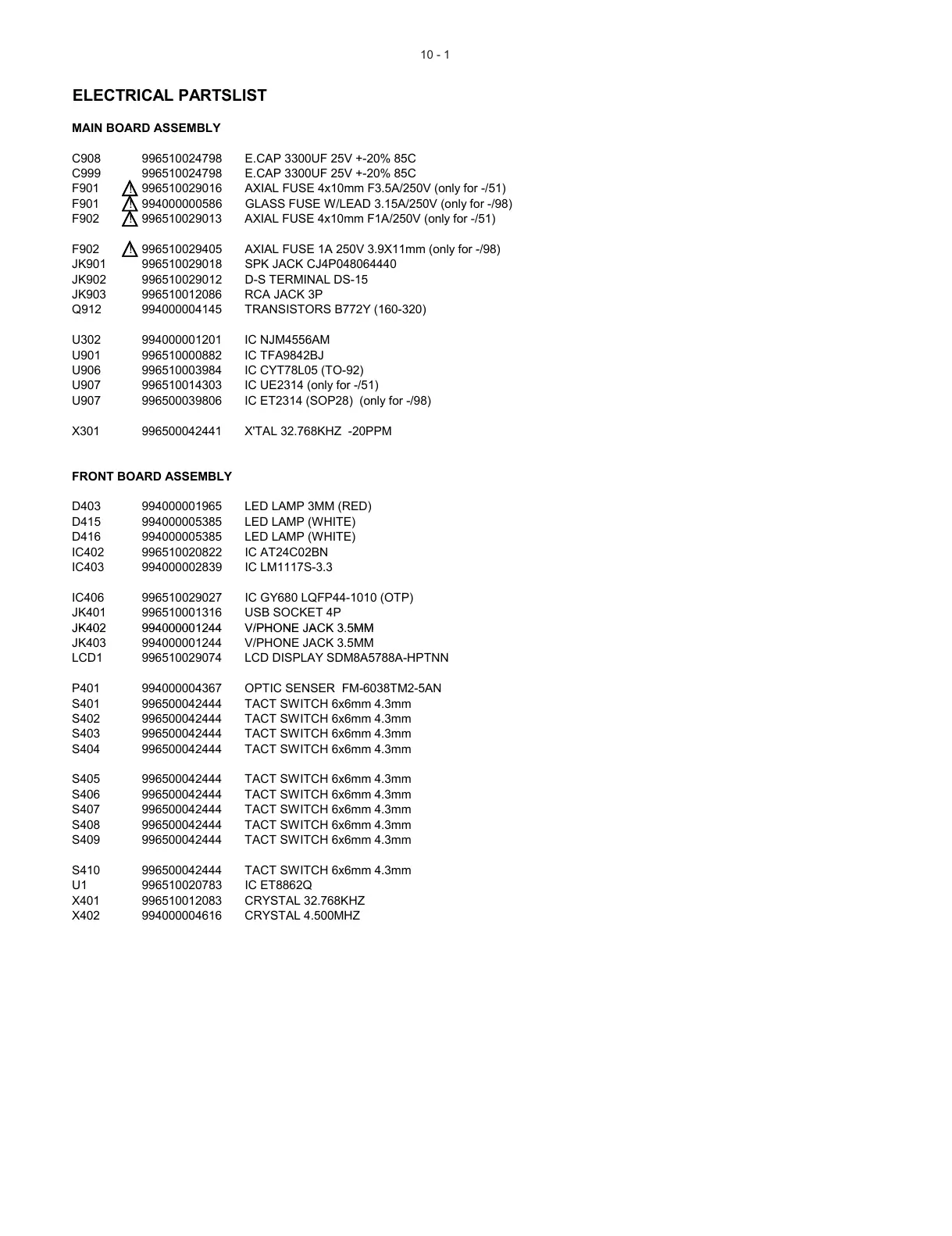

ELECTRICAL PARTSLIST
MAIN BOARD ASSEMBLY
C908 996510024798 E.CAP 3300UF 25V +-20% 85C
C999 996510024798 E.CAP 3300UF 25V +-20% 85C
F901
!
996510029016 AXIAL FUSE 4x10mm F3.5A/250V (only for -/51)
F901
!
994000000586 GLASS FUSE W/LEAD 3.15A/250V (only for -/98)
F902
!
996510029013 AXIAL FUSE 4x10mm F1A/250V (only for -/51)
F902
!
996510029405 AXIAL FUSE 1A 250V 3.9X11mm (only for -/98)
JK901 996510029018 SPK JACK CJ4P048064440
JK902 996510029012 D-S TERMINAL DS-15
JK903 996510012086 RCA JACK 3P
Q912 994000004145 TRANSISTORS B772Y (160-320)
U302 994000001201 IC NJM4556AM
U901 996510000882 IC TFA9842BJ
U906 996510003984 IC CYT78L05 (TO-92)
U907 996510014303 IC UE2314 (only for -/51)
U907 996500039806 IC ET2314 (SOP28) (only for -/98)
X301 996500042441 X'TAL 32.768KHZ -20PPM
FRONT BOARD ASSEMBLY
D403 994000001965 LED LAMP 3MM (RED)
D415 994000005385 LED LAMP (WHITE)
D416 994000005385 LED LAMP (WHITE)
IC402 996510020822 IC AT24C02BN
IC403 994000002839 IC LM1117S-3.3
IC406 996510029027 IC GY680 LQFP44-1010 (OTP)
JK401 996510001316 USB SOCKET 4P
JK402
994000001244
V/PHONE JACK 3 5MM
JK402
994000001244
V/PHONE JACK 3
.
5MM
JK403 994000001244 V/PHONE JACK 3.5MM
LCD1 996510029074 LCD DISPLAY SDM8A5788A-HPTNN
P401 994000004367 OPTIC SENSER FM-6038TM2-5AN
S401 996500042444 TACT SWITCH 6x6mm 4.3mm
S402 996500042444 TACT SWITCH 6x6mm 4.3mm
S403 996500042444 TACT SWITCH 6x6mm 4.3mm
S404 996500042444 TACT SWITCH 6x6mm 4.3mm
S405 996500042444 TACT SWITCH 6x6mm 4.3mm
S406 996500042444 TACT SWITCH 6x6mm 4.3mm
S407 996500042444 TACT SWITCH 6x6mm 4.3mm
S408 996500042444 TACT SWITCH 6x6mm 4.3mm
S409 996500042444 TACT SWITCH 6x6mm 4.3mm
S410 996500042444 TACT SWITCH 6x6mm 4.3mm
U1 996510020783 IC ET8862Q
X401 996510012083 CRYSTAL 32.768KHZ
X402 994000004616 CRYSTAL 4.500MHZ
10 - 1
