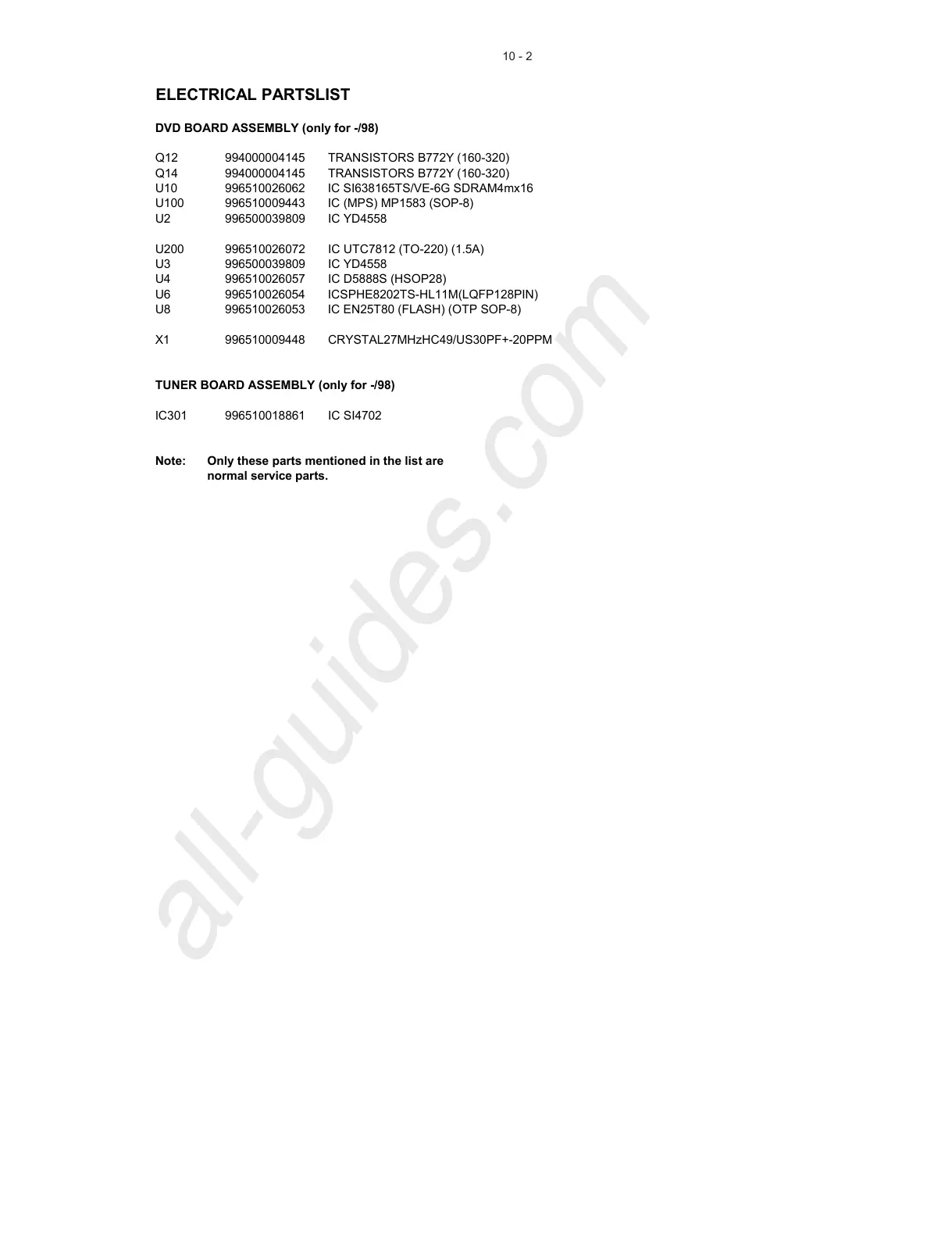

ELECTRICAL PARTSLIST
DVD BOARD ASSEMBLY (only for -/98)
Q12 994000004145 TRANSISTORS B772Y (160-320)
Q14 994000004145 TRANSISTORS B772Y (160-320)
U10 996510026062 IC SI638165TS/VE-6G SDRAM4mx16
U100 996510009443 IC (MPS) MP1583 (SOP-8)
U2 996500039809 IC YD4558
U200 996510026072 IC UTC7812 (TO-220) (1.5A)
U3 996500039809 IC YD4558
U4 996510026057 IC D5888S (HSOP28)
U6 996510026054 ICSPHE8202TS-HL11M(LQFP128PIN)
U8 996510026053 IC EN25T80 (FLASH) (OTP SOP-8)
X1 996510009448 CRYSTAL27MHzHC49/US30PF+-20PPM
TUNER BOARD ASSEMBLY (only for -/98)
IC301 996510018861 IC SI4702
Note: Only these parts mentioned in the list are
normal service parts.
