5-1 5-1

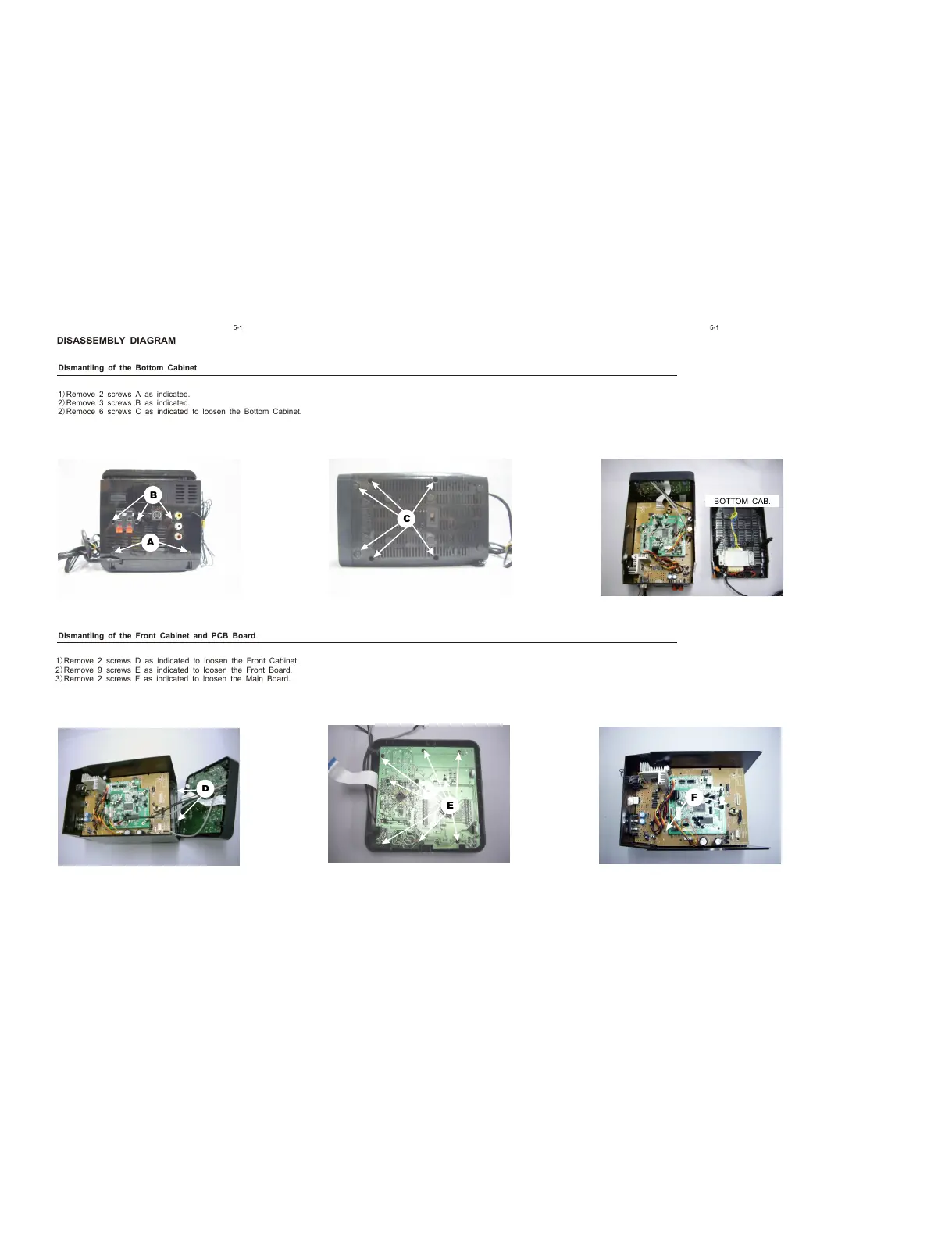

DISASSEMBLY DIAGRAM
A
C
BOTTOM CAB.
1)Remove 2 screws A as indicated.
2)Remove 3 screws B as indicated.
2)Remoce 6 screws C as indicated to loosen the Bottom Cabinet.
Dismantling of the Bottom Cabinet
Dismantling of the Front Cabinet and PCB Board.
D
1)Remove 2 screws D as indicated to loosen the Front Cabinet.
2)Remove 9 screws E as indicated to loosen the Front Board.
3)Remove 2 screws F as indicated to loosen the Main Board.
E
B
F
