4-2
4-2

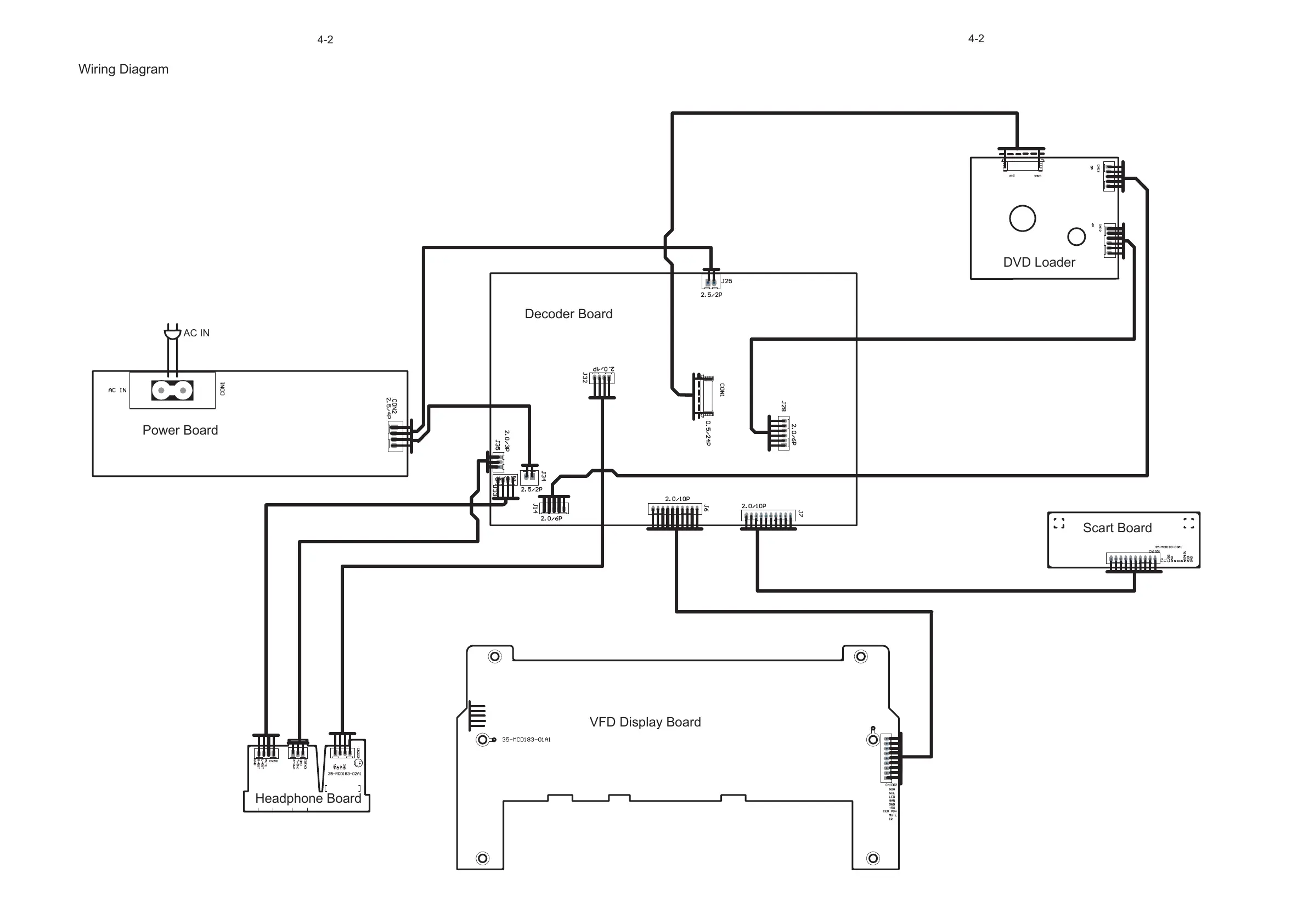

Wiring Diagram
AC IN
Decoder Board
VFD Display Board
Headphone Board
Power Board
DVD Loader
Scart Board
