4 - 2

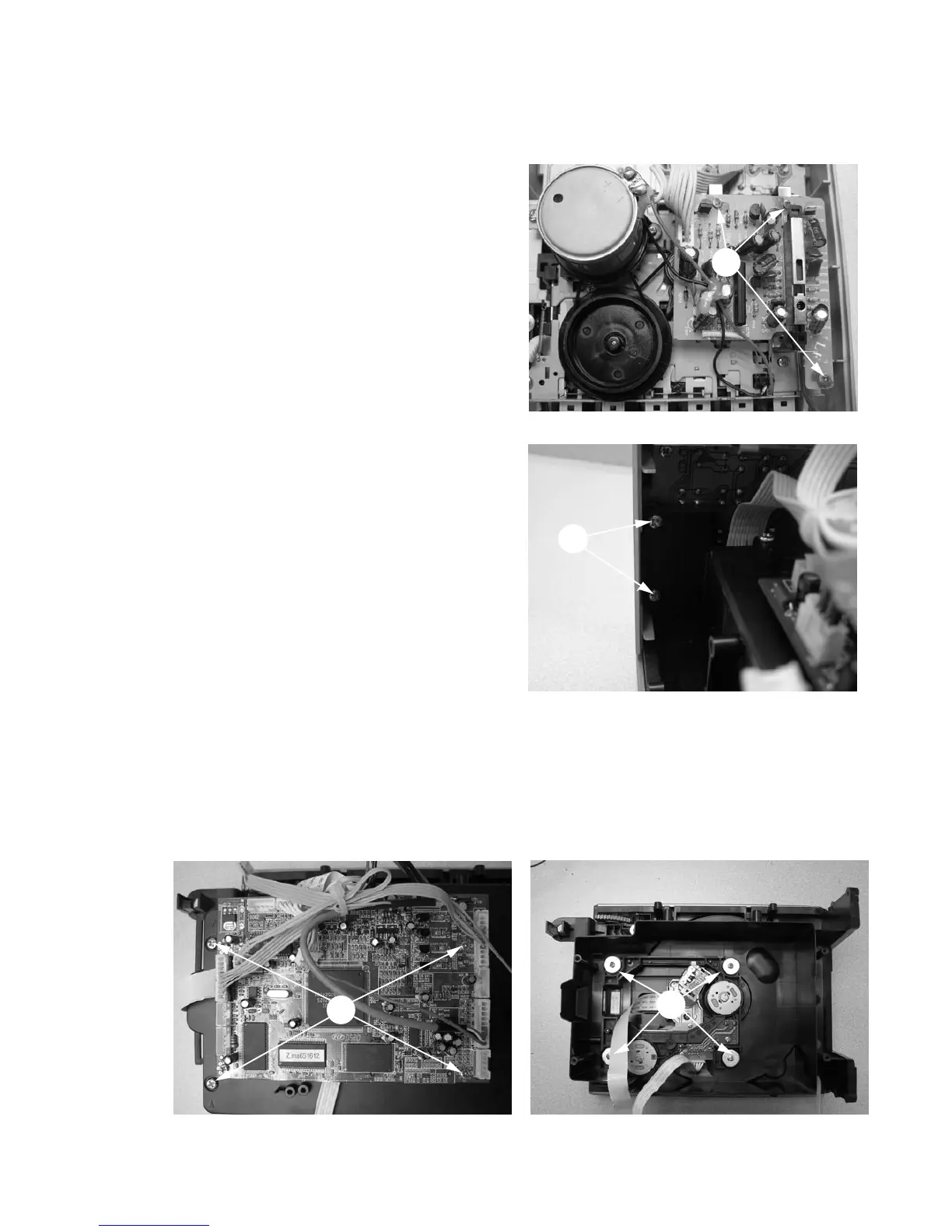

DISASSEMBLY DIADRAMS
STEP C :
Remove Cassette PCB Assy
- Remove 3 screws (K2x5)
STEP D :
Remove CD tray
- Remove 4 screws (SP3x10)
STEP E :
Remove DVD Mechaniam
- Remove DVD PC board 4 screws (SP2.5x6)
- Remove CD tray cover 4 screws (SP3x8)
- Remove DVD Mechaniam 4 screws(M2.5x10)
C1
D1
E3
E1
DISASSEMBLY DIAGRAMS
