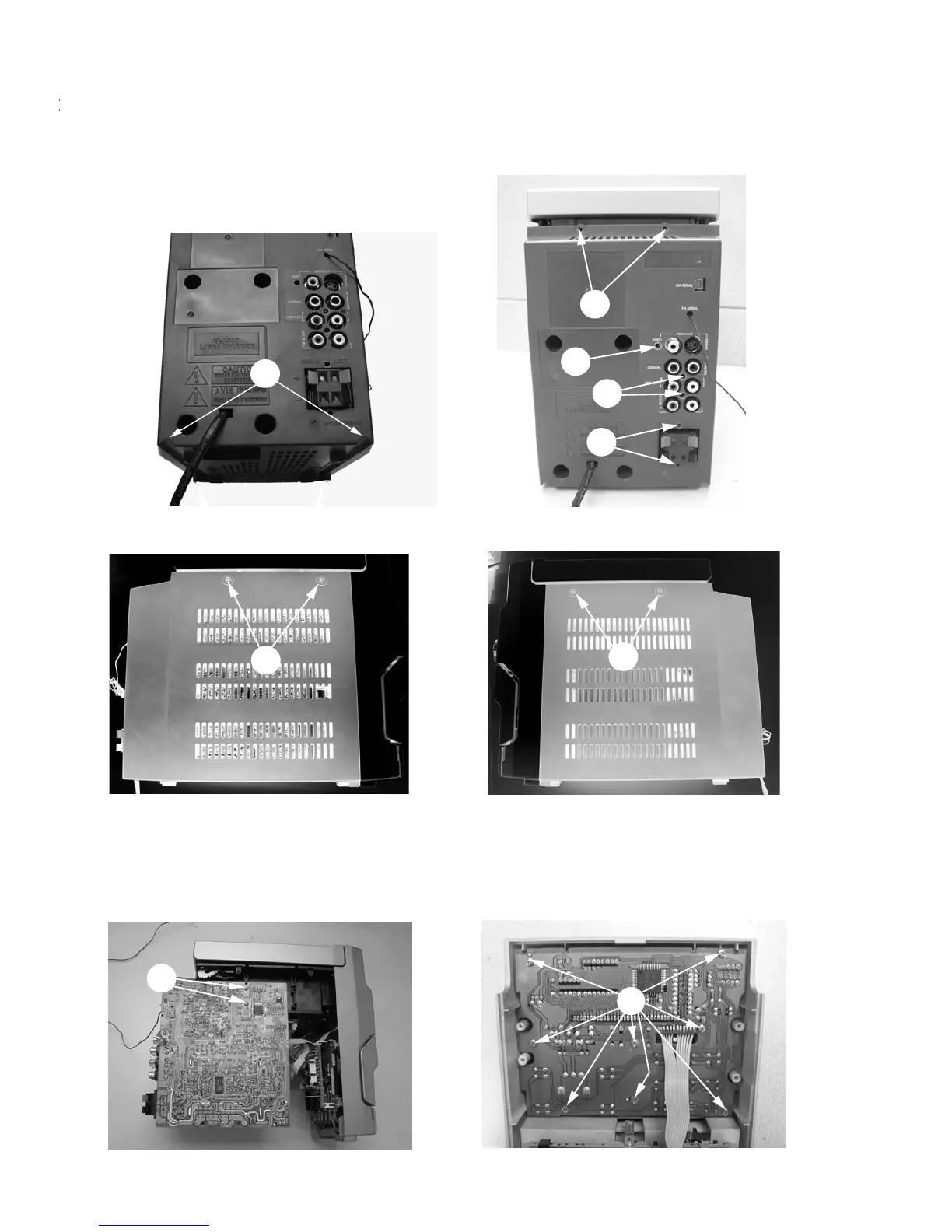

Philips MCD190 - Disassembly Diagram

4 - 1
STEP A : Remove Rear Cabinet
- A1 : Remove 2 screws (SP3x12)
- A2 : Remove 4 screws (SP3x10)
- A3 : Remove 1 screws (SP3x10)
- A4 : Remove 2 screws (SP3x10)
STEP B :
Remove Main board and LCD board
- B1: Remove 2 screws (SP3x8)
A6
A7
DISASSEMBLY DIADRAMS
- A5 : Remove 2 screws (SP3x10)
- A6 : Remove 2 screws (K3x10)
- A7 : Remove 2 screws (K3x10)
B1
B2
- B2: Remove 8 screws (SP2.5x8)
A5
A4
A3
A2
A1
DISASSEMBLY DIAGRAMS
