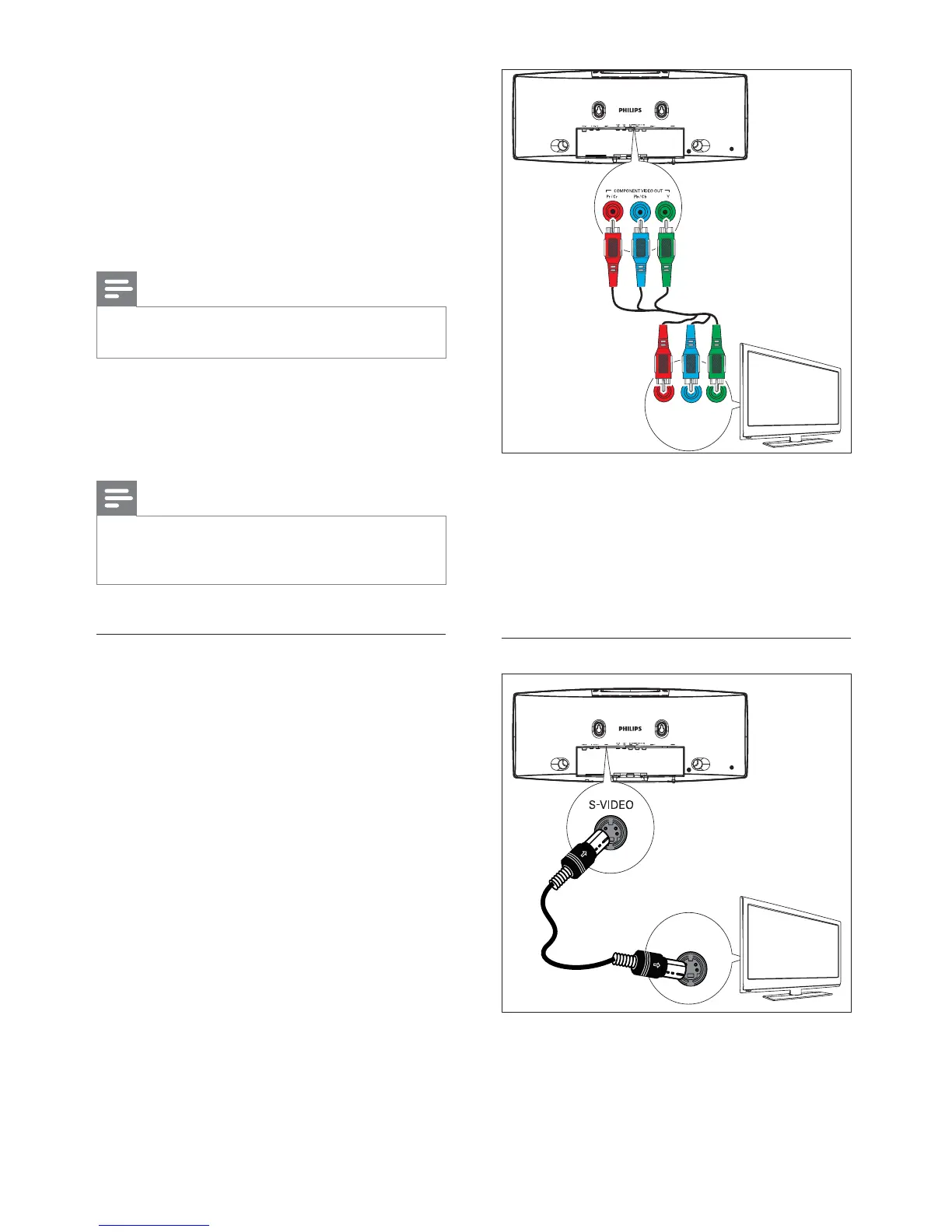

1 Connect component video cables (red/
blue/green - not supplied) to:
the• COMPONENT VIDEO OUT (Pr/
Cr Pb/Cb Y) sockets on this unit.
the component input sockets on the •
TV.
Option 3: Connect through S-Video
1 Connect an S-video cable (not supplied)
to:
the• S-Video socket on this unit.
the S-Video input socket on the TV.•
TV
Pr/Cr Pb/Cb Y
COMPONENT VIDEO IN PUT
TV
S-VIDEO IN
Connect HDMI (High Defi nition Multimedia
Interface), DVI (Digital Visual Interface), or
HDCP (High-bandwidth Digital Contents
Protection)-compliant TVs through HDMI
for the best picture quality. This connection
transmits both video and audio signals. Through
this connection, you can watch DVDs that
contain HD (High-Defi nition) content.
Note
Some TVs do not support HDMI audio transmission.•
This connection provides the best video quality.•
1 Connect an HDMI cable (not supplied) to:
the• HDMI OUT socket on this unit.
the HDMI input socket on the TV.•
Note
If your TV has only a DVI connection, connect through •
a HDMI/DVI adaptor. An extra audio connection is
needed to complete this connection.
Option 2: Connect through
component video
Connect a progressive scan TV through
component video for higher quality video.
EN
