Philips MCD388 - Disassembly Diagram

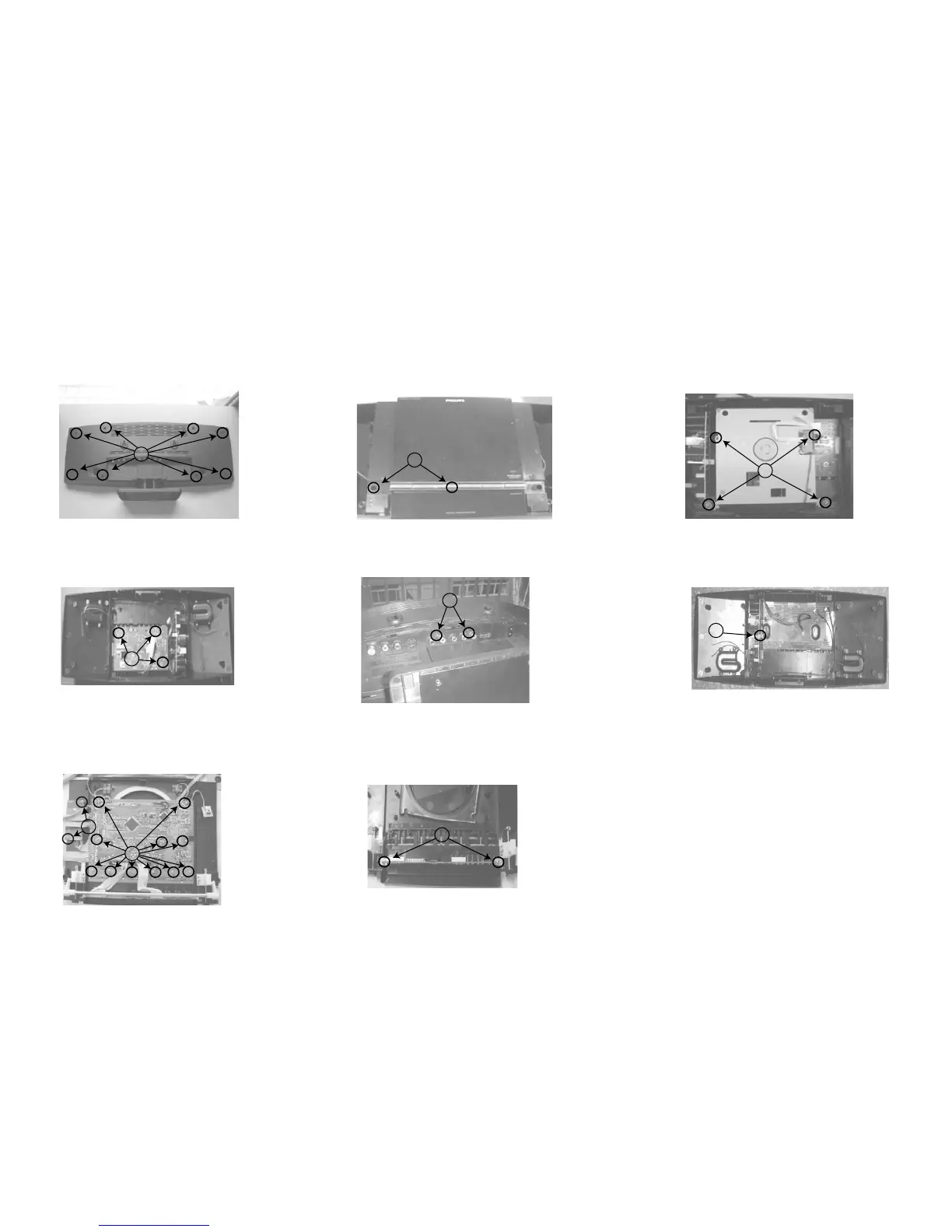

Disassembly Diagram
3-1
3-1
A. Loose 8pcs screws (3 x 10 BA)
to remove Back Cabinet
B. Loose 2pcs screws (3 x 8 FA)
to remove Front Cabinet
C. Loose these 4pcs screws (3 x 10 PWA)
to remove Loader Tray Mechanism
D. Loose 3pcs screws (3 x 10 PA)
E. Loose 2pcs screws (3 x 8 PA)
to remove Decoder Board
F. Loose 1pcs screw (3 x 10 PWA)
to remove Power Board
G. Loose 10pcs screws (2.6 x 8 PA)
to remove Display Board
H. Loose 2pcs screws(3 x 8 PA)
to remove TX-Tansmit Board


I. Loose 2pcs screws (2.6 x 8 PWT)
to remove Display Board
$
%
&
)
(
$
*
+
,
