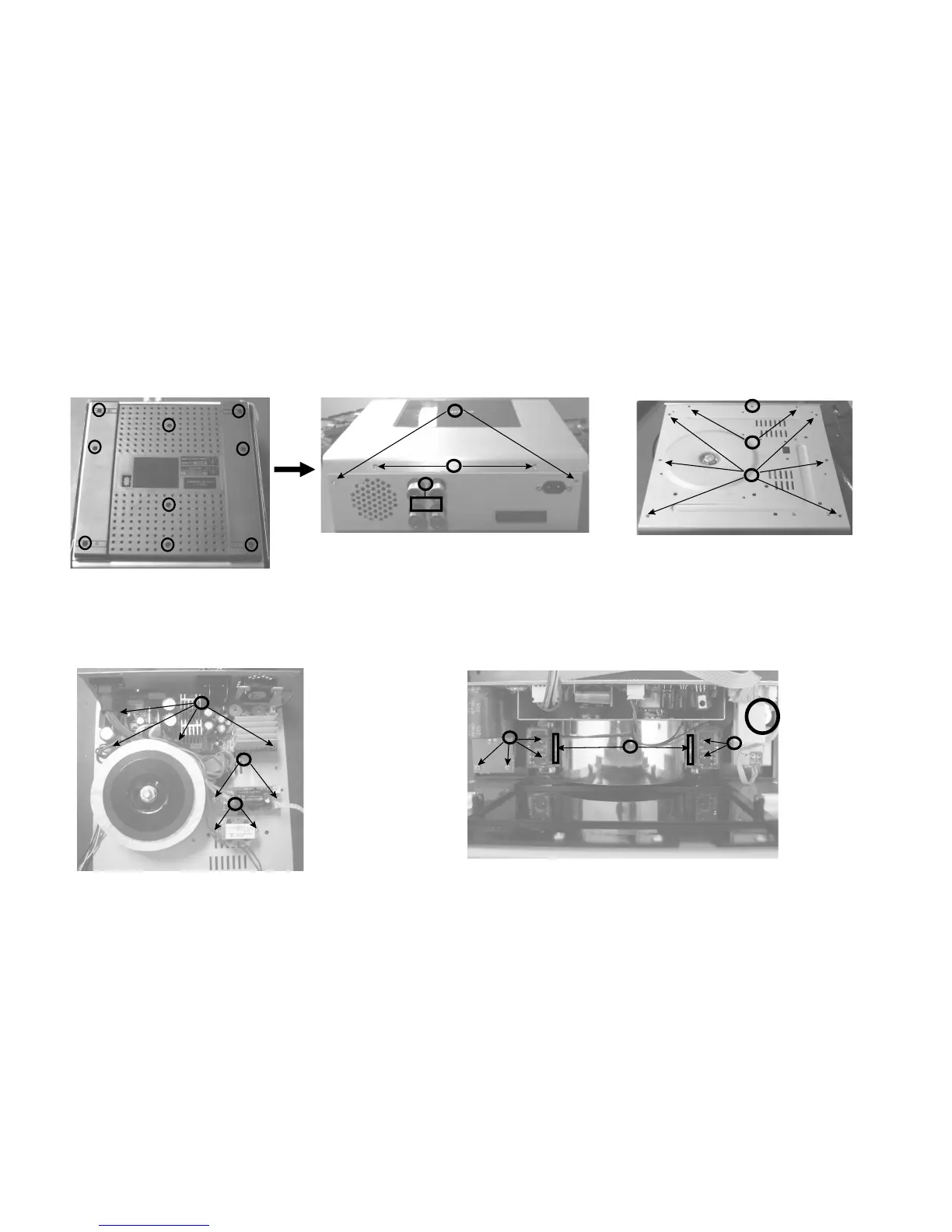

Disassembly Diagram
-- AMP Part
B.Loosen 2 PCS 3 X 6 FMTT screws
C.Loosen 2 PCS 3 X 10 BMTT screws
D.Loosen 2 PCS 3 X 10 BTH screws
F. Loosen 1 PCS 3 X 4 FMTT screws
G. Loosen 2 PCS 3 X 6 BMTT screws
H. Loosen 6 PCS 3 X 10 BTH screws
I. Loosen 4 PCS 3 X 6 BM screws
J. Loosen 2 PCS 3 X 4 BMTT screws
K. Loosen 2 PCS 3 X 6 BM screws
L. Loosen 10 PCS 2.6X 8 PA screws
M. Loosen 1 PCS 3 X 10PA
screws
A. Loosen screws 9 PCS 3 X 6 BMTT
to remove bottom chassis
B
C
D
F
G
H
I
J
K
L
L
M
L
