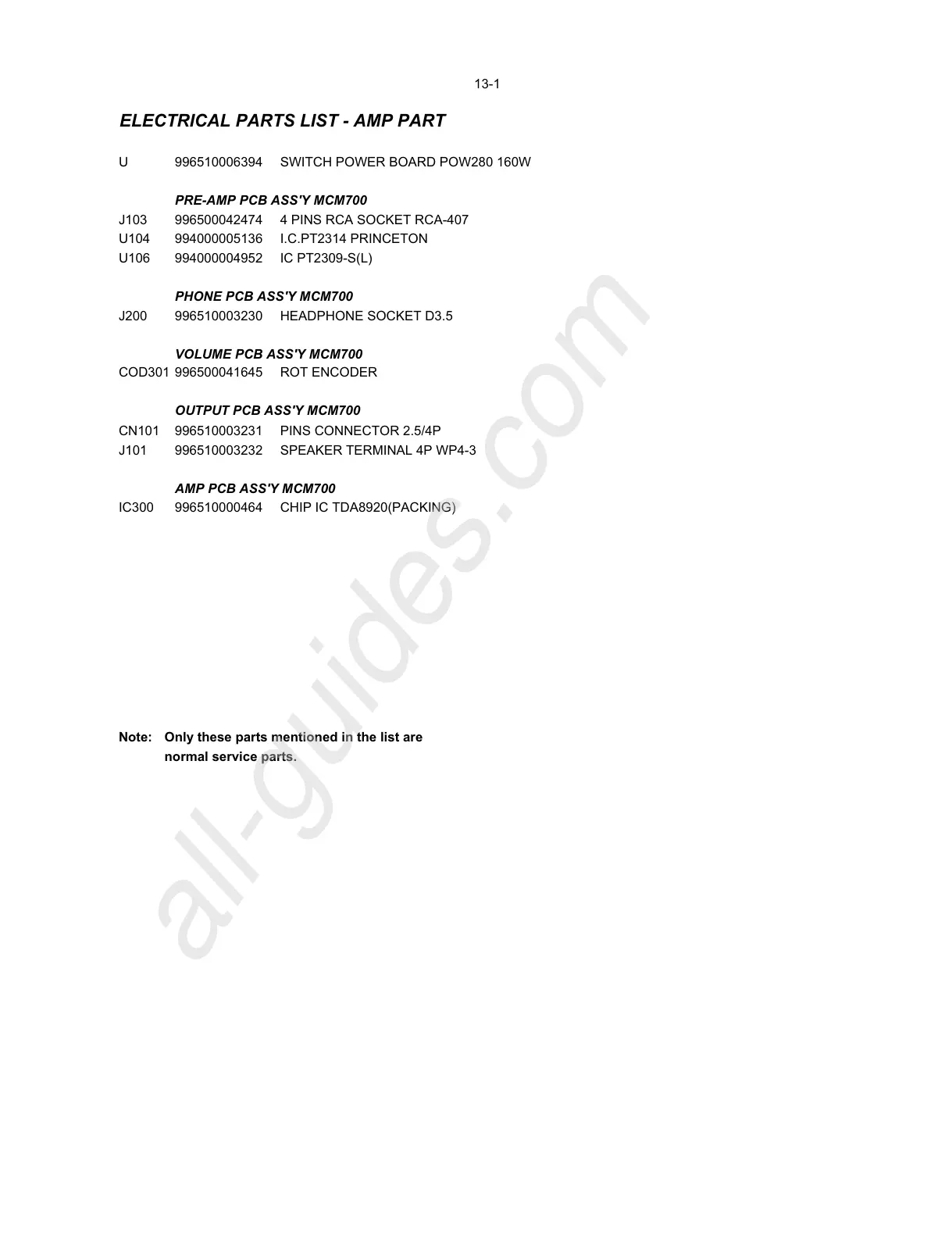

Philips MCM700 - Electrical Parts List

ELECTRICAL PARTS LIST - AMP PART
U 996510006394 SWITCH POWER BOARD POW280 160W
PRE-AMP PCB ASS'Y MCM700
J103 996500042474 4 PINS RCA SOCKET RCA-407
U104 994000005136 I.C.PT2314 PRINCETON
U106 994000004952 IC PT2309-S(L)
PHONE PCB ASS'Y MCM700
J200 996510003230 HEADPHONE SOCKET D3.5
VOLUME PCB ASS'Y MCM700
COD301 996500041645 ROT ENCODER
OUTPUT PCB ASS'Y MCM700
CN101 996510003231 PINS CONNECTOR 2.5/4P
J101 996510003232 SPEAKER TERMINAL 4P WP4-3
AMP PCB ASS'Y MCM700
IC300 996510000464 CHIP IC TDA8920(PACKING)
Note: Only these parts mentioned in the list are
normal service parts.
