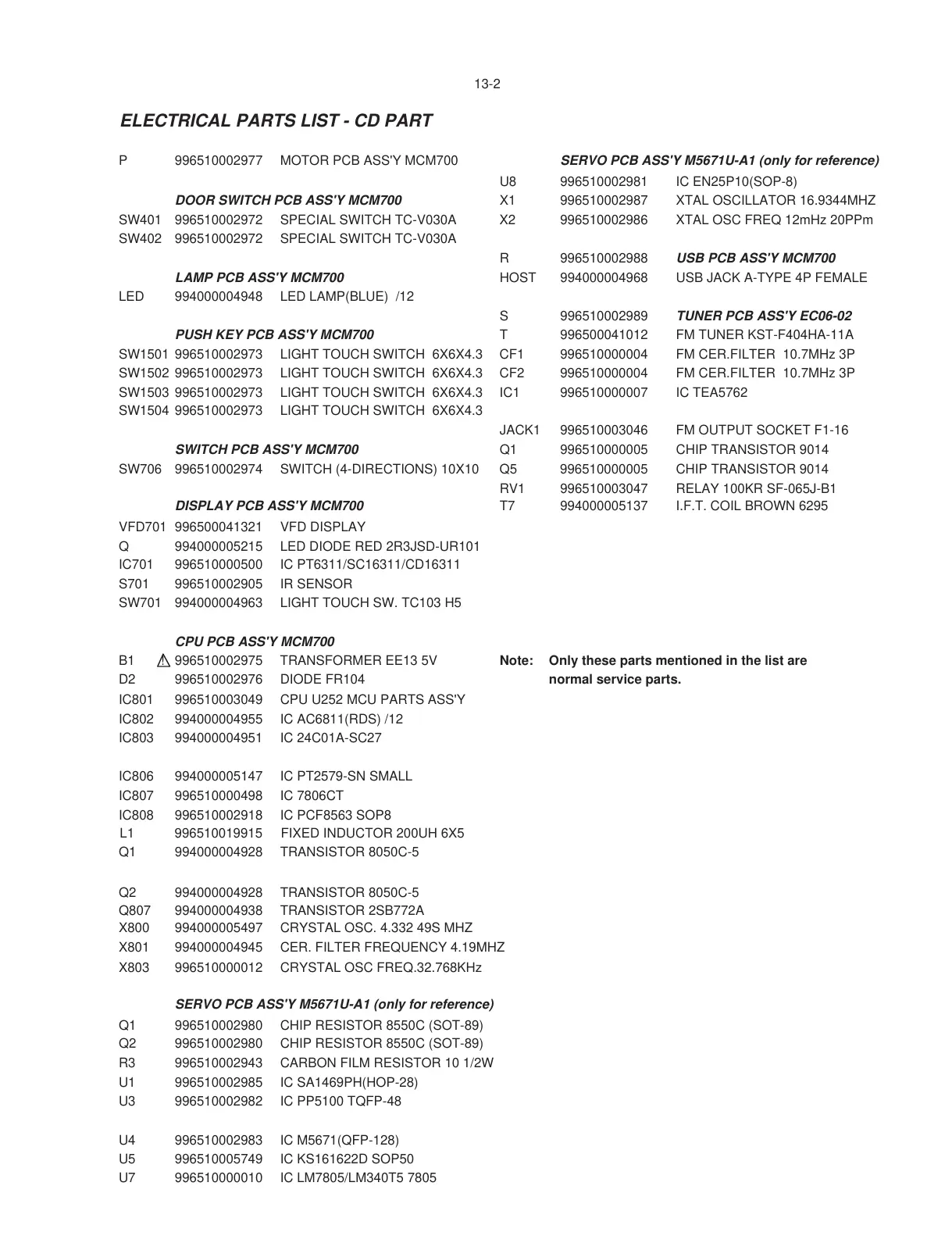

ELECTRICAL PARTS LIST - CD PART
P 996510002977 MOTOR PCB ASS'Y MCM700 SERVO PCB ASS'Y M5671U-A1 (only for reference)
U8 996510002981 IC EN25P10(SOP-8)
DOOR SWITCH PCB ASS'Y MCM700 X1 996510002987 XTAL OSCILLATOR 16.9344MHZ
SW401 996510002972 SPECIAL SWITCH TC-V030A X2 996510002986 XTAL OSC FREQ 12mHz 20PPm
SW402 996510002972 SPECIAL SWITCH TC-V030A
R 996510002988 USB PCB ASS'Y MCM700
LAMP PCB ASS'Y MCM700 HOST 994000004968 USB JACK A-TYPE 4P FEMALE
LED 994000004948 LED LAMP(BLUE) /12
S 996510002989 TUNER PCB ASS'Y EC06-02
PUSH KEY PCB ASS'Y MCM700 T 996500041012 FM TUNER KST-F404HA-11A
SW1501 996510002973 LIGHT TOUCH SWITCH 6X6X4.3 CF1 996510000004 FM CER.FILTER 10.7MHz 3P
SW1502 996510002973 LIGHT TOUCH SWITCH 6X6X4.3 CF2 996510000004 FM CER.FILTER 10.7MHz 3P
SW1503 996510002973 LIGHT TOUCH SWITCH 6X6X4.3 IC1 996510000007 IC TEA5762
SW1504 996510002973 LIGHT TOUCH SWITCH 6X6X4.3
JACK1 996510003046 FM OUTPUT SOCKET F1-16
SWITCH PCB ASS'Y MCM700 Q1 996510000005 CHIP TRANSISTOR 9014
SW706 996510002974 SWITCH (4-DIRECTIONS) 10X10 Q5 996510000005 CHIP TRANSISTOR 9014
RV1 996510003047 RELAY 100KR SF-065J-B1
DISPLAY PCB ASS'Y MCM700 T7 994000005137 I.F.T. COIL BROWN 6295
VFD701 996500041321 VFD DISPLAY
Q 994000005215 LED DIODE RED 2R3JSD-UR101
IC701 996510000500 IC PT6311/SC16311/CD16311
S701 996510002905 IR SENSOR
SW701 994000004963 LIGHT TOUCH SW. TC103 H5
CPU PCB ASS'Y MCM700
B1 ! 996510002975 TRANSFORMER EE13 5V Note: Only these parts mentioned in the list are
D2 996510002976 DIODE FR104 normal service parts.
IC801 996510003049 CPU U252 MCU PARTS ASS'Y
IC802 994000004955 IC AC6811(RDS) /12
IC803 994000004951 IC 24C01A-SC27
IC806 994000005147 IC PT2579-SN SMALL
IC807 996510000498 IC 7806CT
IC808 996510002918 IC PCF8563 SOP8
Q1 994000004928 TRANSISTOR 8050C-5
Q2 994000004928 TRANSISTOR 8050C-5
Q807 994000004938 TRANSISTOR 2SB772A
X800 994000005497 CRYSTAL OSC. 4.332 49S MHZ
X801 994000004945 CER. FILTER FREQUENCY 4.19MHZ
X803 996510000012 CRYSTAL OSC FREQ.32.768KHz
SERVO PCB ASS'Y M5671U-A1 (only for reference)
Q1 996510002980 CHIP RESISTOR 8550C (SOT-89)
Q2 996510002980 CHIP RESISTOR 8550C (SOT-89)
R3 996510002943 CARBON FILM RESISTOR 10 1/2W
U1 996510002985 IC SA1469PH(HOP-28)
U3 996510002982 IC PP5100 TQFP-48
U4 996510002983 IC M5671(QFP-128)
U5 996510005749 IC KS161622D SOP50
U7 996510000010 IC LM7805/LM340T5 7805
13-2
L1 996510019915 FIXED INDUCTOR 200UH 6X5
