Philips MMS 430 - Functional Overview; Front and Rear Panels

3139 246 14854
English
11

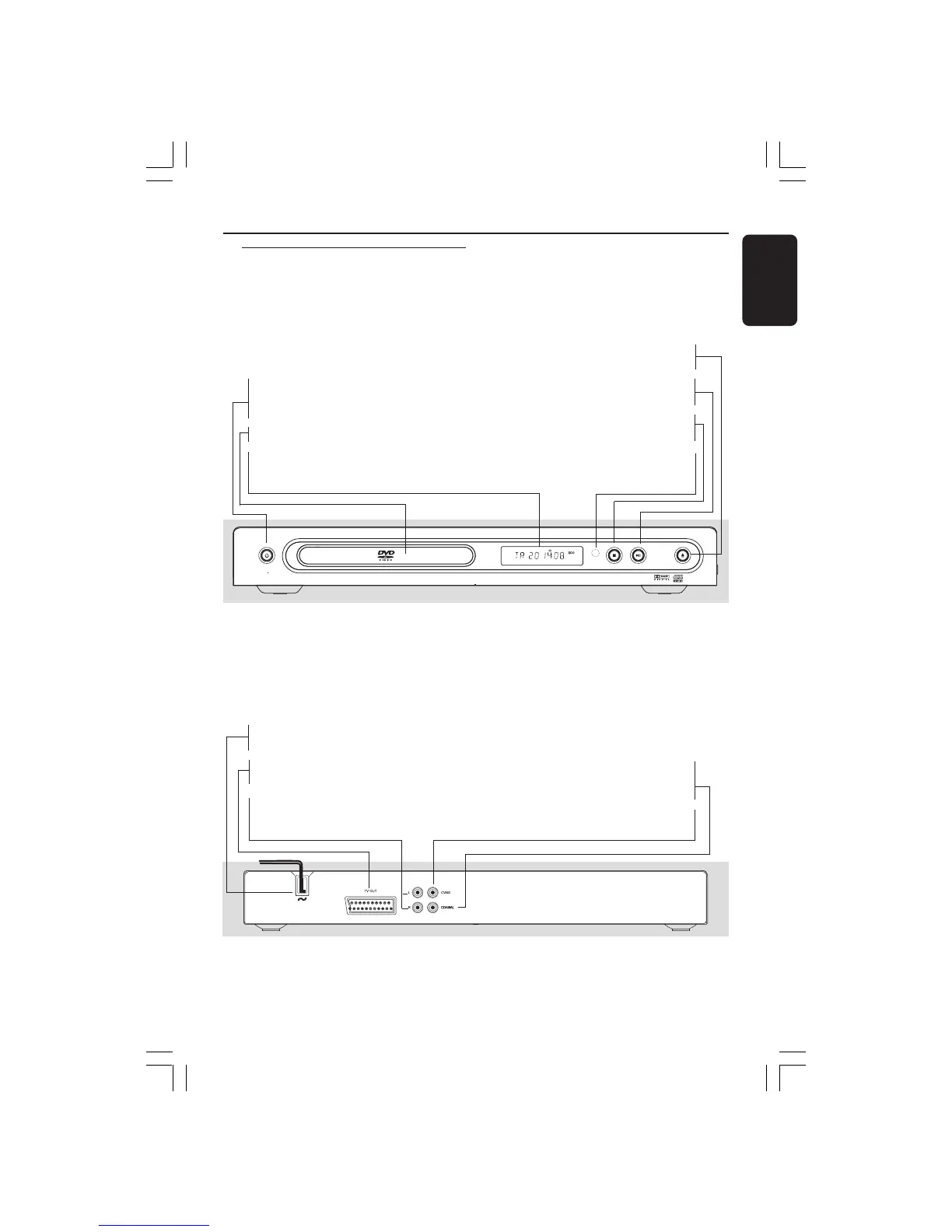

Functional Overview
Front and Rear Panels
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input of a
digital audio equipment
CVBS (VIDEO Out)
– Connect to CVBS Video input of a TV
OPEN/CLOSE
OPEN/CLOSE
MIC
LEVEL
STOP
STOP
PLAY/
PLAY/
PAUS E
PAUSE
IR
DVD VIDEO / CD PLAYER
STANDBY
TANDBY
-ON
ON
Mains (AC Power Cord)
– Connect to a standard AC outlet
Scart
– Connect to Scart input of a TV
Audio Out (Left/Right)
– Connect to AUDIO inputs of an amplifier,
receiver or stereo system
OPEN/CLOSE /
– Open/Close the disc tray
2; PLAY/PAUSE
– To start or interrupt playback
9 STOP
– To stop playback
IR Sensor
– Point the remote control towards this
sensor
STANDBY-ON B
– To switch the DVD Player to Standby
mode or ON
Disc tray
Display
– Shows the current status of the DVD
Player
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
