Front Schematic Diagram < VCR Section >
1-12-55
1-12-56
E9015SCF

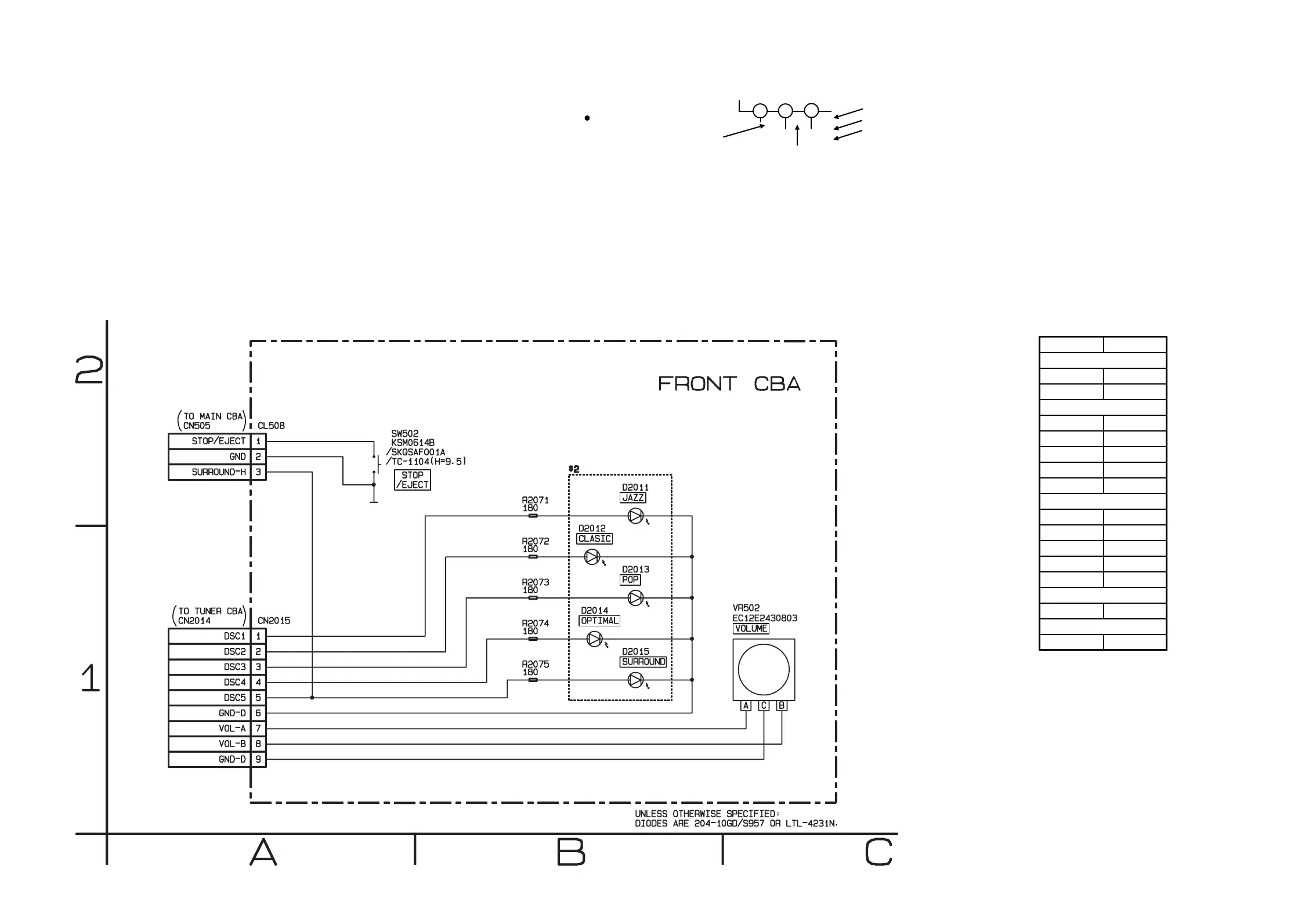

FRONT Schematic Diagram
Parts Location Guide
Ref No. Position
CL508 A-2
CN2015 A-1
D2011 B-2
D2012 B-1
D2013 B-1
D2014 B-1
D2015 B-1
R2071 B-2
R2072 B-1
R2073 B-1
R2074 B-1
R2075 B-1
SW502 A-2
VR502 C-1
CONNECTOR
SWITCH
VARIABLE RESISTOR
RESISTORS
DIODES
ā ā = SMD
THE SAME VOLTAGE FOR BOTH
PLAY, REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
<5.0>
~
DVD MODE
Note:
When replacing one of the following parts,
all of them should be replaced: D2011, D2012, D2013, D2014, D2015.
*
