Philips MX5100VR/00 - Page 73

1-12-57 1-12-58

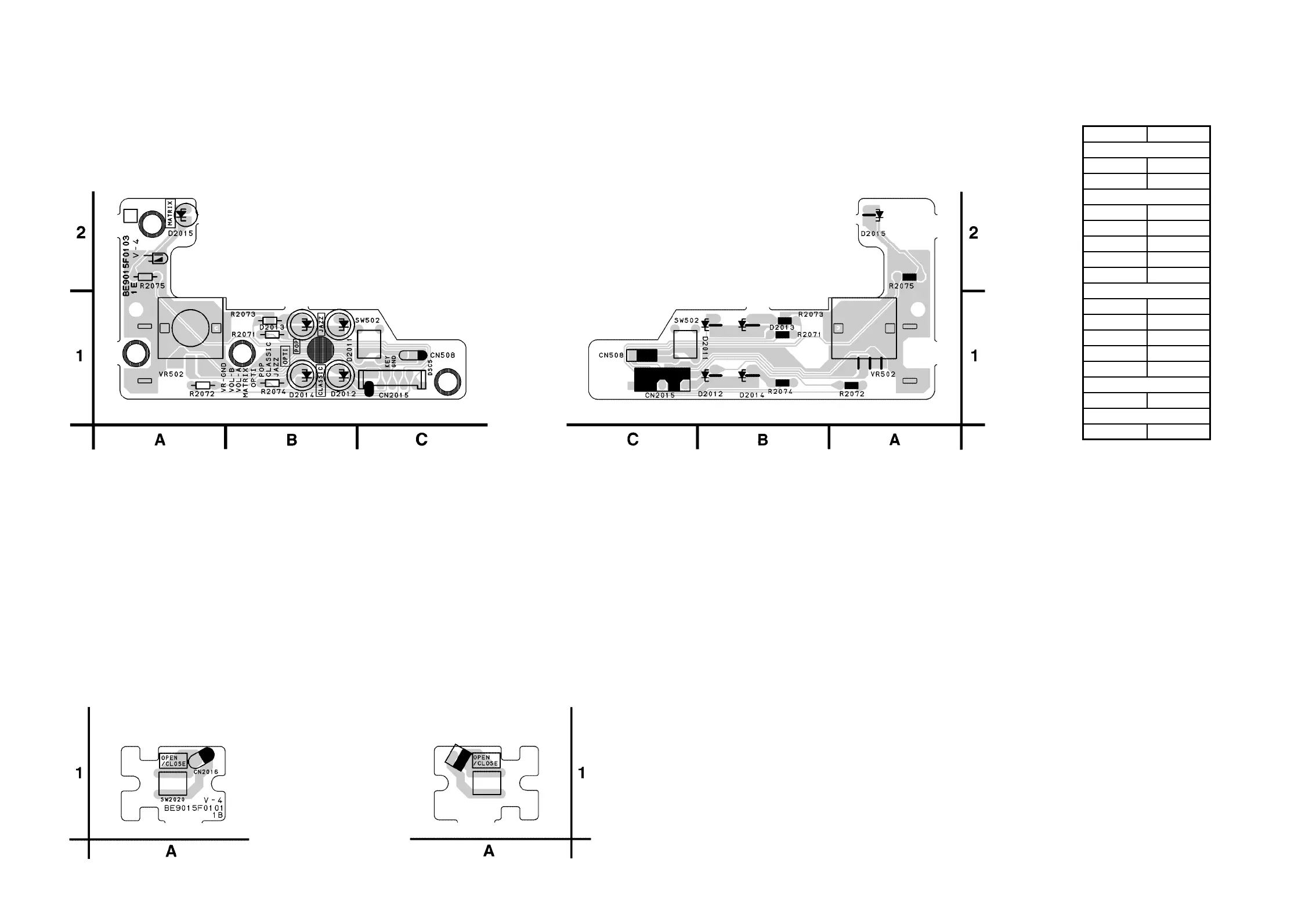

Front CBA Top View
BE9015F01031B
Front CBA Bottom View
DVD OPEN/CLOSE CBA Top View DVD OPEN /CLOSE CBA Bottom View
BE9015F01011B
FRONT CBA
Parts Location Guide
Ref No. Position
CL508 C-1
CN2015 C-1
D2011 B-1
D2012 B-1
D2013 B-1
D2014 B-1
D2015 A-2
R2071 B-1
R2072 A-1
R2073 B-1
R2074 B-1
R2075 A-2
SW502 C-1
VR502 A-1
CONNECTOR
SWITCH
VARIABLE RESISTOR
DIODES
RESISTORS
