Philips MX5100VR/00 - Page 78

1-12-67
1-12-68

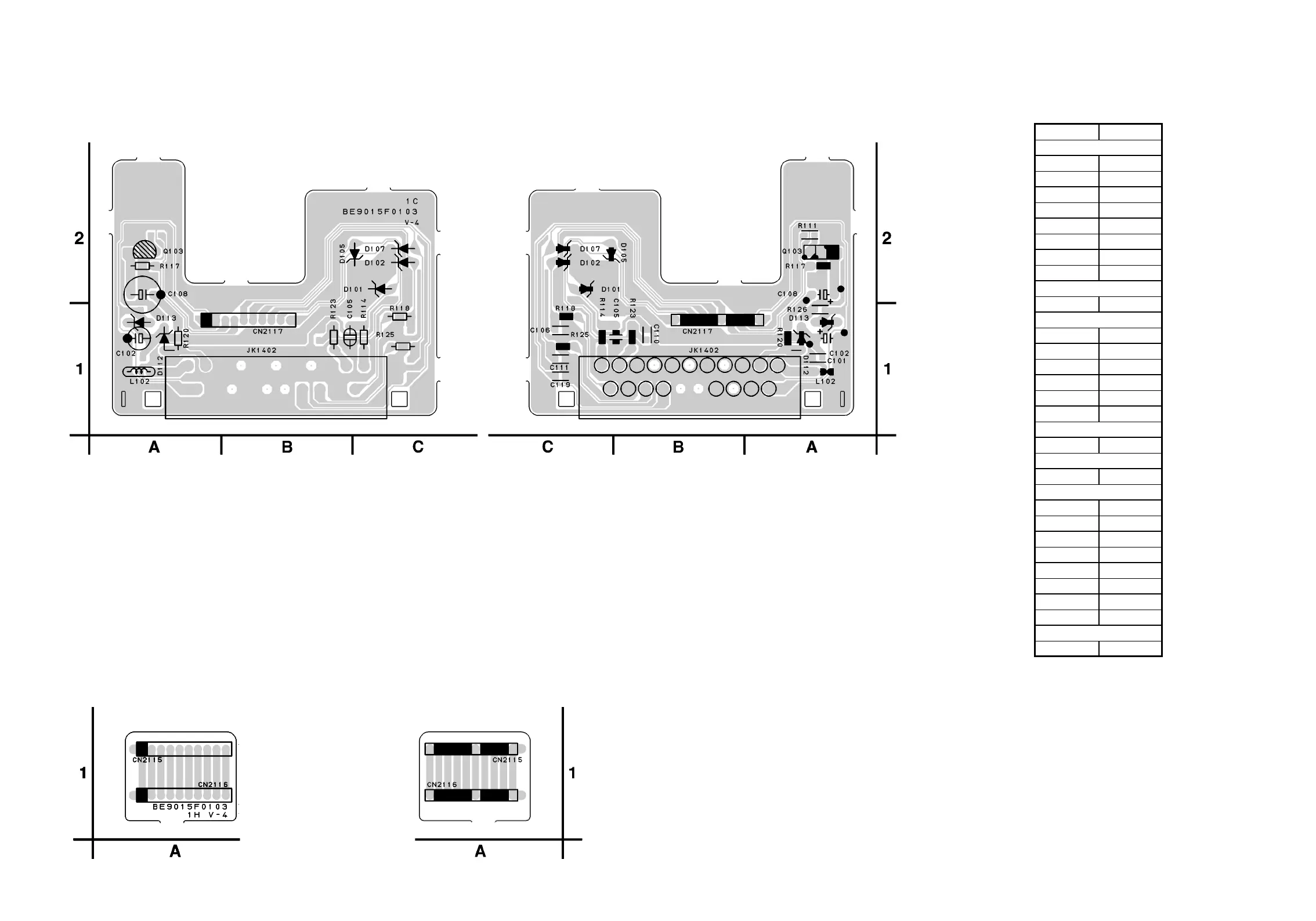

Junction-B CBA Top View Junction-B CBA Bottom View
BE9015F01031H
Jack-B CBA Top View Jack-B CBA Bottom View
BE9015F01031C
JACK-B CBA
Parts Location Guide
Ref No. Position
C101 A-1
C102 A-1
C105 B-1
C106 C-1
C108 A-2
C110 B-1
C111 C-1
C119 C-1
CL2117 B-1
D101 C-2
D102 C-2
D105 B-2
D107 C-2
D112 A-1
D113 A-1
L102 A-1
Q103 A-2
R111 A-2
R114 C-1
R117 A-2
R118 C-1
R120 A-1
R123 B-1
R125 C-1
R126 A-1
JK1402 B-1
COIL
TRANSISTOR
RESISTORS
MISCELLANEOUS
CONNECTOR
CAPACITORS
DIODES
