Philips MX5100VR/00 - Page 81

1-12-73 1-12-74

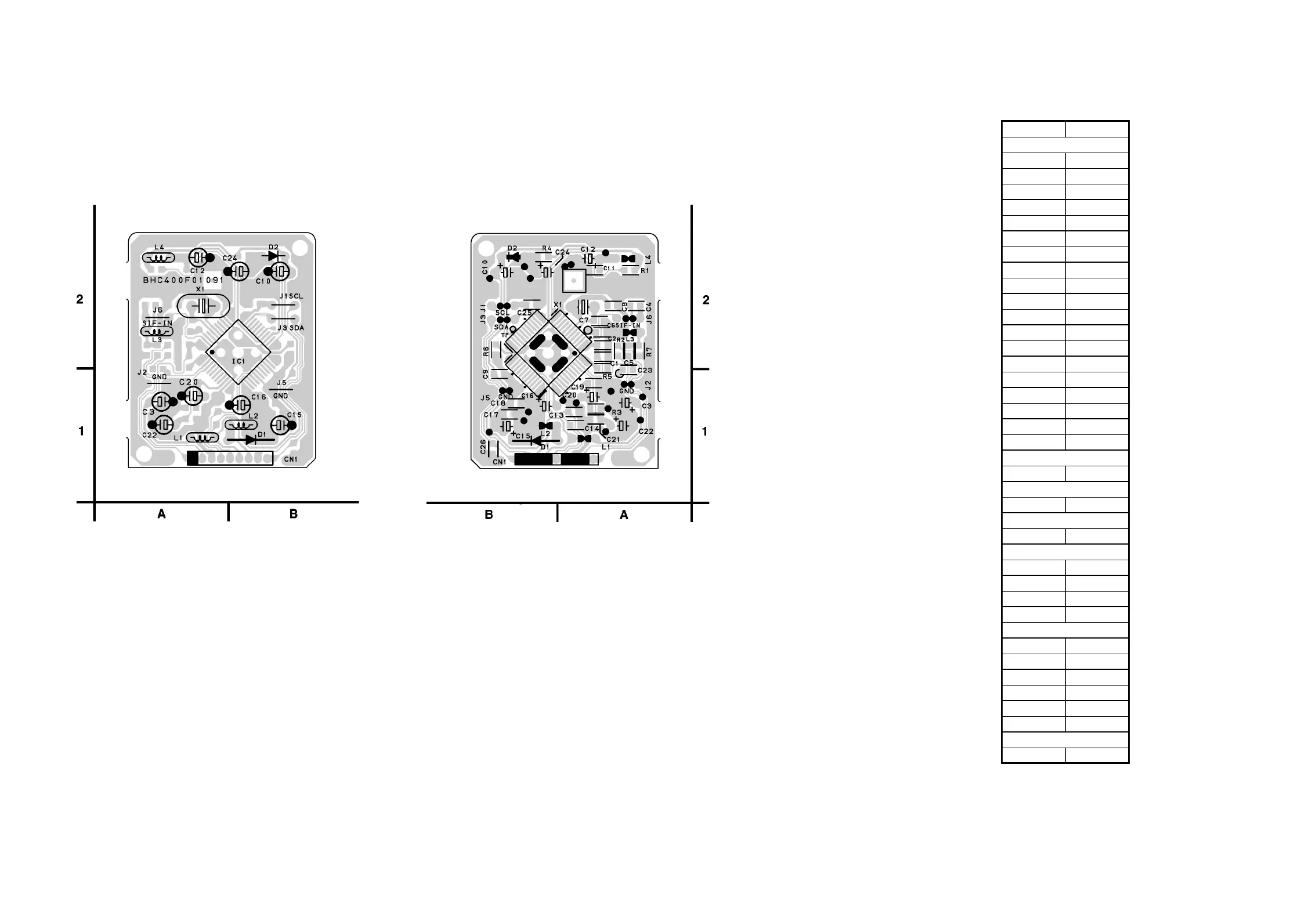

AFV CBA Top View AFV CBA Bottom View
BHC400F01091
AFV CBA
Parts Location Guide
Ref No. Position
C1 A-2
C4 A-2
C5 A-2
C6 A-2
C7 A-2
C8 A-2
C11 A-2
C12 A-2
C13 A-1
C14 A-1
C15 B-1
C16 B-1
C17 B-1
C19 B-1
C20 A-1
C21 A-1
C22 A-1
C23 A-1
C24 A-2
CN1 B-1
D2 B-2
IC1 B-2
L1 A-1
L2 B-2
L3 A-2
L4 A-2
R1 A-2
R2 A-2
R4 B-2
R5 A-1
R6 B-2
R7 A-2
X1 A-2
COILS
MISCELLANEOUS
RESISTORS
CONNECTOR
DIODE
IC
CAPACITORS
