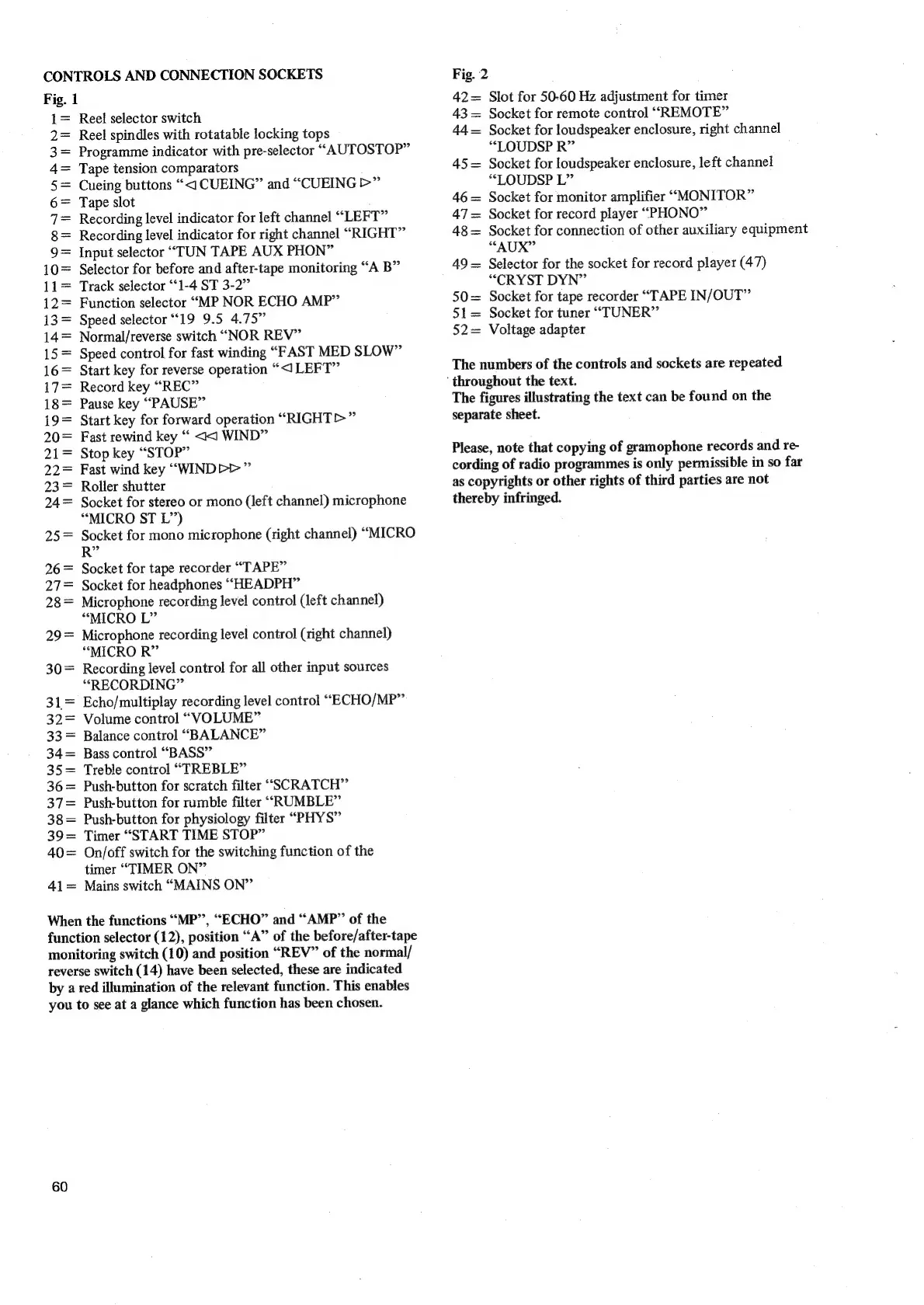

CONTROLS AND CONNECTION SOCKETS
Fig. 1
1= Reel selector switch
2= Reel spindles with rotatable locking tops
3= Programme indicator with pre-selector “AUTOSTOP”
4= Tape tension comparators
5=
Cueing
buttons
“<]
CUEING”
and
“CUEING
>”
6= Tape slot
7= Recording level indicator for left channel ““LEFT”
8= Recording level indicator for right channel “RIGHT”
9= Input selector “TUN TAPE AUX PHON”
10= Selector for before and after-tape monitoring “A B”
11= Track selector “1-4 ST 3-2”
12= Function selector “MP NOR ECHO AMP”
13= Speed selector “19 9.5 4.75”
14= Normal/reverse switch “NOR REV”
15=
Speed
control
for
fast
winding
“FAST
MED
SLOW”
16= Start key for reverse operation “<] LEFT”
17= Record key “REC”
18= Pause key “PAUSE”
19= Start key for forward operation “RIGHT >”
20= Fast rewind key “ << WIND”
21= Stop key “STOP”
22= Fast wind key “WINDP>”
23= Roller shutter
24= Socket for stereo or mono (left channel) microphone
“MICRO ST L”)
25= Socket for mono microphone (right channel) “MICRO
R”
26= Socket for tape recorder “TAPE”
27= Socket for headphones ‘““HEADPH”
28= Microphone recording level control (left channel)
“MICRO L”
29=
Microphone
recording
level
control
(right
channel)
“MICRO
R”
30=
Recording
level
control
for
all
other
input
sources
“RECORDING”
31=
Echo/multiplay
recording
level
control
“ECHO/MP”
32= Volume control “VOLUME”
33= Balance control “BALANCE”
34= Bass control “BASS”
35= Treble control “TREBLE”
36= Push-button for scratch filter “SCRATCH”
37= Push-button for rumble filter “RUMBLE”
38= Push-button for physiology filter “PHYS”
39= Timer “START TIME STOP”
40= On/off switch for the switching function of the
timer “TIMER ON”
41= Mains switch “MAINS ON”
When the functions “MP”, “ECHO” and “AMP” of the
function selector (12), position “A” of the before/after-tape
monitoring switch (10) and position “REV” of the normal/
reverse switch (14) have been selected, these are indicated
by a red illumination of the relevant function. This enables
you to see at a glance which function has been chosen.
60
Fig. 2
42= Slot for 50-60 Hz adjustment for timer
43 = Socket for remote control “REMOTE”
44= Socket for loudspeaker enclosure, right channel
“LOUDSP R”
45= Socket for loudspeaker enclosure, left channel
“LOUDSP L”
46= Socket for monitor amplifier “MONITOR”
47= Socket for record player “PHONO”
48= Socket for connection of other auxiliary equipment
“AUX”
49 = Selector for the socket for record player (47)
“CRYST DYN”
50= Socket for tape recorder “TAPE IN/OUT”
51= Socket for tuner “TUNER”
52= Voltage adapter
The numbers of the controls and sockets are repeated
throughout the text.
The figures illustrating the text can be found on the
separate sheet.
Please,
note
that
copying
of
gramophone
records
and
re-
cording
of
radio
programmes
is
only
permissible
in
so
far
as
copyrights
or
other
rights
of
third
parties
are
not
thereby
infringed.
