Philips N4520 - Position of Boards N452 X

www.reeltoreel.nl Philip van der Matten ver 4.0 | 24 apr 2024 | page 3/11

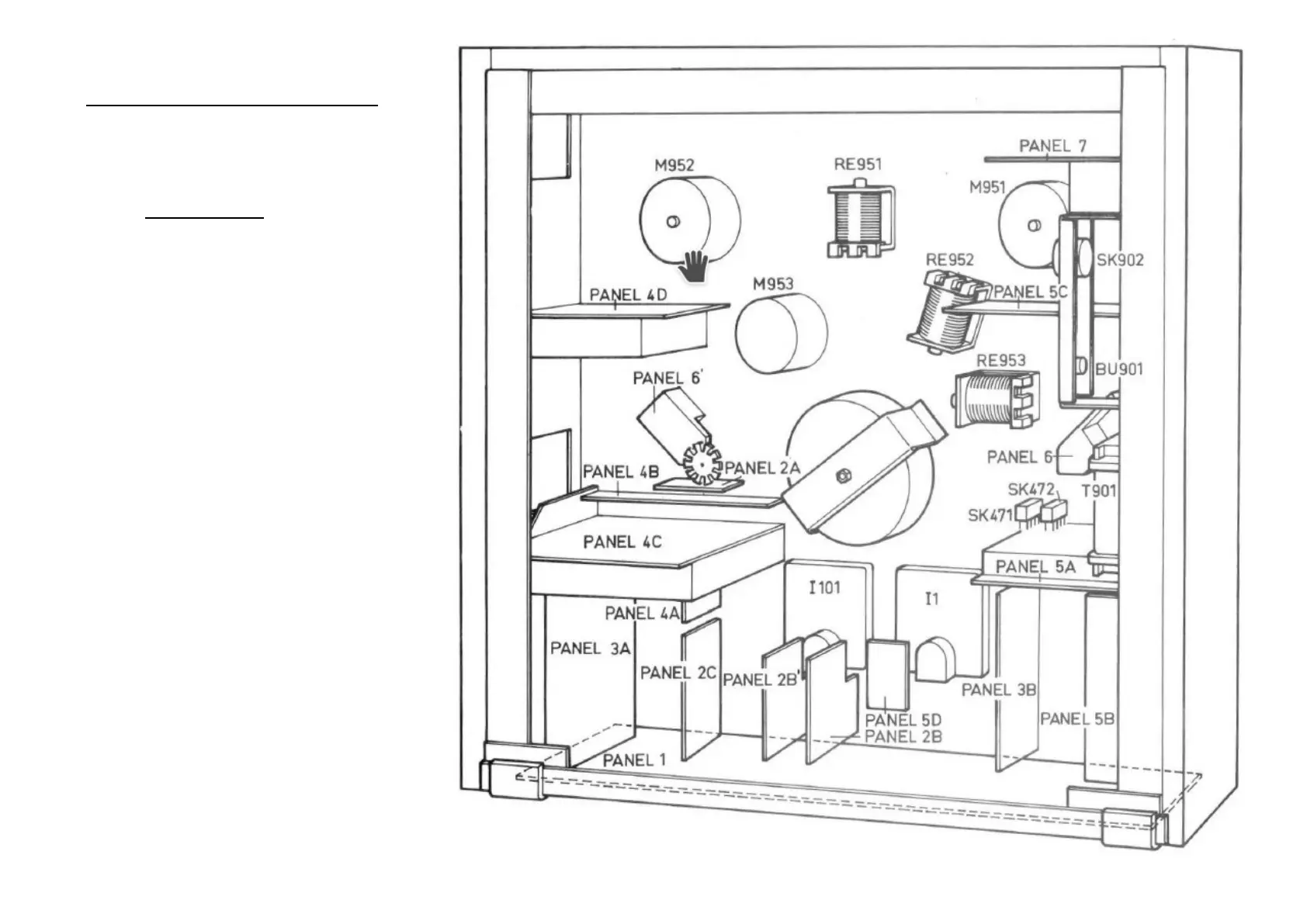

Position of boards N452X:
# description
1 audio main board
2A opto-print
2B rec/pb amp L/R
2C oscillator
3A headphone amp
3B pre amp
4A winding speed pot
4B cue buttons
4C control
4D motor control
5A counter
5B power supply
5C capstan motor
5D indicator
6 tension control L/R
7 power supply
