5.0 TROUBLESHOOTING & SERVICE TIPS

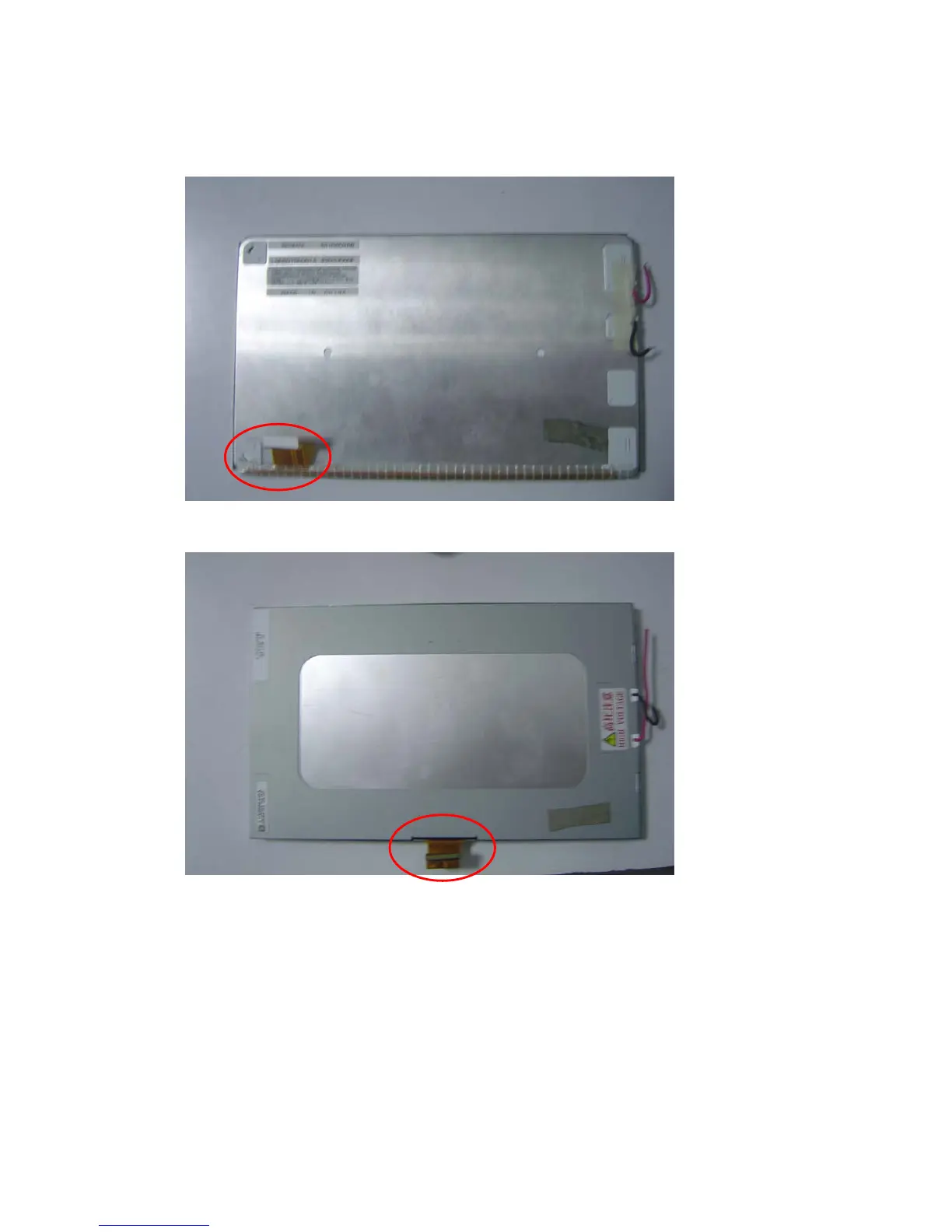

5.2 Identification Method on Sharp and Panasonic TFT LCD (For PET800)
• Sharp panel - data cable jack is under the TFT and left side, the jack is 32pin
• Panasonic panel - data cable jack is under the TFT and middle side, the jack is 30pin
