Philips PET800 User Manual

RF AMP & SERVO & DVD PROCESSOR
MPEG-2 DECODER & VIDEO ENCODER
D3800

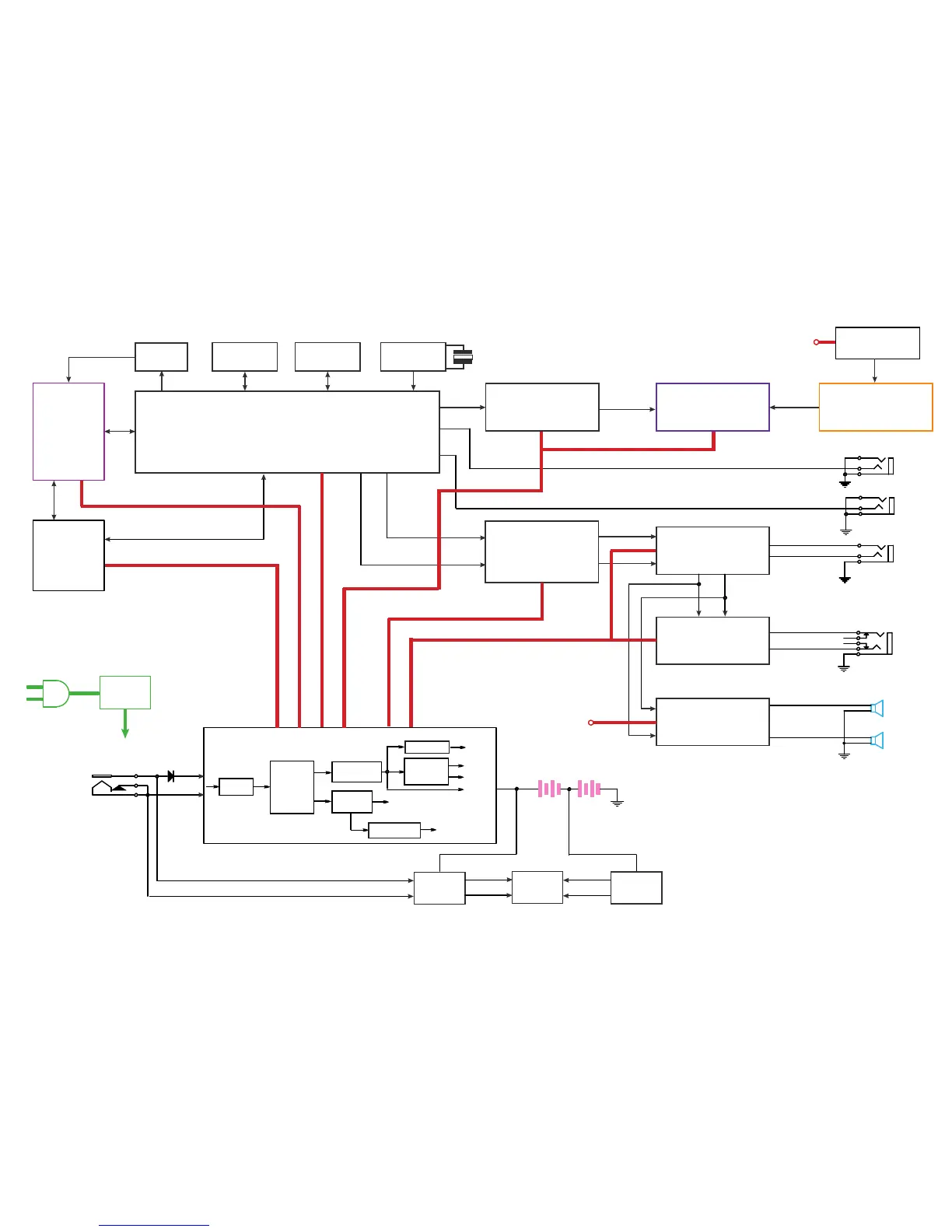

6.0 OVERALL BLOCK DIAGRAM
AC
Adapter
DC IN +9V
DC / DC
(BQ2057C)
(TPC8207)
(VG202C)
110~240V
50/60Hz
BATTERY
DV23
PU mechanism
DRIVER
(BA5954FP)
8M FlashROM
MX29LV008TTC-70
64M SDRAM
NT56V6620C0T-75S
TC4W53
27MHz
AUDIO D/A
(PCM1742)
UPD5100
TFT MONITOR
AUDIO AMP
(NJM4558)
PHONE AMP
(NJM4580)
SPEAKER AMP
(D2822)
HIGH VOLTAGE ASS'Y
74HCU04
27MHz
VIDEO OUT
AUDIO OUT
PHONE OUT
SPEAKER LOUT
SPEAKER ROUT
L
R
L
R
R
L
DRIVER +5V
+5V
AUDIO +/-5V
+3.3V
AUDIO +5V
TFT POWER
+3.3V +5V -14.5V +16V
COAXIAL OUT
DC 9V
DC 9V
R1224
IRF7304
PQ05DZ11
BA033
TPS5100
TFT VDD
16V
-14.5V
5V
MPEG3.3V
MPEG1.8V
G1117-1.8
PQ1R33
3.3V
OSCILLATOR
OZ960
+1.8V

Philips PET800 Specifications

Picture and Display

display screen type	LCD TFT
diagonal screen size	8 inch
resolution	480(w)x234(H)x3(RGB)
brightness	400 cd/m²
contrast ratio	250:1

Sound

output power (built-in speakers)	250mW RMS
output power (earphone)	10mW RMS
signal to noise ratio (earphone)	>80dB
signal to noise ratio (built-in speakers)	62dB

Connectivity

audio output - analog	Audio L/R (cinch)
audio output - digital	Coaxial (cinch)
video output - analog	Video (3.5mm jack) 1x
connector	2 x 3.5 mm Headphones
DC in	9V

Battery and Power

battery pack	DV 9V, Li-ion rechargeable batteries
AC/DC adaptor	ADPV18A(110-240v, 50/60Hz)
car kit	cigarette outlet adaptor, 12vDC
battery life	3 hours

Dimensions and Weight

master carton dimensions	390 x 330 x 280 mm
master carton weight	4.8 kg
packaging dimensions (W x H x D)	390 x 250 x 150 mm
product dimensions (W x H x D)	220 x 29 x 155 mm
product weight	0.9 kg
