Tamperproof or Vandal Resistant Shielding Option –

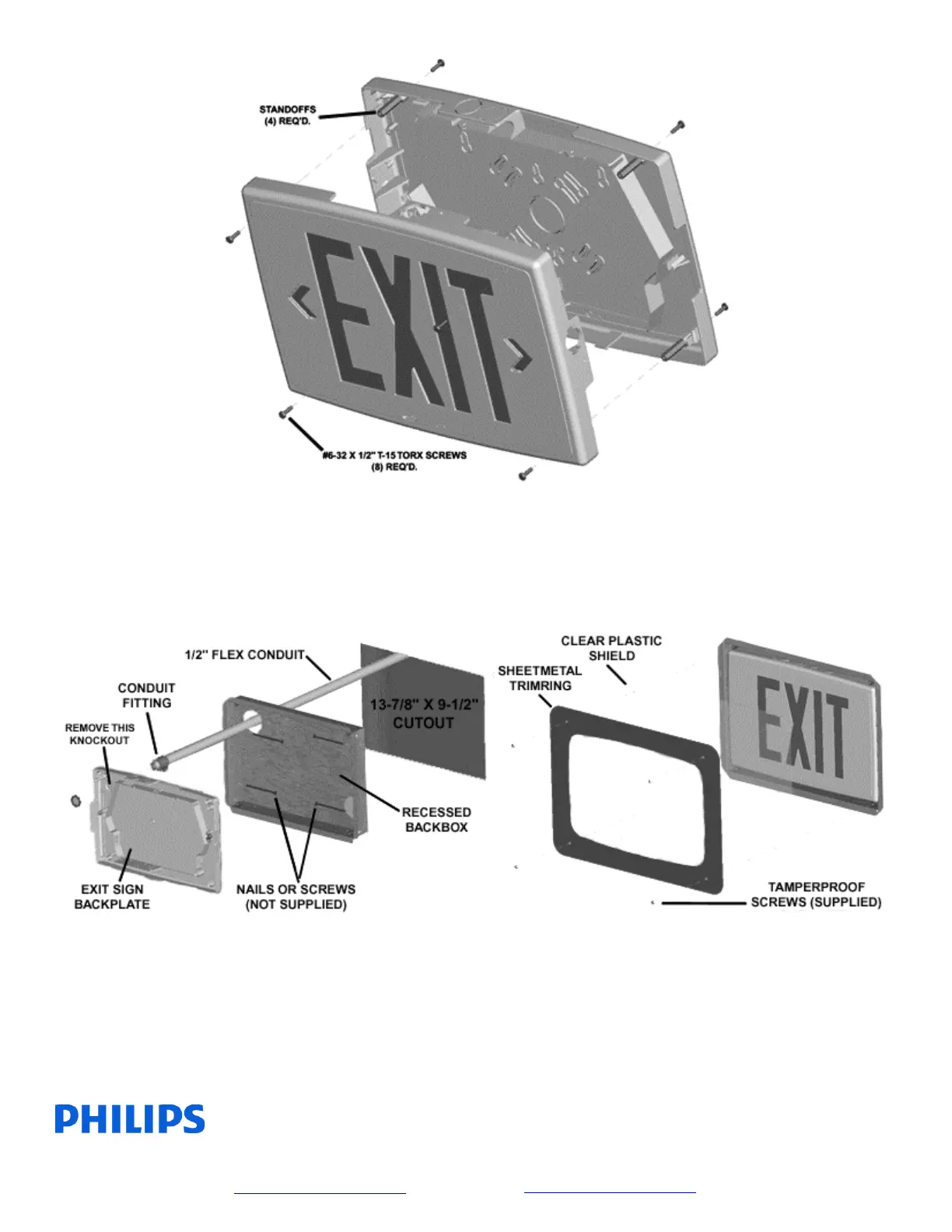

Place one standoff in the provided pocket in each corner of the backplate or extra stencil. Drive a #6
tamperproof screw thru each corner and into the standoff. Follow the Step 2 appropriate for the desired
mounting style. After snapping the stencil/electronics assembly to the backplate or extra stencil, drive
the remaining four Torx screws thru the corners of the stencil/electronics assembly to finish the
installation (if vandal resistant shield option has been ordered, use the Torx screws to also attach the
clear shield to each stencil face).
Recessed Mounting Option –
Make a 13-7/8” x 9-1/2” cutout in the mounting surface. Secure the backbox with nails or screws to the
stud structure. Route ½” flex conduit into the upper left hole in the backbox. Remove the 7/8” diameter
knockout found in the upper left corner of the backplate as shown. Secure conduit fitting thru this
knockout. Place backplate in backbox and make AC service connections as noted earlier in this
instruction sheet. Snap EXIT stencil with electronics to backplate. Refer to “Operating Instructions” to
confirm proper operation of the product. Remove protective film from both sides of the clear plastic
