Philips SDV2940/05
Indoor/Outdoor UHF/VHF Television Aerial
Important installation information
The SDV2940/05 uses a power injection module to power the aerial ampli-
fier.
It is essential for proper operation of this aerial system that the amplifier be
connected between the aerial and any devices such as splitters, matching

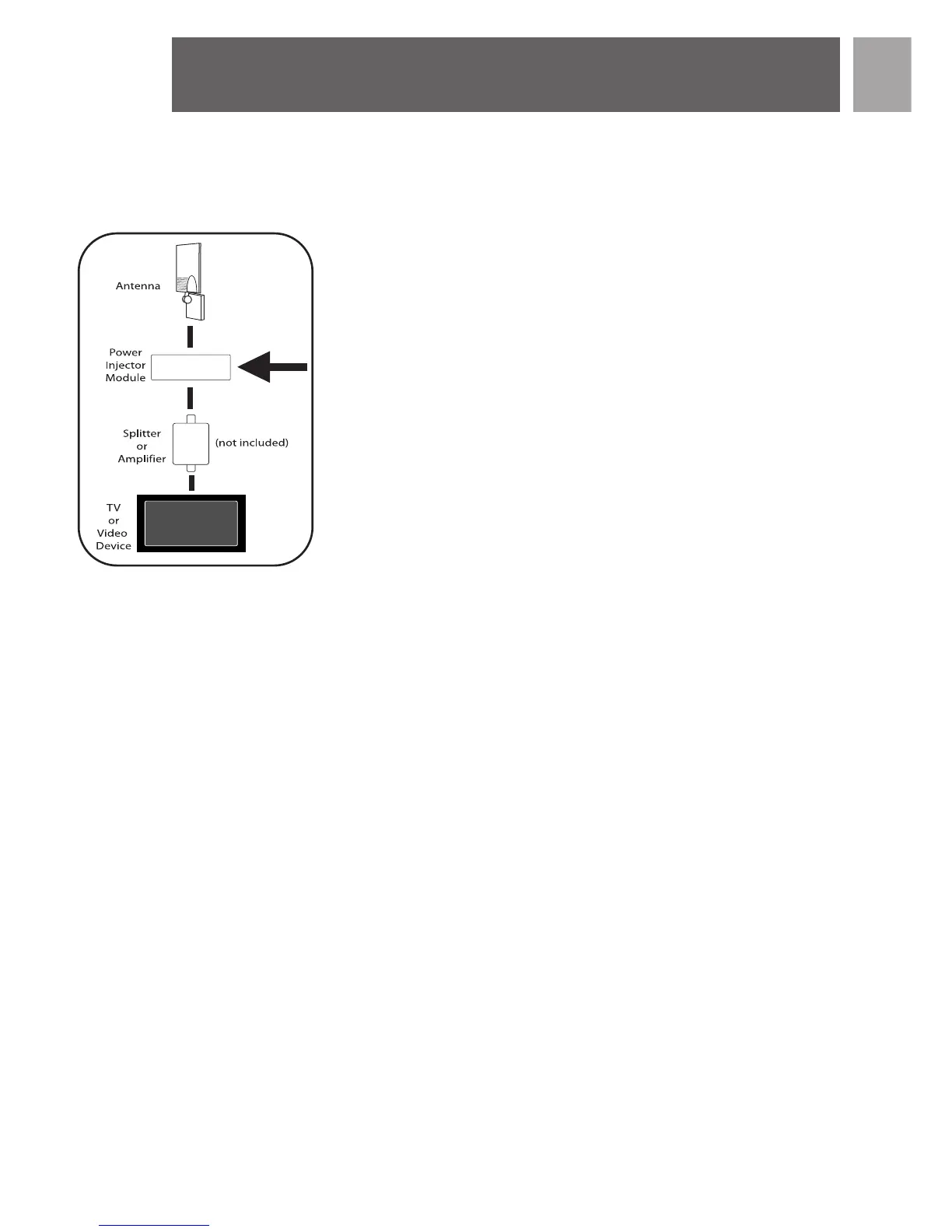

transformers, networks, etc. SEE DIAGRAM TO LEFT.
Disregarding this important notice may result in damaging the power injec-
tor or improper operation / poor performance.
Parts included:
1. SDV2940 Aerial . . . . . . . . . . . . . . . . .1
2. Power supply 230V to 6VDC . . . . .1
3. Wall / Mast Bracket . . . . . . . . . . . . . .1
4. Nuts . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. U-Bolts . . . . . . . . . . . . . . . . . . . . . . . .2
6. Mast clamps . . . . . . . . . . . . . . . . . . . .2
7. Nuts with lock washers . . . . . . . . . .4
7. L-Bracket . . . . . . . . . . . . . . . . . . . . . .1
8. 50mm Wood Screws . . . . . . . . . . . . .4
9. 6m coax cable with connectors . . . .1
10. Weather Boot . . . . . . . . . . . . . . . . . .1
11. Power Injector . . . . . . . . . . . . . . . . . .1
12. Plastic Anchors . . . . . . . . . . . . . . . . . .4
13. IEC to ‘F’ Connector . . . . . . . . . . . . .1
Determining signal strength
Before Installation determine the best location for optimum reception. It is
important for the aerial to have an unobstructed path to the transmitter.
For best results the aerial should be facing the transmitter location.
For digital television reception
To determine that you are within digital TV coverage check this web-site:
http://www.dtg.org.uk/consumer/coverage.html
You can also get more information about channels and transmitter loca-
tions to help in aiming the aerial here:
http://www.dtg.org.uk/retailer/transmitters.html
