March 1994 2
Philips Semiconductors Preliminary specification
Triple video output amplifier TDA6103Q
FEATURES
• High bandwidth: 7.5 MHz typical; 60 V (peak-to-peak
value)
• High slew rate: 1600 V/µs
• Simple application with a variety of colour decoders
• Only one supply voltage needed
• Internal protection against positive appearing
Cathode-Ray Tube (CRT) flashover discharges
• One non-inverting input with a low minimum input
voltage of 1 V
• Thermal protection
• Controllable switch-off behaviour.
GENERAL DESCRIPTION
The TDA6103Q includes three video output amplifiers in
one single in-line 9-pin medium power (SIL9MP) package
SOT111BE, using high-voltage DMOS technology,
intended to drive the three cathodes of a colour CRT.
ORDERING INFORMATION
BLOCK DIAGRAM
EXTENDED TYPE
NUMBER
PACKAGE
PINS PIN POSITION MATERIAL CODE
TDA6103Q 9 DBS9 plastic SOT111BE

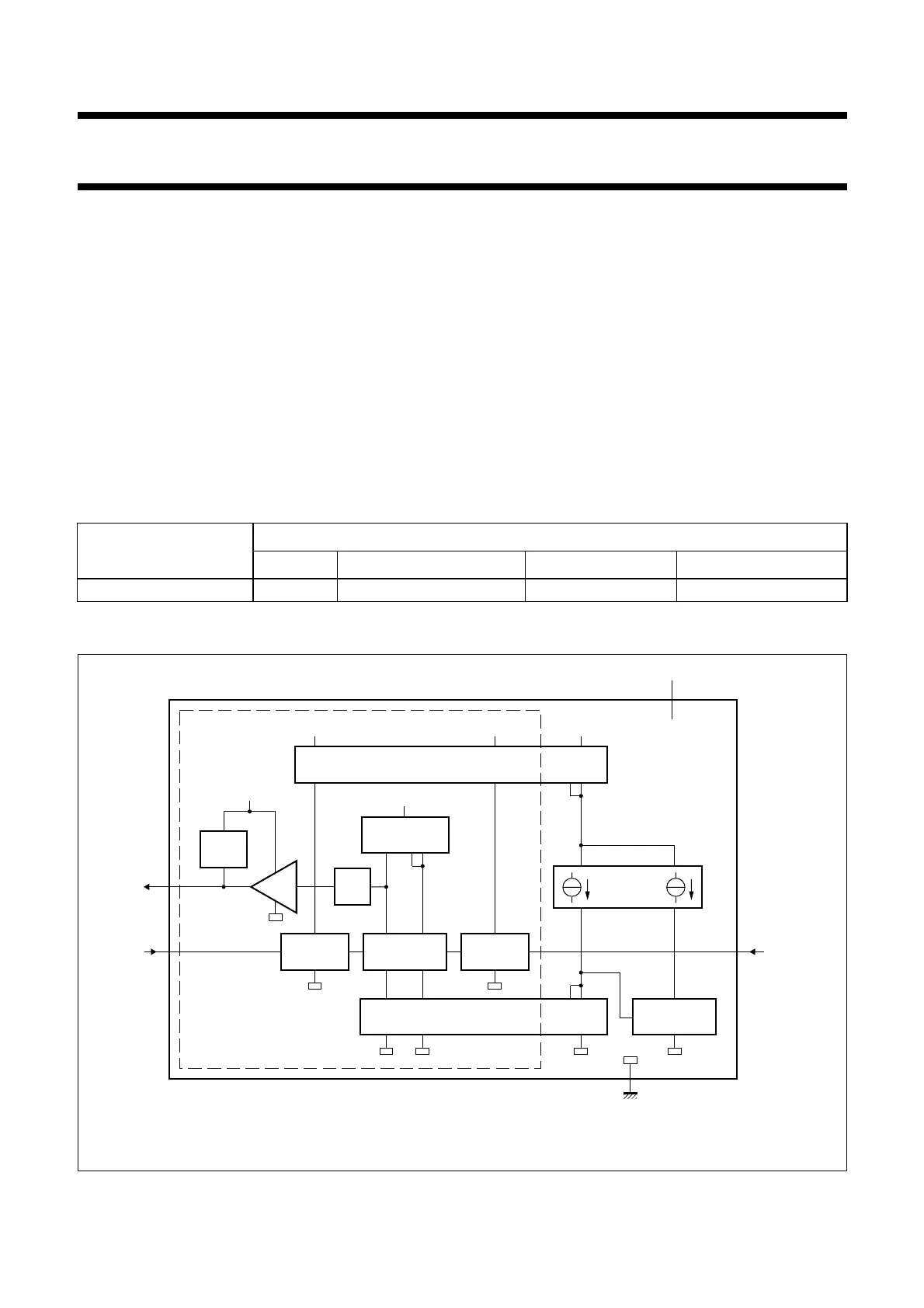

Fig.1 Block diagram (one amplifier shown).
FLASH-
DIODE
MIRROR 3
LEVEL-
SHIFTER 1
DIFFERENTIAL
STAGE
V
DD
1x
THERMAL
PROTECTION
V
DD
V
bias
CURRENT
SOURCES
MIRROR 2
V
DD
MIRROR 1
LEVEL-
SHIFTER 2
9,8,7
1,2,3
V
DD
V
DD
inverting
input
(3x)
V
oc
(3x)
non-inverting
input
V
ip
5
4
6
V
DD
GND
MGA968
3x
TDA6103Q
