2.3 Connections

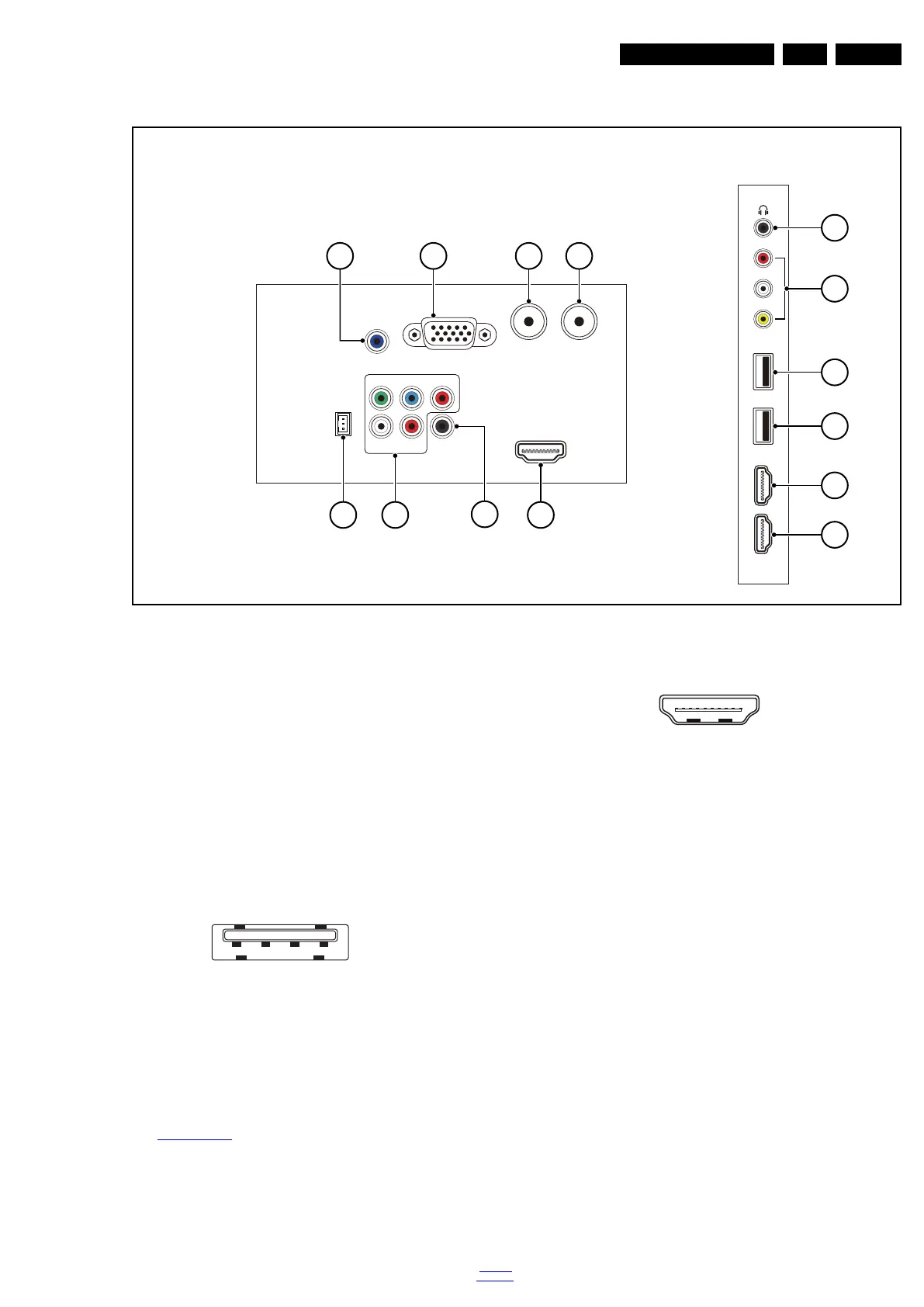

Figure 2-1 Connection overview
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Head phone (Output)
Bk - Head phone 80 - 600  / 10 mW ot
2 - Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75  jq
Rd - Audio R 0.5 V
RMS
/ 10 k jq
Wh - Audio L 0.5 V
RMS
/ 10 k jq
3 - USB2 2.0
Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
4 - USB1 2.0
See 3 - USB2 2.0
5, 6 - HDMI: Digital Video - In, Digital Audio - In/Out
Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2-Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5-Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8-Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
2.3.2 Rear Connections
7 - TV ANTENNA - In
Signal input for cable signals.
8 - TV ANTENNA - In
Signal input for air signals.
VGA
SPDIF
OUT
LR
YPb
Pr
SERV.U
AUDIO IN
DVI/VGA
ARC
HDMI 3
ANTENNA
IN 2
(CABLE)
ANTENNA
IN 1
(AIR)
HDMI 1
HDMI 2
USB 1
USB 2
L
CVBS
R
19250_104_120329.eps
120329
Side connectorsRear connectors
10
9 8 7
141211
13
4
3
1
5
6
2
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
