Mechanical Instructions
EN 10 Q529.1A LA4.

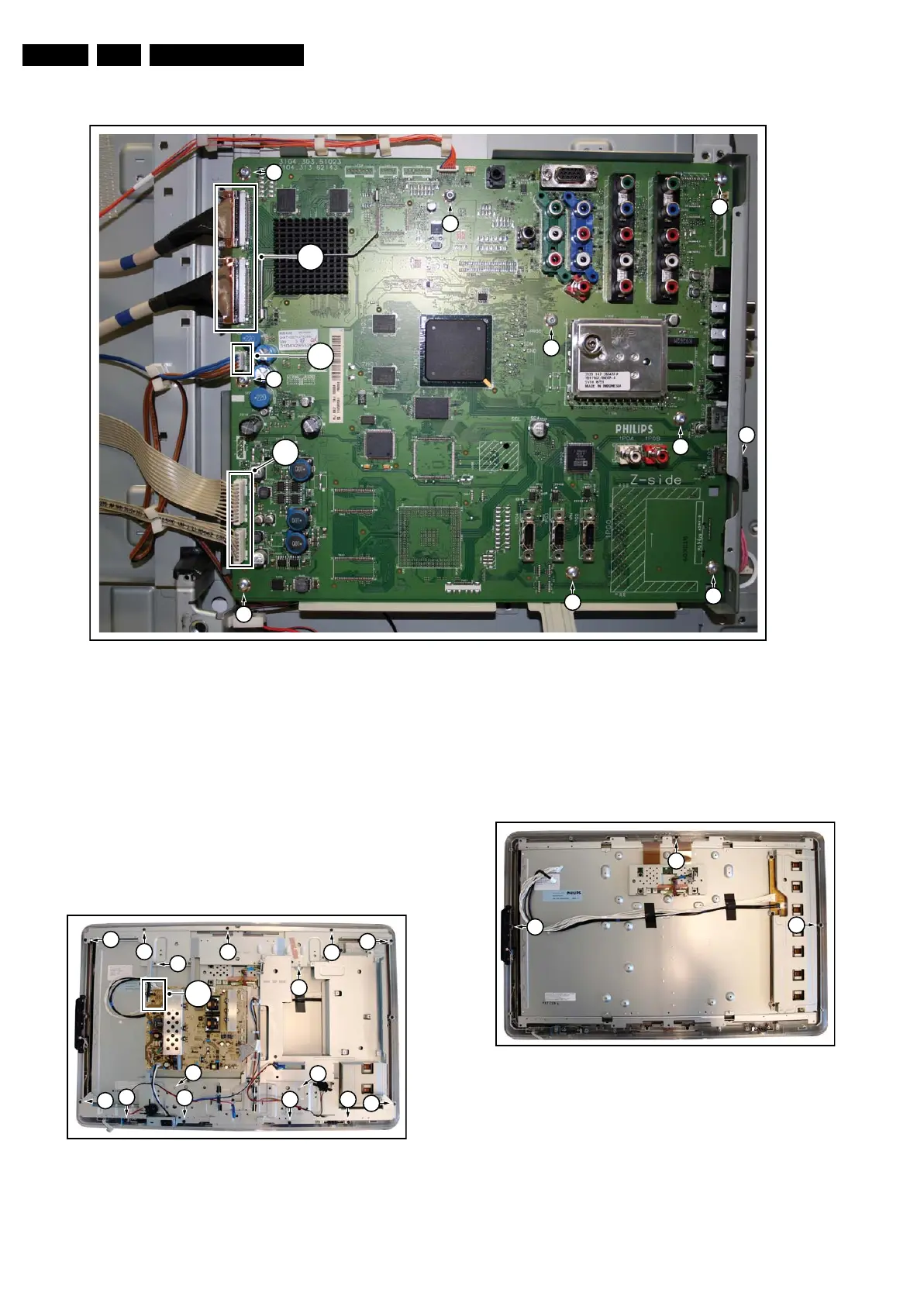

Figure 4-7 Small Signal Board
4.3.6 LCD Panel
Refer to next figure for details.
1. Remove the SSB as described earlier.
2. Remove the Bass-midrange speakers as described earlier.
3. Remove the Tweeters as described earlier.
4. Unplug the connectors [1].
5. Remove the fixation screws [2].
6. Remove the fixation screws [3].
7. Lift out the sub frame.
8. The LCD panel can now be lifted from the front cabinet.
When defective, replace the whole unit.
Figure 4-8 LCD Panel
4.3.7 Rim
Refer to next figure for details.
1. Do all steps as described in the removal of the LCD panel
except the last step.
2. Remove the screws [1], and take out the rim.
Figure 4-9 Rim
I_17670_004.eps
280408
4
4
4
4
4
4
4
4
3
4
2
1
(
2x
)
2
(
2x
)
I_17660_115.eps
130308
2
2
3
2
2
2
22
2
2
2
3
3
3
1
(
2x
)
2
I_17660_116.eps
130308
1
1
1
