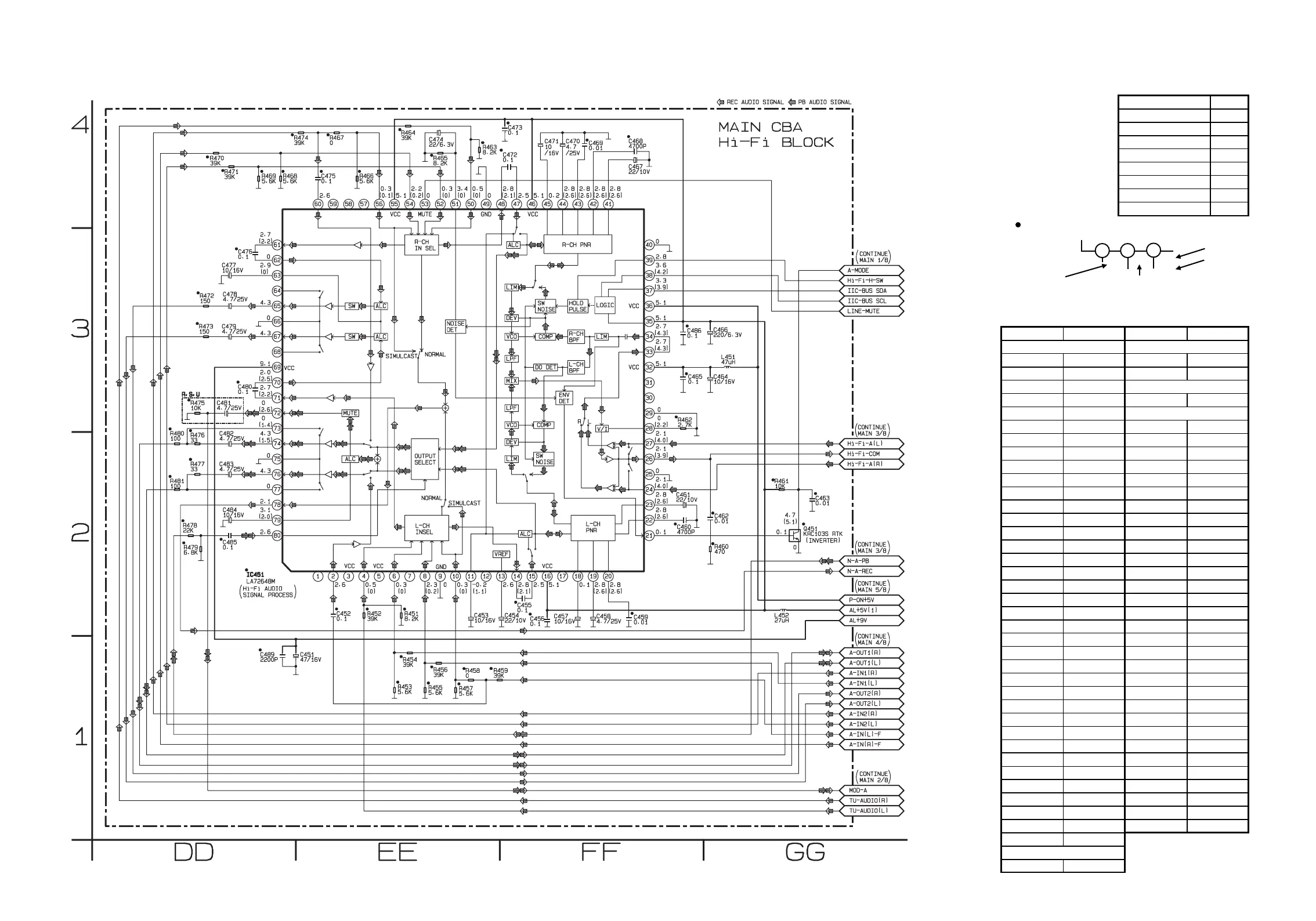

Main 6/8 Schematic Diagram ( R, S, T, U )
1-10-46 1-10-47
HE490SCM6
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
VR140/02 N
VR140/07 O
VR140/39 P
VR140/58 Q
VR840/07 R
VR840/16 S
VR840/39 T
VR840/58 U
MAIN 6/8 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C451EE-1L451GG-3
C452EE-2L452GG-2
C453 EE-2
C454 FF-2 Q451 GG-2
C455 FF-2
C456 FF-2 R451 EE-2
C457 FF-2 R452 EE-2
C458 FF-2 R453 EE-1
C459 FF-2 R454 EE-1
C460 FF-2 R455 EE-1
C461 FF-2 R456 EE-1
C462 GG-2 R457 EE-1
C463 GG-2 R458 EE-1
C464 GG-3 R459 EE-1
C465 FF-3 R460 GG-2
C466 GG-3 R461 GG-2
C467 FF-4 R462 FF-3
C468 FF-4 R463 EE-4
C469 FF-4 R464 EE-4
C470 FF-4 R465 EE-4
C471 FF-4 R466 EE-4
C472 FF-4 R467 EE-4
C473 FF-4 R468 DD-4
C474 EE-4 R469 DD-4
C475 EE-4 R470 DD-4
C476 DD-3 R471 DD-4
C477 DD-3 R472 DD-3
C478 DD-3 R473 DD-3
C479 DD-3 R474 EE-4
C480 DD-3 R475 DD-3
C481 DD-3 R476 DD-2
C482 DD-2 R477 DD-2
C483 DD-2 R478 DD-2
C484 DD-2 R479 DD-2
C485 DD-2 R480 DD-2
C486 FF-3 R481 DD-2
C489 DD-1
IC451 DD-2
RESISTORS
COILS
ICS
CAPACITORS
TRANSISTORS
