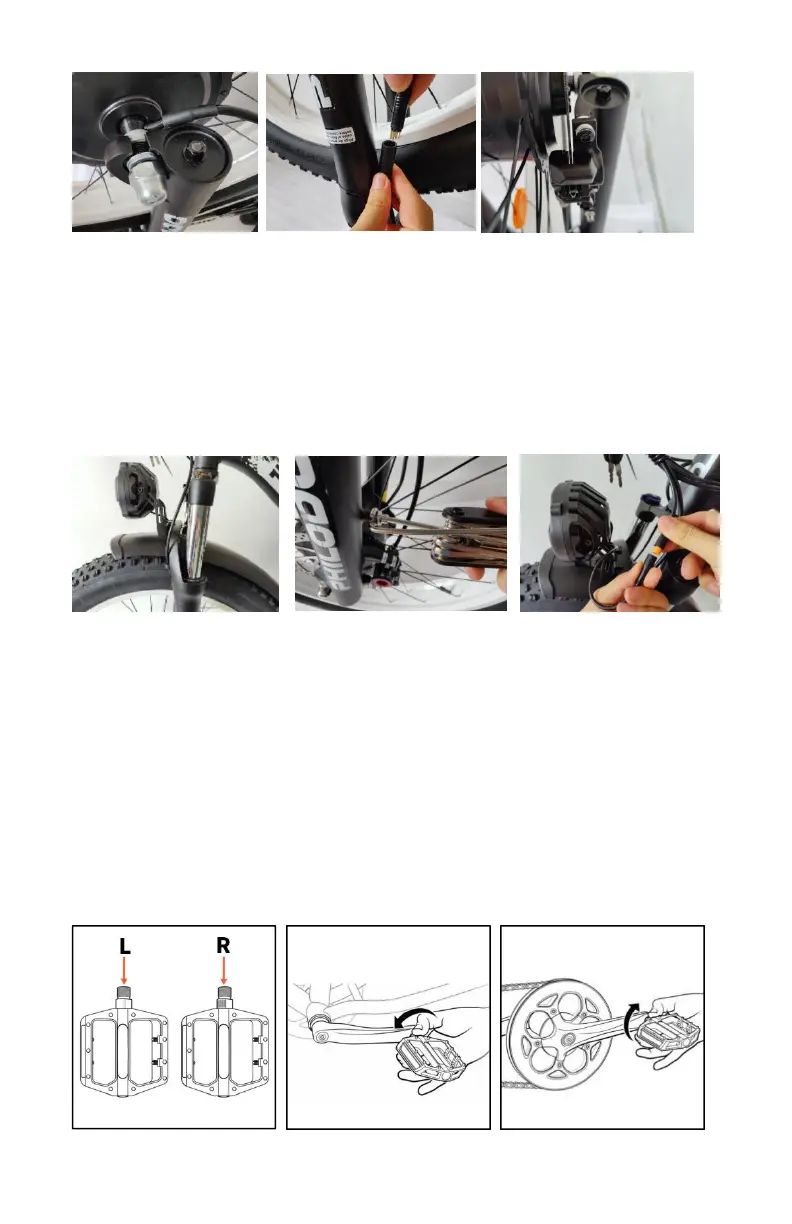

5. Align the arrows on the cable of front motor. Then connect it.
6. The disc rotor should not touch the brake pads. Roll the front
wheel. If the disc rotor makes a metal friction sound, you need to
check that the front wheel is installed correctly.
Headlight
1. Make sure the front fork brace is at the front of the bike, not at
the back.
2. Place the headlight and the fender at a right position, then
tighten the bolt and the nut. The headlight can be adjusted up
and down to change the illumination angle.
3. Align the arrows on the cable of the headlight. Then connect it.
4.
The horn is integrated into the headlight.
Pedals
