LFeLi-48100S model:

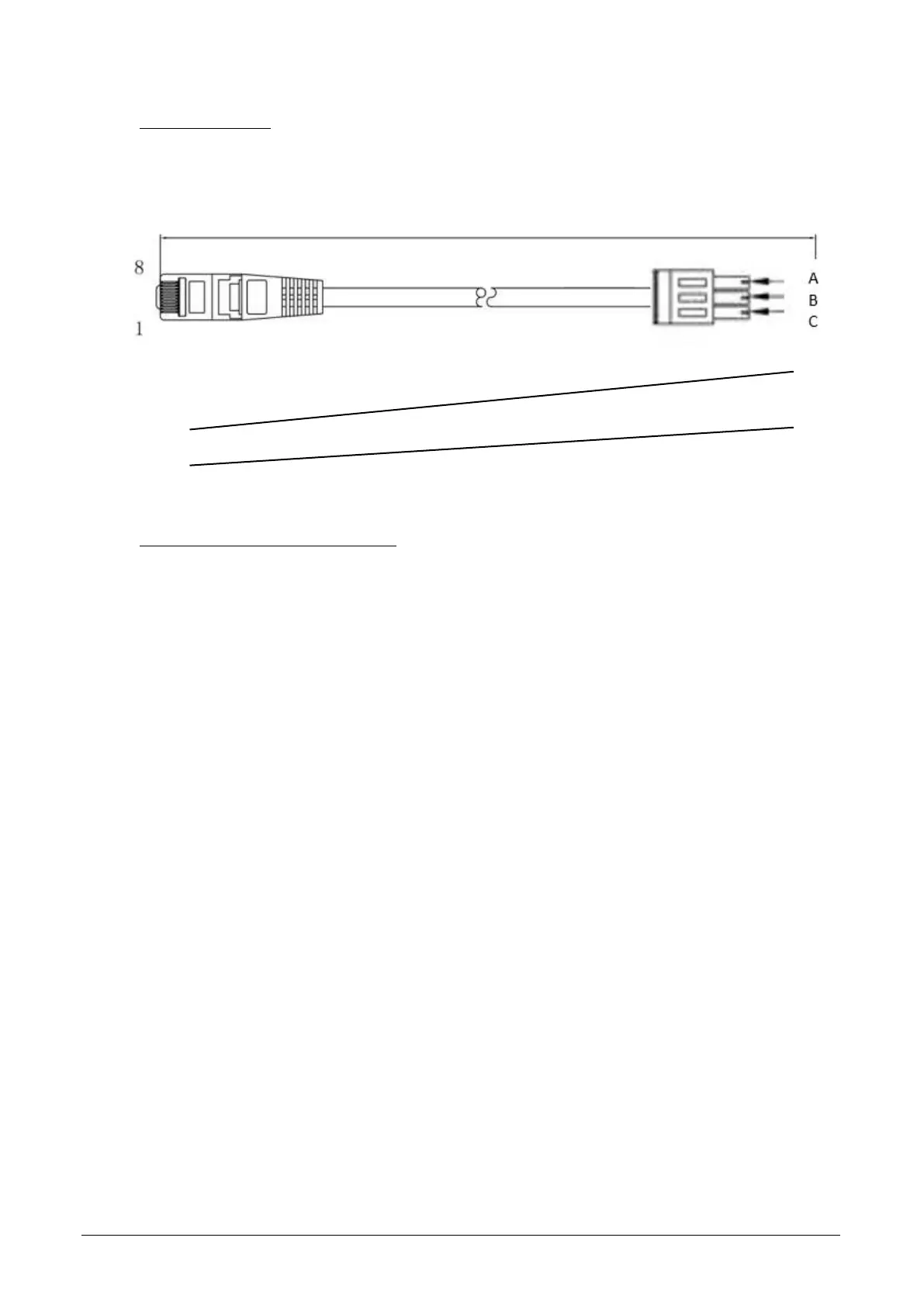

• Battery communication cable: This cable is supplied with the battery, however it requires the battery side
terminal block to be connected as shown below.
Any-Grid PSW-H side Leoch battery side (48100S)
Make sure the cable is correctly oriented between the battery and PSW-H unit when installing below.
WARNING: Do not use the inverter cable included with you Leoch batteries. Wiring your own cable
according to the pinout above must be done at your own risk. Any damage to the PSW-H or battery due
to incorrect wiring, cable orientation or use of an incorrect cable is not covered by any warranty.
• One of the battery module(s) defined in “1.0 Introduction” of this manual.
Pin 8 A
Pin 7
Pin 6
Pin 5 B
Pin 4
Pin 3
Pin 2
Pin 1 C
