www.phocos.com 1 | P a g e
1.0 Introduction
This guide outlines the recommended settings and establishing communication for operation of one or more Any-
Grid™ PSW-H-5kW-230/48V, PSW-H-5kW-120/48V or PSW-H-6.5kW-120/48V hybrid inverter chargers with Hubble
AM-2, X-100 and X-101 battery units, referred to in this guide as “battery units”. PSW-H-3KW-230/24V and PSW-H-
3KW-120/24V are only compatible with the Hubble AM-4 battery units. All connected batteries must be of the same
model name.
Note that the charge/discharge settings are automatically negotiated with the battery if this guide is used and do
not need to be changed.
The Any-Grid must be installed according to the Any-Grid PSW-H “User and Installation Manual” included with every
Any-Grid PSW-H unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be
connected to the battery units according to the Hubble installation manual at the appropriate step mentioned in the
chapter 5.0 of this manual.
WARNING: Be sure to read and respect the warnings in the installation manuals of the Any-Grid, the battery
units and any other connected equipment. The installation must be conducted by a trained professional.
2.0 Requirements
The following is required to proceed with this guide:
• 48 Vdc battery: Any-Grid PSW-H-5KW-230/48V, PSW-H-5KW-120/48V or PSW-H-6.5KW-120/48V
or
24 Vdc battery: Any-Grid PSW-H-3KW-230/24V and PSW-H-3KW-120/24V
• Hubble Cloudlink device

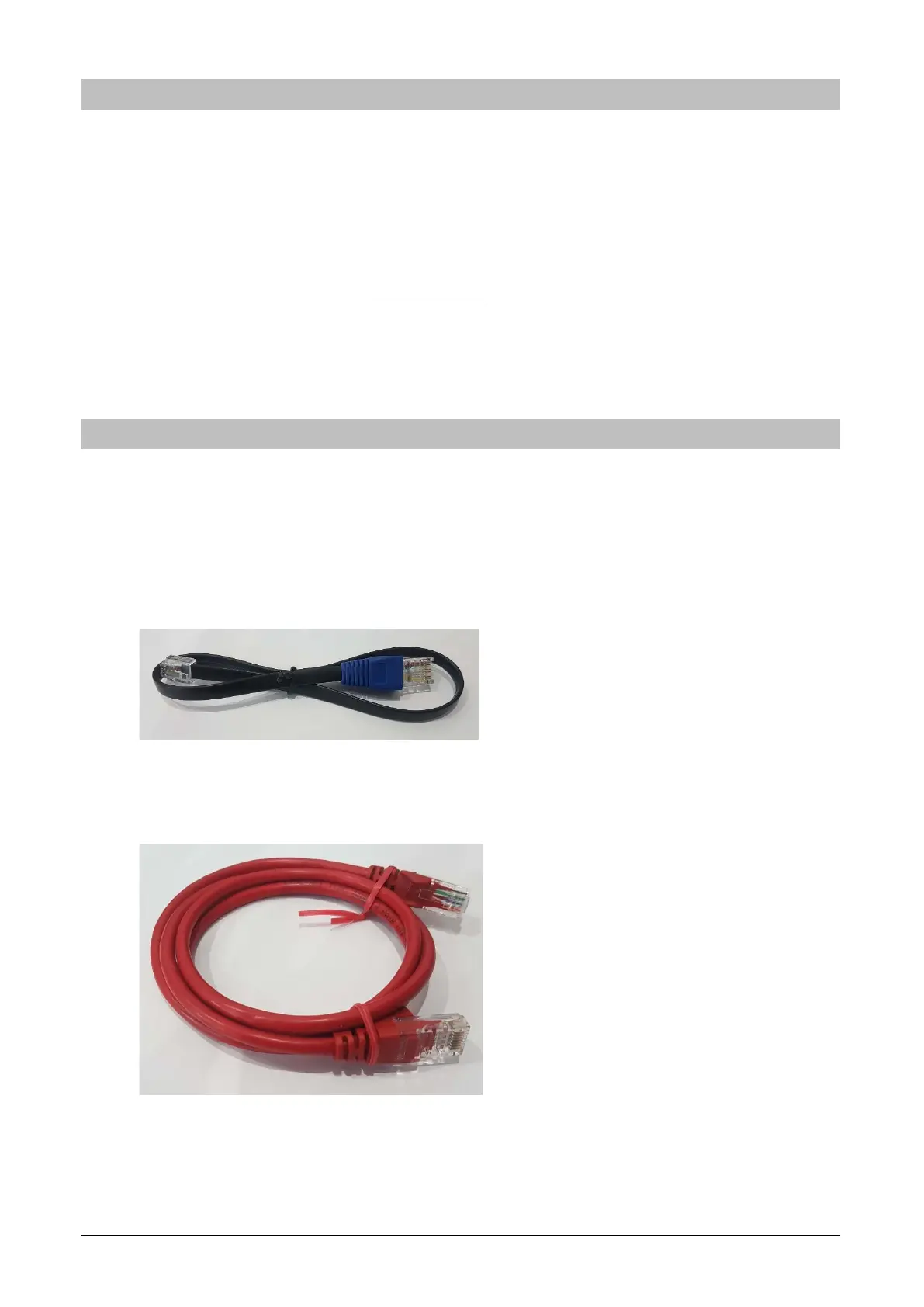

• Hubble Cloudlink communication cable included with Cloudlink device (6-pin RJ-12 to 8-pin RJ-45
connectors):
WARNING: Make sure to use the correct battery to Any-Grid cable. Any damage to the PSW-H or
battery due to incorrect wiring, cable orientation or use of an incorrect cable is not covered by any
warranty.
• Hubble CAN Bus cable included with Cloudlink device:
• Hubble battery unit(s)
