7.7.1 Structure

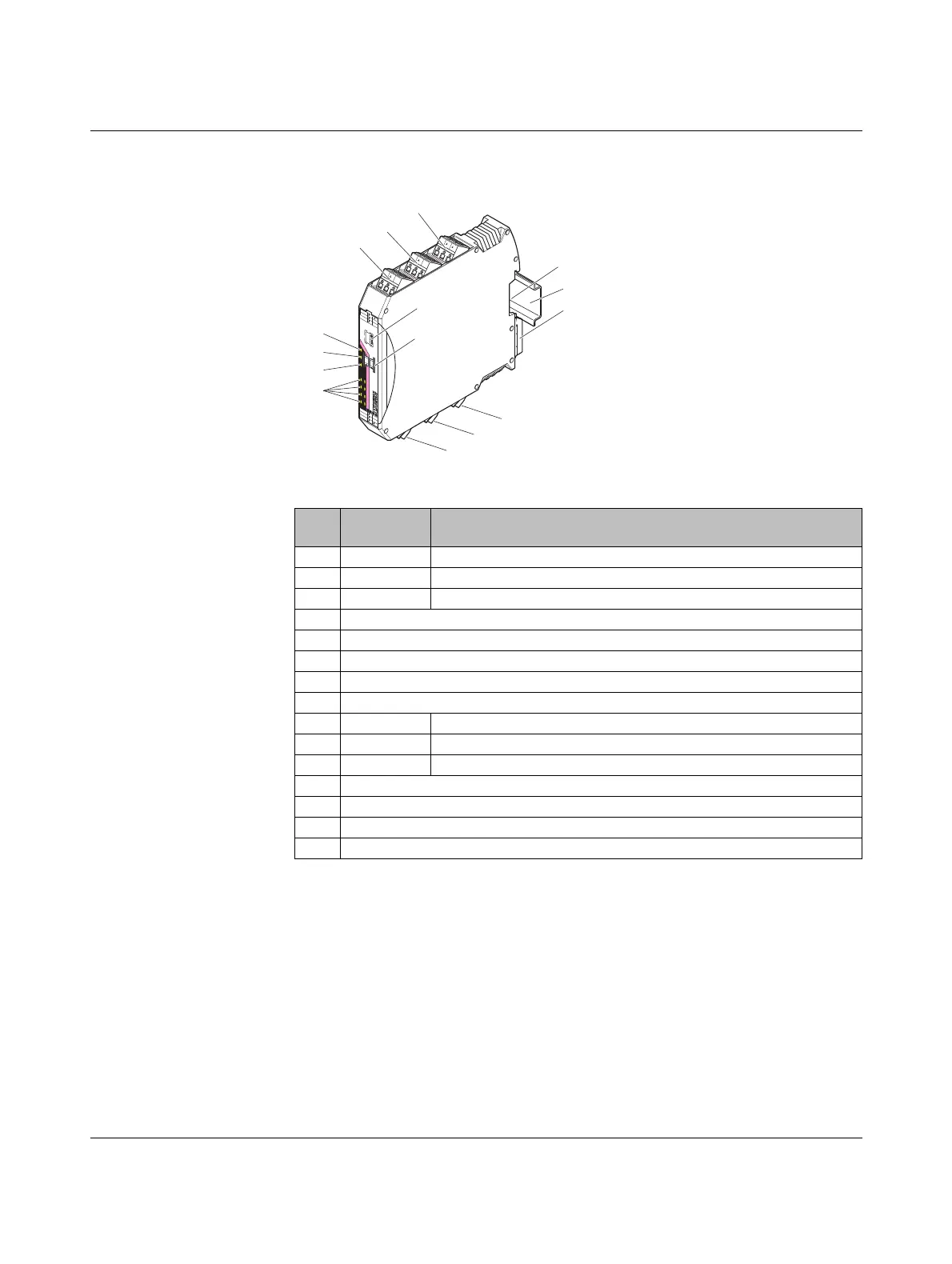

Figure 7-29 RAD-DO8-IFS structure
Item Ter mi na l
block
Designation
1 3.1/3.2/3.3 Transistor outputs 3 + 4
2 2.1/2.2/2.3 Transistor outputs 1 + 2
3 1.1/1.2/1.3 Supply voltage for outputs 1 ... 4
4 DIP switches for setting the output behavior of the transistor outputs (hold/reset)
5 White thumbwheel for setting the I/O MAP address
6 Connection option for DIN rail connector
7DIN rail
8 Metal foot catch for DIN rail fixing
9 4.1/4.2/4.3 Transistor outputs 5 + 6
10 5.1/5.2/5.3 Transistor outputs 7 + 8
11 6.1/6.2/6.3 Supply voltage for outputs 5 ... 8
12 Status LEDs of transistor outputs DO1 ... DO8
13 ERR status LED, red (communication error)
14 DAT status LED, green (bus communication)
15 PWR status LED, green (supply voltage)
