Phoenix Model BULLDOG - Installing the Horizontal Stabilizer

Instruction Manual BULLDOG
4
30 31 32
33 34 35
36
37 38 39
40 41

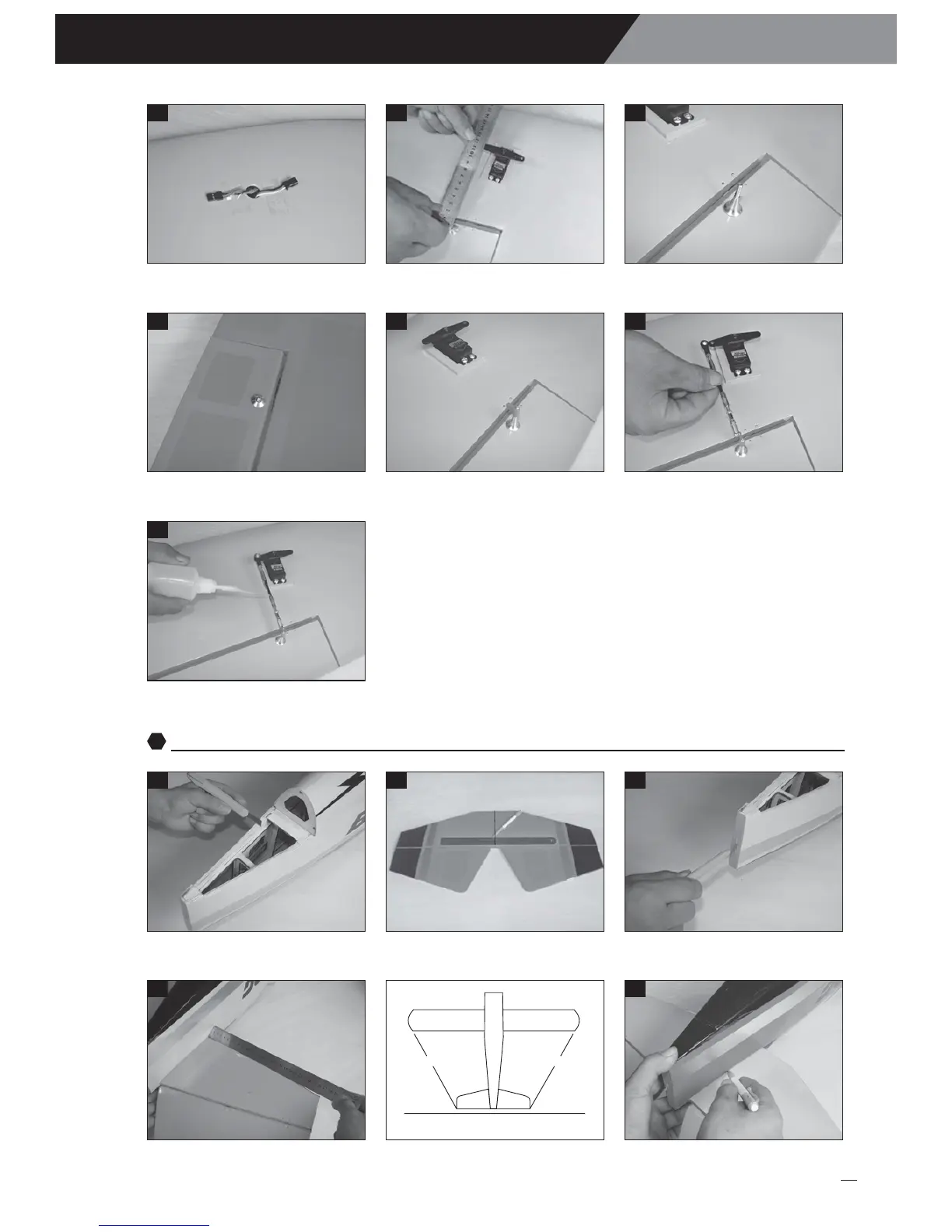

Installing the horizontal stabilizer:
3
A=A-1
A=A-1
A-1
A
Mark the hole of the control horn onto
the bottom of the aileron.
Tape the servo lead onto the wing. Install the control horn onto the aileron.
Secure the control horn.Secure the control horn.
Glue the carbon rod using the C.A glue.
Install the connector rod to the control horn.
Make the center line onto the horizontal.
Remove the covering from the rear of the
fuselage.
Make the slot from the fuselage for rudder
hinge.
Check the horizontal and the wing as shows.Insert the horizontal to the fuselage.
Mark the shape of the fuselage onto the
bottom of the horizontal.
