8. Daisy Chain Interface - Connection and Operation
Several Quattro units can be chained to provide larger room coverage. One of the Quattro’s
need to be connected to the communication line (or computer for that matter). Another
Quattro will be connected to Quattro number one; a third Quattro can be connected to
Quattro number two; and so on. There is practically no limit to the number of Quattro’s
that can be chained.
In this chain, we refer to the Quattro higher in hierarchy as a Master and the lower in
hierarchy as a Slave unit. Any Quattro can be a Master, since the Master connection is
provided with the basic unit and is included on all Quattro’s via the primary interface panel. In
order for a Quattro to become a Slave unit it needs to have a Daisy Chain interface.
Connecting a Slave unit to a Master is done using a unique cable supplied with the Daisy
Chain interface.

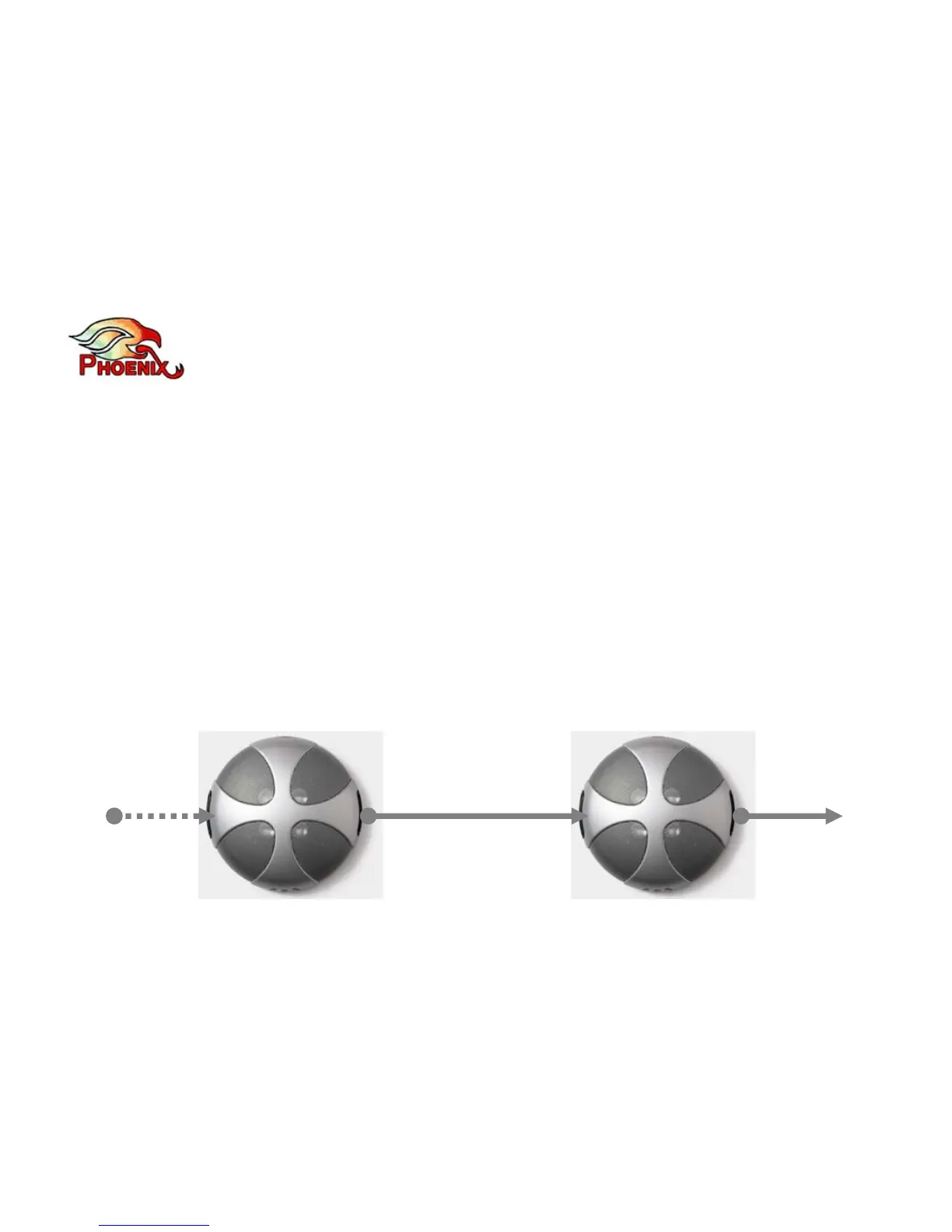

PSTN or Other
Network
Connection
Unique Cable
