PHONIC CORPORATION
MQ 3229

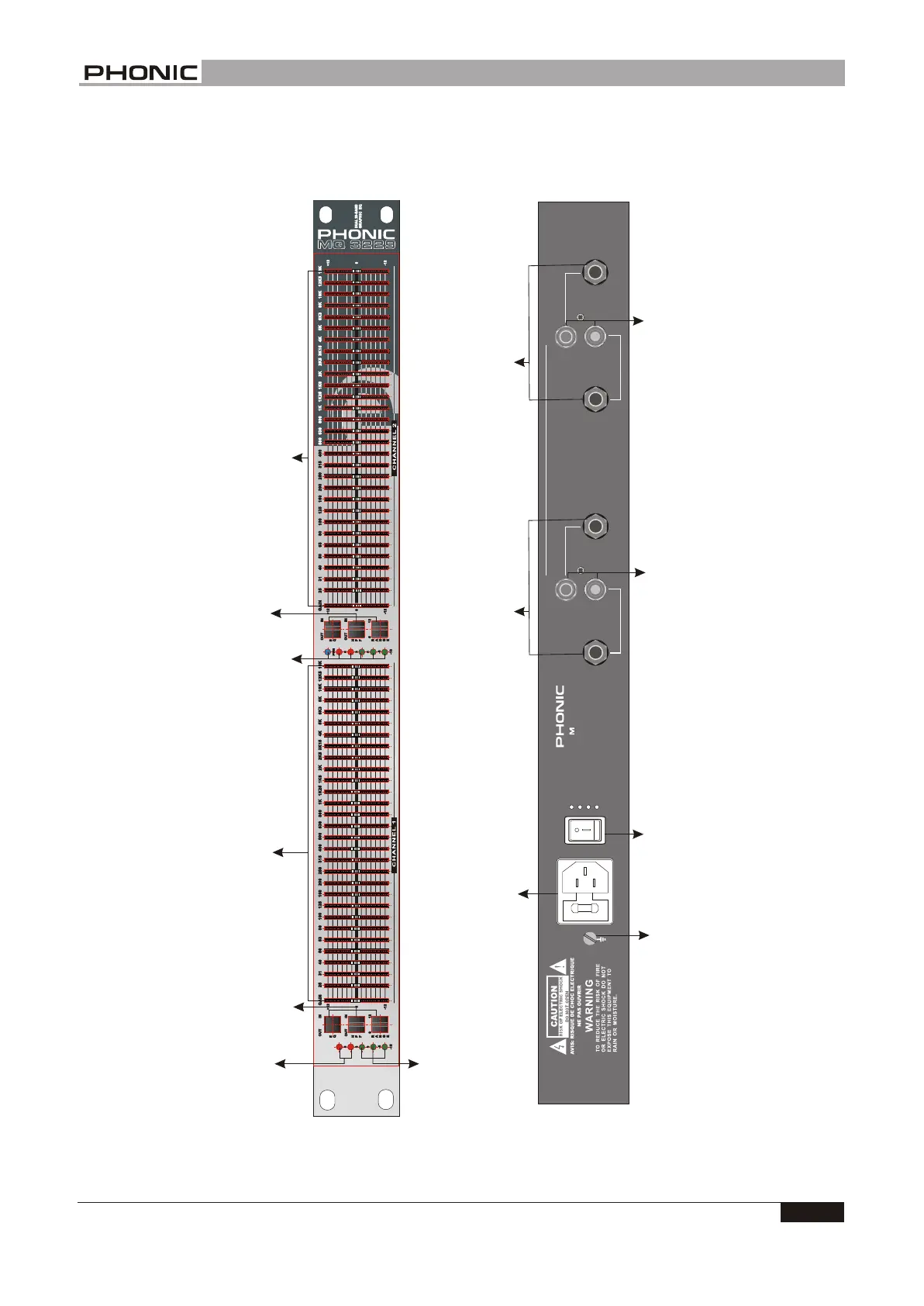

PANEL LAYOUT
POWER
OUTPUT OUTPUT
INPUT INPUT
RIGHT
LEFT
100 VAC ~ 60Hz 120 VAC ~ 60Hz 230 VAC ~ 50Hz 240 VAC ~ 50Hz
100~120 VAC FUSE 500mA 220~240 VAC FUSE T315mA
Q 3229
GND 615-10002-130-0
POWER SW
210-03102-002-0
2P RCA JACK
211-00021-052-0
2P RCA JACK
211-00021-052-0
6D3/J
211-01601-300-0
6D3/J
211-01601-300-0
AC JACK
211-12300-040-0
FUSE: 280-50161-000-0
LED 100-00010-030-0
LED
100-00010-030-0
SLD/SW
541-20240-030-0
SQ VR
541-20230-030-0
SQ VR
541-20230-030-0
SLD/SW
541-20240-030-0
POWER LED
100-00070-030-0
MQ 3229 SERVICE MANUAL
