Wired Setup

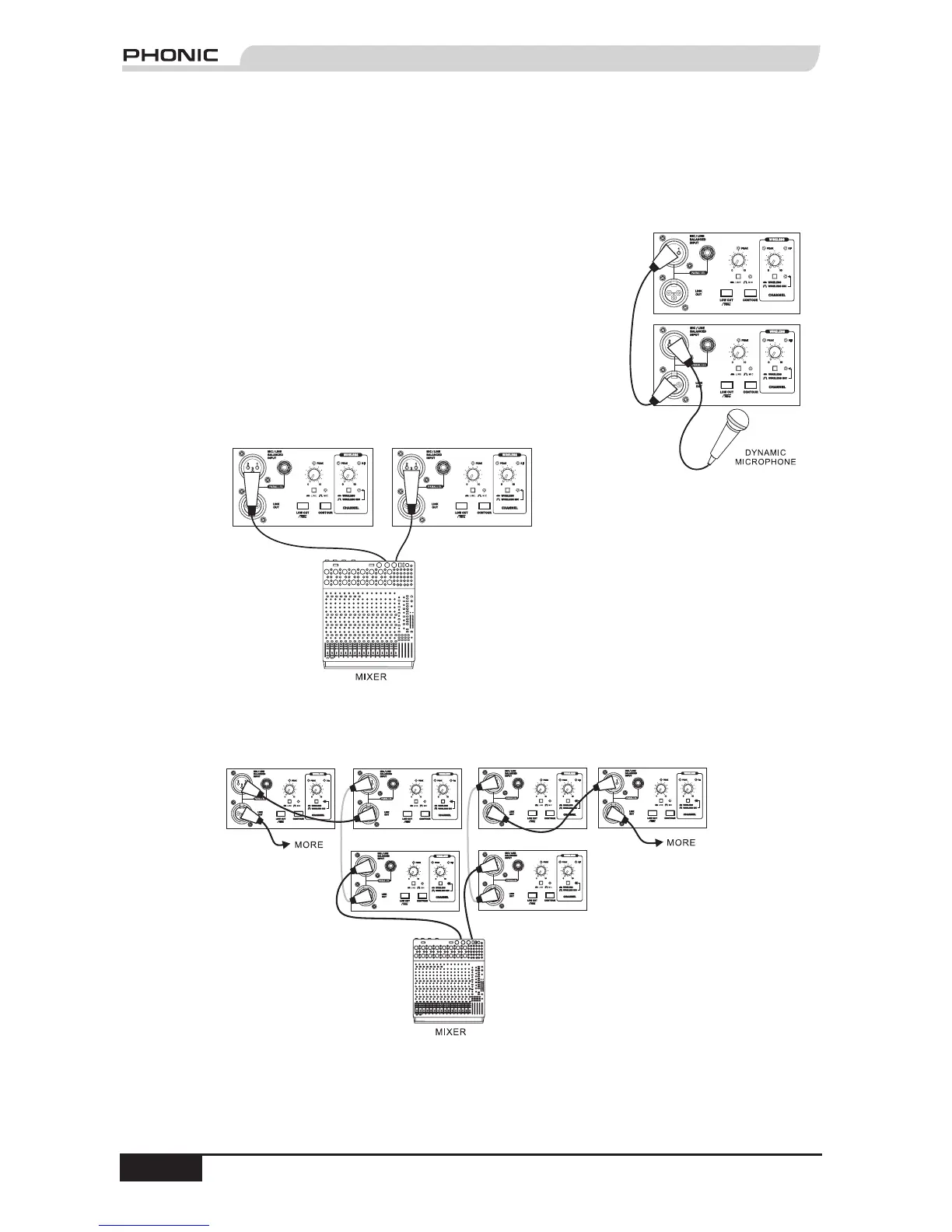

1) Dynamic microphone with two Performer active speakers daisy
chained together using the LINK OUT.
Note: The Performer active speaker does not have phantom power, so you will
not be able to use it in conjunction with a condenser microphone unless the
microphone has its own power supply.
2) Mixer with stereo left and right mic-level output divided to left- and
right-side speakers.
Note: You must use the 1/4" phone connectors on the Performer active speaker
if you want to use a line-level input.
3) Mixer with stereo left and right mic-level output divided to left- and right-side speakers. The Performer
active speakers are daisy chained together using the LINK OUT.
HOOKUP DIAGRAMS
Due to the ability to use Performer active speakers for wired or wireless applications, there are many possible
congurations. Here we address the most probably applications for your Performer active speaker.
