Wireless Setup

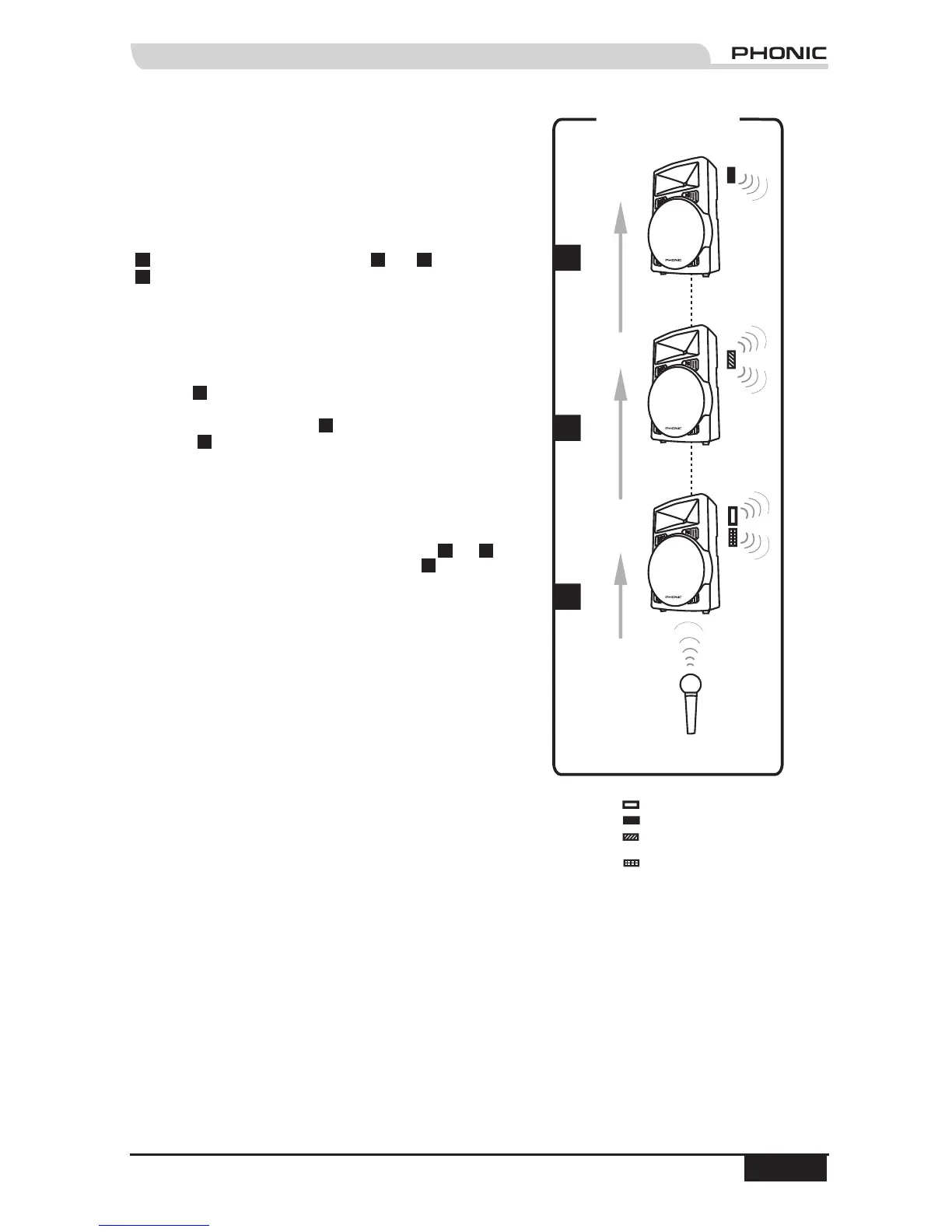

4) System One:
This conguration uses a Phonic wireless microphone
with three Performer active speakers. You can use a
Phonic UHF or VHF wireless microphone with wireless
module to transmit to the speakers. Set the WIRELESS/
WIRELESS MIC Switch out (up) on the back of Speaker
1
, and set it in (down) on Speakers
2
and
3
. Speaker
1
is tted with two wireless modules installed in the
two compartments on the top of the speaker. One
compartment has the matched-frequency wireless
module for the UHF or VHF wireless microphone. The
other compartment is tted with a Wireless Transmitter
Module (WM 30) for re-transmitting the source signal
to other wireless-enabled Performer active speakers.
Speaker
2
is tted with a Wireless Transmitter/Receiver
Module (WM 50) for receiving the source signal
transmission from Speaker
1
and re-transmitting it to
Speaker
3
, which is tted with a Wireless Receiver
Module (WM 40). In this way you have a completely
wireless system with all the speakers receiving the same
signal from the wireless microphone. (To install wireless
modules please refer to the instructions on page 15.)
Note: The Wireless Transmitter modules (WM 30 and WM 50)
have a range of up to 100 feet (30 meters). If Speakers
2
and
3
are both within that range of distance from Speaker
1
, then they
only need to be tted with a Wireless Receiver Module (WM 40).
