12. CONNECTION OF CENTRAL LOCKS (with optional module 09114)

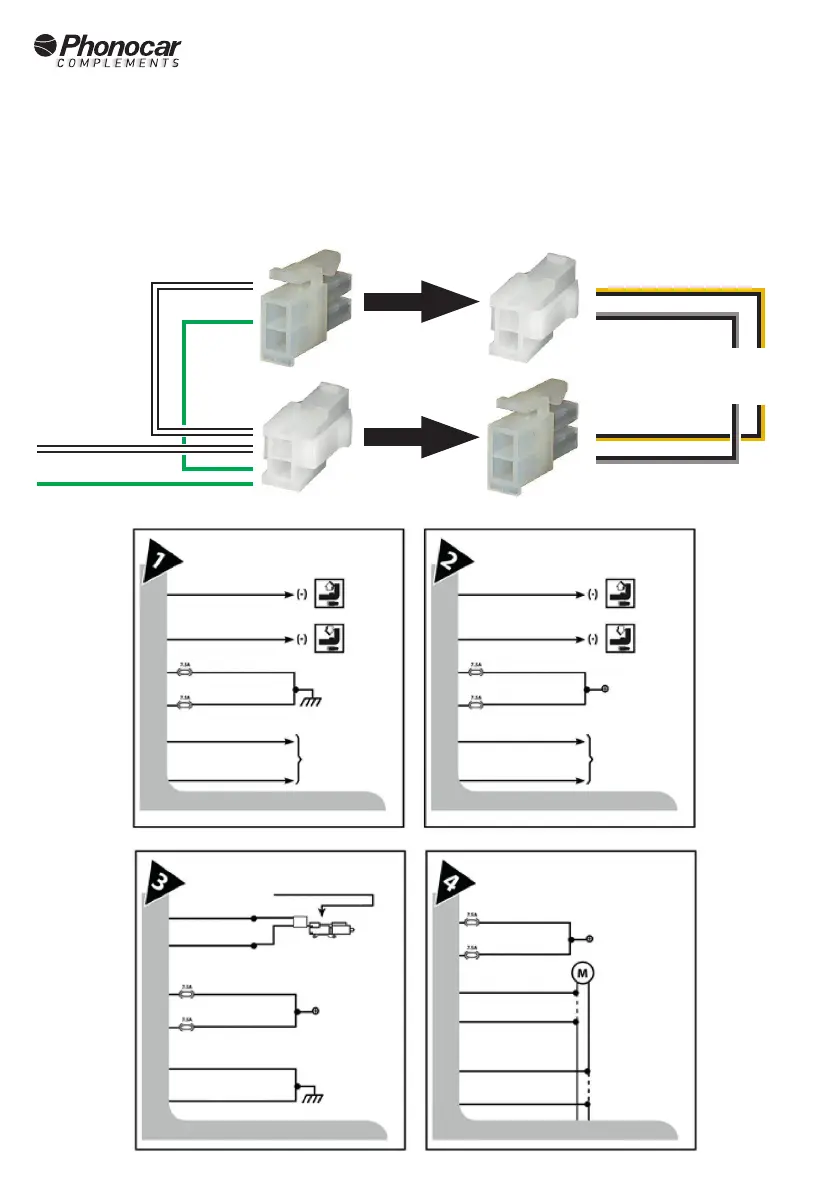

To control the vehicle's central locking system, use module 09114, connecting it to the caravan alarm wiring as shown in the diagram below.
Make the necessary connections between module 09114 and the vehicle system according to the conguration of the central locking
systems as shown in the diagrams below. The vehicle diagrams, with the relative indications, are available at:
https://automotive.professionalarea.vodafone.com
orange
orange
orange-white
purple-white
ADDITIONAL ENGINE
orange
purple
purple
purple
yellow-black
yellow-black
yellow-black
grey-black
grey-black
grey-black
DO NOT USE
ISOLATE
DO NOT USE
ISOLATE
DOOR ENGINE
(MOUNTED AS
STANDARD)
TO THE CONTROL UNIT
OF THE ORIGINAL LOCK
OR TO THE
CONTROL BUTTON
VEHICLES WITH NEGATIVE CONTROL LOCKING
VEHICLES WITHOUT DRIVER'S SIDE DOOR LOCK DIRECT CONTROL ORIGINAL DOOR MOTOR
VEHICLES WITH POSITIVE CONTROL LOCKING
orange-white
orange-white
orange
grey-black
purple
yellow-black
orange-white
purple-white
purple-white
purple-white
