2.3 First Start-up

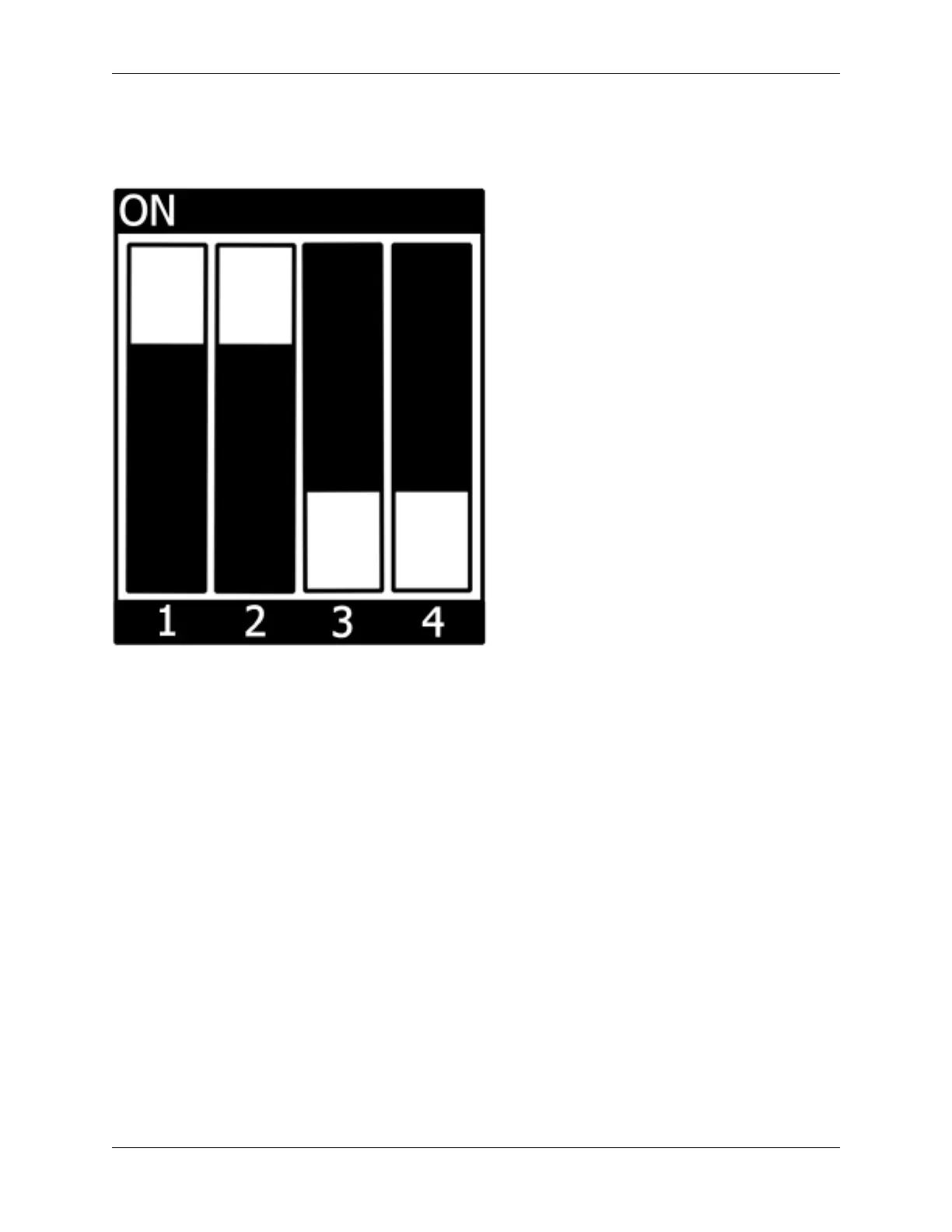

• To boot from an SD card, the bootmode switch (S3) needs to be set to the following position:
• Insert the SD card
• Connect the targets debug console with your host. Use UART1 console on PEB-EVAL-01 for
phyBOARD-Segin and X-37 USB-C debug for phyBOARD-Nash.
• Power up the board
• Open serial/usb port with 115200 baud and 8N1 (you should see u-boot/linux start on the console
